Pathology and pathogenesis of peptic ulcer



Pathology and pathogenesis of peptic ulcer

  • Ulcers are defined as a breach in the mucosa of the alimentary tract, which extends through the muscularis mucosa into the submucosa or deeper.

    ( An erosion differs from an ulcer in being partial thickness mucosal defect).

  • Peptic ulcers are chronic most often solitary, lesions that occur in any portion of gastrointestinal tract exposed to the aggressive action of acid-peptic juices.

Clinical presentation

Clinical presentation:

  • Remitting, relapsing lesion

  • Most often diagnosed in middle aged to older adults but may first become evident in young adult life.

  • Epigastric burning or aching pain.

  • Pain worse at night and 1 to 3 hours after meal.

  • Nausea, vomiting, bloating , belching and weight loss occur.

  • Complication: Anaemia, hemorrhage, perforation, obstruction. Malignant formation is rare and related to underlying gastritis.

Sites of peptic ulcer

Sites of peptic ulcer:

  • Duodenum: First portion ( few cms from the pyloric ring). Anterior wall is more often affected.

  • Stomach: Usually antrum. Lesser curvature (common) . Anterior and posterior wall and greater curvature (less common).

  • In the margins of a gastroenterostomy (stomal ulcer)

  • In the duodenum, stomach or jejunum of patients with Zollinger-Ellison syndrome.

  • Within or adjacent to a Meckel’s diverticulum that contains ectopic gastric mucosa.

Pathogenesis of peptic ulcer see diagram

Pathogenesis of peptic ulcer: ( see diagram )

Peptic ulcers are produced by an imbalance between the gastro-duodenal mucosal defense mechanisms and damaging forces of gastric acid and pepsin, combined with superimposed injury from environmental or immunologic agents.

Role of h pylori infection in the pathogenesis of peptic ulcer

Role ofH. Pylori infection in the pathogenesis of peptic ulcer:

H. pylori infection is present in almost all patients with duodenal ulcers and 70% cases with gastric ulcers.

Duodenal ulcers - Usually associated with gastritis confined to the antrum.

Gastric ulcers - Usually associated with pangastritis.


  • H. pylori secretes urease (generates ammonia), protease (breaks down glycoprotein in the gastric mucus) or phospholipases.

  • Bacterial lipopolysaccharide attracts inflammmatory cells to the mucosa. Neutrophils release myeloperoxide.

  • A bacterial platelet-activating factor promotes thrombotic occlusion of surface capillaries.

  • Mucosal damage allows leakage of tissue nutrients in the surface microenvironment , sustaining the bacillus.

H pylori infection in peptic ulceration continued

H. Pylori infection in peptic ulceration: (continued)

  • Damage of the protective mucosal layer. The epithelial cells are exposed to the damaging effect of acid-peptic digestion.

  • Inflammation of the gastric mucosa.

  • Chronically inflamed mucosa more susceptible to acid- peptic injury and prone to peptic ulceration.

  • Ulcers occur at sites of chronic inflammation .

    Eg - Antrum

    - Junction of antral and body- fundic mucosa (division between the inflamed antral mucosa and normal acid secreting mucosa).

  • Pangastritis - When there is extensive gastritis, the ulcers are more proximally situated. In elderly patients gastric ulcers are more proximally situated as there is proximal migration of the antral-body mucosal junction.

Other factors causing peptic ulcer

Other factors causing peptic ulcer:

Peptic ulcer caused due to high gastrin level and excess acidproduction. Gastrinoma may cause multiple peptic ulceration as in Zollinger Ellison syndrome. There is increased parietal cell mass.

Peptic ulcers caused due to impaired mucosal defense . The gastric acid and pepsin levels are normal and no H.pylori are present.

  • Chronic use of NSAIDs (aspirin) causes suppression of mucosal prostaglandin and direct irritative topical effect.

  • Repeated use of corticosteroid in high dose.

  • Cigarette smoking impair healing and favour recurrences.

  • Alcoholic cirrhosis.

  • Personality, psychological stress, ischemia.

Gross features

Gross features:

  • Gastric ulcers are usually single well delineated lesion.

  • Shape: Round, oval or linear.

  • Size: Usually less than 2cm in diameter.

    Lesions less than 0.3 cm are likely to be shallow erosions.

    Giant ulcers are usually greater than 3cm in diameter.

    May also reach upto 10cm (particularly on lesser curvature ).

    Mortality rate is higher in these patients.

    Size does not differentiate benign from malignant ulcer.

    Some carcinomatous ulcers are less than 4cm and 10%

    of benign ulcers are more than 4cm .

Gross features1

Gross features:


  • Usually level with the surrounding mucosa or slightly raised.

  • The proximal margin has a overhanging border and distal margin has a sloping border.

  • Converging mucosal folds extend to its margin.

  • Heaping up of of margin is rare in benign ulcer .

  • Prominent marginal nodularity about the ulcer should suggest the presence of carcinoma .

  • Fungal infection can also give a nodular appearance of the ulcer margin

Gross features2

Gross features:

Depth of penetration :

  • Superficial ulcer penetrate the mucosa into the muscularis mucosae.

  • Deeply excavated ulcers having their bases on the muscularis propria.

  • Entire wall is penetrated and the ulcer base is adherant

    to the pancreas, omental fat or liver. Free perforation into peritoneal cavity may occur.

Gross features3

Gross features:

Base of ulcer:

  • Smooth and clean (peptic digestion of any exudate).

  • Thrombosed or patent blood vessels are evident at

    the base.

    Surrounding gastric mucosa:

  • Puckering of surrounding mucosa. The mucosal fold

    radiates from the crater in a spoke- like fashion.

  • Edematous and reddened due to gastritis.

    Gastric wall:

    Scarring involve the entire thickness . Subserosal

    fibrosis and inflammation present.

    Regional lymphnodes are enlarged.

Biopsy of peptic ulcer

Biopsy of peptic ulcer:

  • Biopsy is necessary to distinguish between benign and malignant ulcers.

  • Biopsy should be taken from the ulcer edge, at least from each quadrant.

  • Upto 10-12 biopsies may be taken to exclude cancer.

  • Repeat endoscopy may be necessary if biopsies are negative and there is high index of suspicion.

Microscopic features

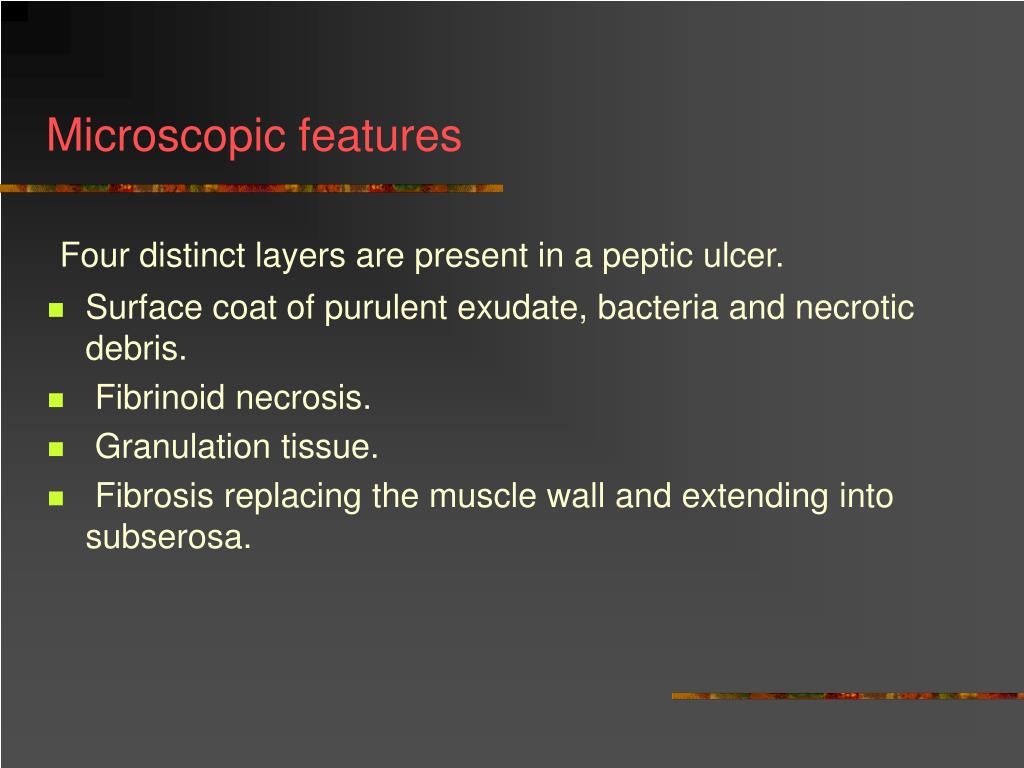

Microscopic features

Four distinct layers are present in a peptic ulcer.

  • Surface coat of purulent exudate, bacteria and necrotic debris.

  • Fibrinoid necrosis.

  • Granulation tissue.

  • Fibrosis replacing the muscle wall and extending into subserosa.

Microscopic features1

Microscopic features:

  • Thickening of vessels caused by subendothelial fibrous


  • Hypertrophy of nerve bundles.

  • Mucosa surrounding the ulcer is pyloric type.

  • Necrotic surface shows superimposed infection by candida albicans.

  • In case of H. pylori infection following features are noted

    at the ulcer edge : loss of apical portion of cells,

    dropout of epithelial cells,

    erosion, cellular tufts.

Microscopic features2

Microscopic features:

Healing process-

  • Regenerating epithelium grows over the over the surface, (any epithelium growing above an area where muscularis mucosa is interrupted is regarded as regenerating).

  • Intestinal metaplasia

  • May contain chief and parietal cells (ulcer in the fundus area)

  • Gastritis remains after ulcer has healed. (D/D In erosive gastritis & stress ulcer, gastritis in adjacent mucosa is generally absent)

    Cellular atypia may be present in ulcers caused by arterial infusion chemotherapy.




  • Eradication of H.pylori (proton pump inhibitor in combination with antibiotics)

  • Acid suppression- Antacid & or H2 blockers

  • Cessation of NSAIDS.

    Criteria for reduction of the size of ulcer crater.

    Reduction of crater size by 50% over 6-8 weeks of intensive medical management.


  • Subtotal gastric resection without vagotomy and drainage (gastroenterostomy or pyloroplasty)

  • Truncal vagotomy plus antrectomy
