Presentation Transcript

Yesterday l.jpg
Yesterday

  • waaay back last lectuer we discussed:

    • What is Inheritance?

    • Base Class Access Control

    • Protected Members

    • Inheriting Multiple base classes

    • Constructors & Destructors in Inheritance

    • Different types of Access

    • A word on Style


One hour before i can go home l.jpg
One Hour Before I can go home!

  • Until then I’ll be talking about:

    • Template Functions

    • Template Classes

    • The Standard Template Library

    • String Class

    • Documentation

    • Coursework2


Standard template library l.jpg
Standard Template Library

  • STL was one of the major aims during standardisation

  • It gives us many general purpose classes and functions

  • Implements popular algorithms and data structures

  • Because they are templates, the classes and functions can be used with any data type – huge flexibility.


Templates l.jpg
Templates

  • Pretty contemporary feature.

  • Supported by all modern C++ compilers.

  • Can be used to create generic functions and classes:

    • take the type of data they are acting on as a parameter

    • We can have one function or class that works with several types of data

    • No need to recode specific versions for each data type


Function templates l.jpg
Function Templates

  • If functions are identical apart from the type of data they are acting on you should have a template.

  • A bubble-sort for example is identical whether you are using integers or floats.

  • So we could create a generic function that contains an algorithm but is independent of any data.

  • Essentially we are making functions that can overload themselves.


So how do i write one l.jpg
So how do I write one?

template <class type> ret-type func-name(parameters)

{

//body of the code

}

  • The class type is just a placeholder

  • It can represent anything – an int, float, char, etc.

  • It can also represent a user defined type, a class, anything.

A placeholder for the type of data we will use

Function names and return types

keyword

Takes in a list of function parameters just like a normal function.


I still don t get it l.jpg

OUTPUT:

first is now 7

second is now 5

OUTPUT:

first is now 7.77

second is now 5.55

OUTPUT:

first is now J

second is now G

I still don’t get it…

template <class X> void swap(X &a, X &b)

{

X temp;

temp = a;

a = b;

b = temp;

}

int main()

{

int first = 7;

int second = 5;

swap(first, second);

cout << “first is now : “ << first << endl;

cout << “second is now : “ << second << endl;

}

float first = 5.55;

float second = 7.77;

char first = ‘J’;

char second = ‘G’;


Bubble sorted for e s and whizz l.jpg
Bubble-sorted for e’s and whizz

template <class X> void bubbleSort(X *elements, int size){

X temp;

for(int i=1; i<size; i++)

for(j=size-1; j>=i; j--)

if (elements[j-1] > elements[j]) {

temp = elements[j-1];

elements[j-1] = elements[j];

elements[j] = temp;

}

}

int main() {

int intArray = {7, 3, 9, 4, 12, 2};

double doubleArray = {4.5, 7.77, 5.55, 4.123};

bubbleSort(intArray, 6);

bubbleSort(doubleArray, 4);

}


Added extras l.jpg
Added Extras

  • We can use more than one class type when we setup a template:

    template <class X, class Y> void show(X &a, Y &b)

  • We can overload templates just like we would any other function - The compiler will work out which template you are trying to use.

  • We can also send normal parameters – not just the types we specified at the start of the template declaration.

  • You can also create specialisations of templates that have slightly different code than your general version, for specific types.


Class templates l.jpg
Class Templates

  • Everything we’ve done for functions above we can also apply to class structures.

  • Hence using the template keyword we can create generic classes too.

    template <class type> class className

    {

    //header for the class

    }

  • To create a specific instance of this class use the form:

    className <type> objectName;


Templates confusing code l.jpg
Templates = Confusing Code

  • We also have to mention that we are in a class template when we are writing the methods for that class.

  • Be careful because this can make your code start to look really confused:

  • Method Syntax:

    template <class type>ret-Type className::func-name(parameters);

    {

    //body of the function

    }

same as a normal Member function


Example template class l.jpg
Example Template Class

template <class X, class Y> class myClass

X first;

Y second;

public:

myClass(X a, Y b) { first = a; second = b; }

void show();

};

template <class X, class Y> void myClass::show()

{

cout << “The first value is : “ << first << endl;

cout << “The second value is : “ << second << endl;

}


Example template class14 l.jpg
Example Template Class

int main() {

myClass<int, double> object1(10, 0.23);

myClass<char, char*> object2(‘J’, “Goulding”);

object1.show();

cout << endl;

object2.show();

}

OUTPUT:

The first value is 10

The second value is 0.23

The first value is J

The second value is Goulding


The power of templates l.jpg
The Power of Templates

  • The template<> construct can be incredibly useful.

  • You can create frameworks that you can apply and reapply to a whole range of programming situations.

  • Once debugged they are a reliable, solid software component. You can re-use them and they’re guaranteed to work.


Back to the stl l.jpg
Back to the STL

  • All this template syntax can seem quite intimidating.

  • However once you get used to them, templates are relatively simple.

  • They are employed in the Standard Template library to offer you off-the-shelf solutions to a variety of programming problems.

  • Hence the whole point of them is to try and make your life easier 


3 different section l.jpg
3 Different Section

  • At the core of the STL are three conceptual items, that allow us to use such things as:

    • vectors

    • maps

    • lists

    • strings

  • These are the foundations of everything in the STL:

containers

algorithms

iterators

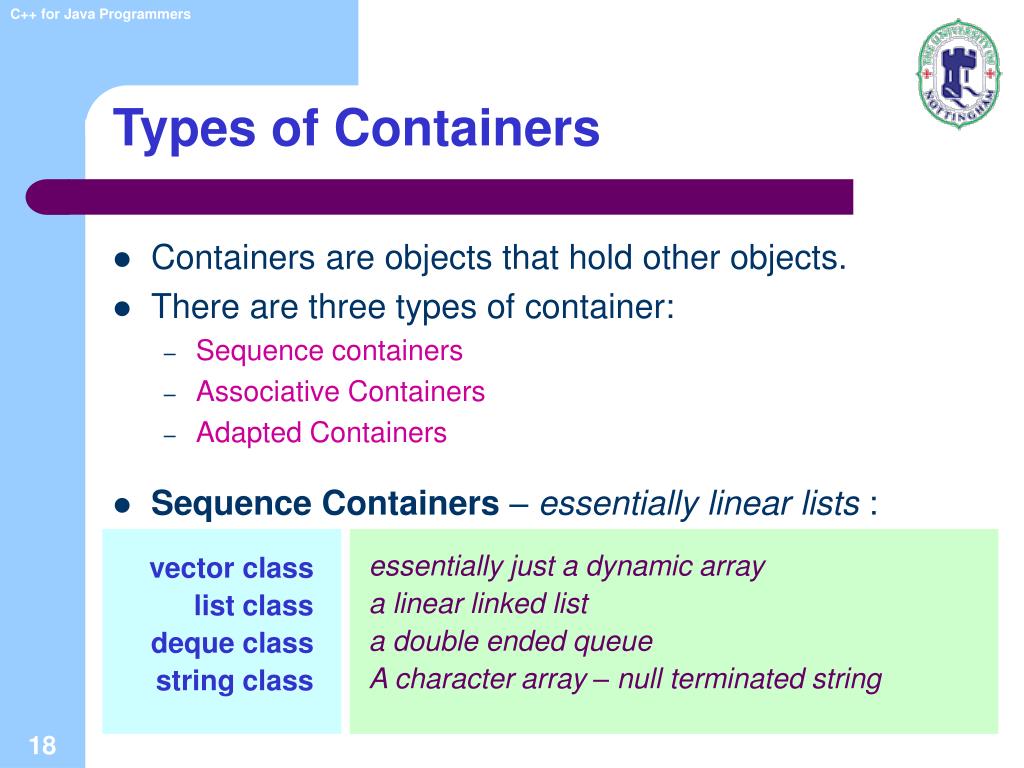

Types of containers l.jpg
Types of Containers

  • Containers are objects that hold other objects.

  • There are three types of container:

    • Sequence containers

    • Associative Containers

    • Adapted Containers

  • Sequence Containers – essentially linear lists :

vector class

list class

deque class

string class

essentially just a dynamic array

a linear linked list

a double ended queue

A character array – null terminated string


Associative containers l.jpg
Associative Containers

  • Associative Containers – allow efficient retrieval of values based on keys.

  • Examples:

  • Every container class defines its own functions that can be applied to itself. However there are also gneral algorithms…

map class

multiset class

provides access to values with unique keys – thus it sores a key/value pair.

optimise for fast associative lookup.


Algorithms l.jpg
Algorithms

  • The STL library provides a collection of generic algorithms <algo.h> which can be applied to a variety of different data structures.

  • STL comes with more than 70 algorithms, ranging from very simple to the extremely complex.

  • Most STL algorithms operate on a sequence of elements, and the algorithms access data via the use of iterators.

  • An example is the algorithm forcount().

    count(i.begin(), i.end(), 2, n);.

This counts the number of occurrences of element 2 in the vector, putting the result in n.


Iterators l.jpg
Iterators

  • An iterator is a kind of generalised pointer that may be used to traverse the elements of a container class.

  • At any point in time an iterator is positioned at exactly one place in a collection, and will remain there until moved.

  • There are five main classes of iterators:

    • input

    • output

    • forward

    • bidirectional

    • random access

most powerful iterator – supported by vector and deque classes


Using the stl l.jpg
Using the STL

  • Internally, the way the STL works and interacts is very sophisticated.

  • ...but you don’t need to. You just the simple interface functions.

  • Just decide on the type of container is best suited to the situation, create it and then use its functions.

  • We will be considering vectors, lists, maps and strings on this course.


Strings l.jpg
Strings

  • Up to now we’ve been doing it the hard way.

  • We know C++ does not have built in support for strings.

  • However standard C++ can handle strings in 2 ways

  • The first we’ve looked at in detail – Null Terminated Strings (often called C-Strings) which are complicated but good for the soul.

  • But the STL also provides us with a string class too.


The string classes l.jpg
The String Classes

This is a more generalised template class from which string is derived.

basic_string

string

wstring

This is the primary class utilised. It supports 8-bit char strings.

similar class but wstring supports wide-character strings.


Are these classes necessary l.jpg
Are these Classes Necessary?

  • We’ve all become masters of the null-terminated string! Why do we need a string class?

  • The reason is to do with what we’ve considered in the last few lectures – operator overloading.

  • The basic operators such as =,+,- and so on cannot be overloaded to be able to handle null-terminated strings. For example, consider the following code:

    char str1[50], str2[50], str3[50]

    str1 = “Gordon”; //can’t do str2 = “the Gopher”; //can’t do

    str1 = str1 + str2; //error


Reasons for strings l.jpg
Reasons for Strings

  • Having to use strcpy and not being able to use operators can make even rudimentary string operation clumsy.

  • So a String class was grudgingly implemented into the STL.

  • This allows strings to be used as fully integrated types, with overloaded operators and simple methods.

  • However Strings also add a safety net to your coding.


Part of the stl l.jpg
Part of the STL

  • As we discussed before STL has containers, algorithms and iterators.

  • the String class is a container. To include the string classes just include the <string> library at the top of your code.

  • 3 constructors:

    string();

    string(const char *str);

    string(const string &str);

Note that the string class is all in lowercase

Takes in a null-terminated string

Takes in another string object as a parameter

all lowercase


Now we can use l.jpg
Now we can use:

= Assignment

+ Concatenation

+= Concatenation Assignment

== Equality

!= Inequality

< Less than

<= Less than or equal

> Greater than

>= Greater than or equal

[ ] Subscripting

<< Output

>> Input

Now we don’t need functions such as strcpy() and strcat()

Just overloading the [ ] operators so they can be used as indexing.


Inside the template library l.jpg
Inside the Template Library

  • Remember the trouble we noted with overloaded methods – the object from the class had to come first.

  • We would potentially have the same problem here.

  • It is solved in the same way - <string> contains non-member functions to overload the operators that are then set as friends in the class.

  • This means we can have: string + string

    string + C-string

    C-string + string


Scooby doo example l.jpg
Scooby-Doo Example

3 Different ways of setting up an object of the string class

string str1 = “Shaggy”;

string str2(“Doo”);

string str3(str2);

str2 = “Scooby” + str3;

str3 = “Scrappy” + str3;

cout << str1 << “ says... *it wasn’t me…* ”;

if (str3<str2) cout << str3 << “comes before “ << str2;

else cout << str2 << “comes before “ << str3;

cout << “Type in your name:”;

cin >> str1;

cout << str1 << “ would have got away with it ”

<< “if it wasn’t for you pesky kids”;

concatenation

comparison

inputting


How long is a string l.jpg
How long is a string?

  • The most important point of this however is that at no point do you define how long your string will be.

  • string objects automatically size and re-size themselves.

  • Hence it is not possible to overrun the end of as string like you can with null terminated strings.

  • Immediately alarm bells should be ringing and “DMA” appearing in neon lights in your head.

  • DMA is being used - its just hidden, like in Java.


Strings are containers l.jpg

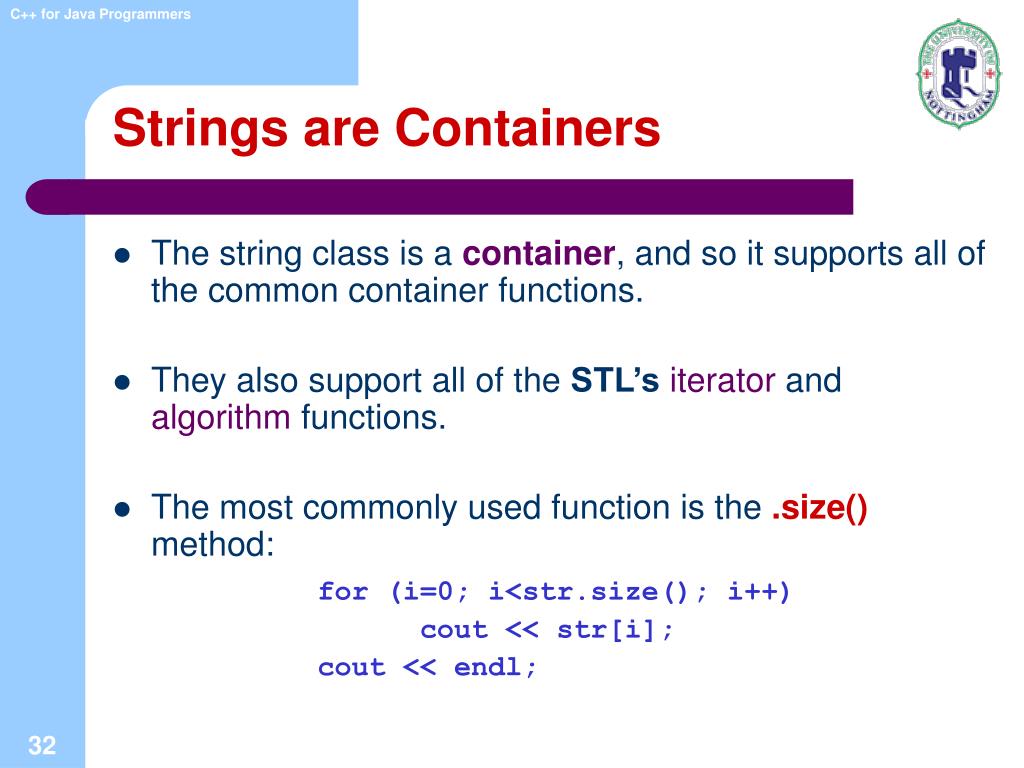

Strings are Containers

  • The string class is a container, and so it supports all of the common container functions.

  • They also support all of the STL’siterator and algorithm functions.

  • The most commonly used function is the .size() method:

    for (i=0; i<str.size(); i++)

    cout << str[i];

    cout << endl;


Dedicated methods l.jpg
Dedicated Methods

  • String is a class, and so naturally, as well as all these overloaded operators, it has all sorts of methods too.

  • Many duplicate what the operators do, but with added functionality.

  • For example the assign method and = do almost identical things. However the method version can assign just a section of a string. E.G.:

    string str1 = “Hello World”;

    string str2;

    str2.assign(str1, 6, 5);

CONTAINS:

World


Substrings l.jpg
Substrings

  • Another capability provided by the class string is substr, which returns the substring of a string.

  • The substring is specified as a starting position and a length as arguments to substr.

    string date = “March 7, 1994”; string year = date.substr(9, 4);

    cout << “Year is “ << Year << endl;

  • If you go over the strings limits these values are just set to the max possible.


Appending l.jpg
Appending

  • Of course we would use + to concatenate a string.

  • However this is just a specific use of the more general append method:

    string &append(const string &str, start, num);

  • The start and num parameters indicate what parts of str should be appended. For example:

    string str1(“Scooby DOO”);

    string str2(“Scrappy”);

    str2.append(str1, 7, 3);

    cout << str2;

OUTPUT:

Scrappy DOO


Inserting l.jpg
Inserting

  • Insert:

    string &insert(position, str, start, num);

  • The start and num parameters indicate what parts of str should be taken, to insert at place position in the string.

    string str1(“Scooby DOO”);

    string str2(“Scrappy”);

    str2.insert(2, str1, 7, 3);

    cout << str2;

OUTPUT:

ScDOOrappy


Replacing erasing l.jpg
Replacing & Erasing

  • The replace method is identical to insert except it overwrites the characters that were already there.

    string str1(“Scooby DOO”);

    string str2(“Scrappy”);

    str2.insert(2, str1, 7, 3);

    cout << str2;

  • Erase() is the method you would use to remove characters from your string.

OUTPUT:

ScDOOpy


Comparing l.jpg
Comparing

  • To compare the entire contents of a string lexigraphically, we would use the > operator that we looked at earlier.

  • However, as with most of these methods, compare is useful if we only want to look at portions of these strings:

    int compare(start, num, str);

  • So the first num characters from position start in str, will be compared with the invoking string project.


Searching l.jpg
Searching…

  • The string class also provides the ability to find a substring within a string – the find() method.

  • Find accepts two arguments - the search string and the starting position for the search

    string scooby = “Wilma’s lost her glasses…again”;

    int i = scooby.find(“her”, 0);

    cout << “i is “ << i << endl;

  • The member function returns an integer of the position of the first match. rfind() does the same job but works backwards.

start point


Getting at the c string l.jpg

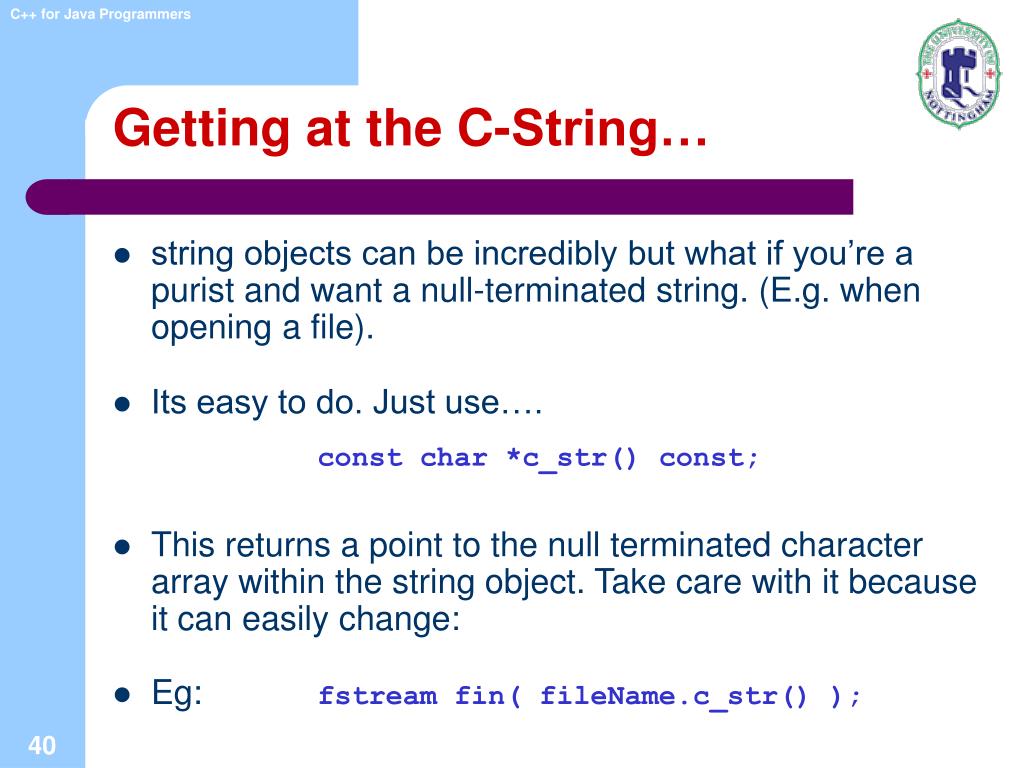

Getting at the C-String…

  • string objects can be incredibly but what if you’re a purist and want a null-terminated string. (E.g. when opening a file).

  • Its easy to do. Just use….

    const char *c_str() const;

  • This returns a point to the null terminated character array within the string object. Take care with it because it can easily change:

  • Eg: fstream fin( fileName.c_str() );


Documentation l.jpg
Documentation

  • Essentially your documentation should cover standard software readme's, covering: * HEADING * PLATFORM * WHAT THE CODE WAS WRITTEN IN * PROGRAM FUNCTIONALITY * ANY KNOWN WEAKNESSES (very important) * POSSIBLE FUTURE FUNCTIONALITY A Final section should also be included: * HOW YOUR PROGRAM IS STRUCTURED


Coursework 2 l.jpg
Coursework 2

  • Will be online soon - the deadline for it however is ages off – 5pm Friday 17th May

  • It will require:

    • More OO than you can shake a stick at

    • Inheritance

    • Operator Overloading

    • DMA

    • File I/O

    • You WILL be good at C++ after this course


Exercise of the day l.jpg
Exercise of the day

  • Write a program that reads a text from standard input and prints a list of words of length less than 4 and their frequency in the text.

  • Suppose words consist of letters a-zA-Z only.


ad
