Presentation Transcript


Astro 10 lecture 6 formation and structure of the solar system l.jpg

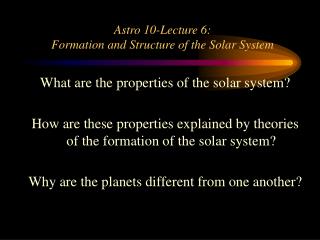

Astro 10-Lecture 6:Formation and Structure of the Solar System

What are the properties of the solar system?

How are these properties explained by theories of the formation of the solar system?

Why are the planets different from one another?


Scale of the solar system a reminder of exercise 1 l.jpg

Scale of the Solar SystemA reminder of Exercise #1


Scale model of the solar system l.jpg

Scale Model of the Solar System

  • The Sun (basketball)

  • Mercury (tiny ballbearing at 10 yds)


Scale model of the solar system4 l.jpg

Scale Model of the Solar System

  • Venus (pinhead at 18 yds)


Scale model of the solar system5 l.jpg

Scale Model of the Solar System

  • Earth (pinhead at 25 yds)

  • Moon (tiny ball bearing 2.4 inches away).


Scale model of the solar system6 l.jpg

Scale Model of the Solar System

  • Mars (tiny ballbearing at 39 yards)


Scale model of the solar system7 l.jpg

Scale Model of the Solar System

  • Asteroids (A few thousand specks of dust between 50 and 75 yards away from the volleyball)


Scale model of the solar system8 l.jpg

Scale Model of the Solar System

  • Jupiter (1 inch diameter at 132 yards)


Scale model of the solar system9 l.jpg

Scale Model of the Solar System

  • Saturn (0.7 inch diameter at 242 yards)


Scale model of the solar system10 l.jpg

Scale Model of the Solar System

  • Uranus and Neptune (0.3 inch diameter at 487 and 762 yards)


Scale model of the solar system11 l.jpg

Scale Model of the Solar System

  • Pluto & Charon (tiny ballbearings at 1000 yds)


Characteristics of the solar system formation theory must explain all l.jpg

Characteristics of the Solar System(formation theory must explain all)

1. All of the planets orbit in the same direction and in the same plane. (Within a few degrees) This plane corresponds with the equator of the sun.

  • Exceptions: Mercury (7 degrees), Pluto (17 degrees)

    2. Most of the planets rotate in the same direction and have their equators roughly aligned with the plane of the solar system.

  • Exception: Venus rotates in the opposite direction (retrograde).

  • Exception: Uranus and Pluto highly tilted (~90 degrees) with respect to the plane of solar system.


Characteristics of the solar system l.jpg

Characteristics of the Solar System

3. Orbits of moons around planets are in the planet’s equatorial plane.

  • Exception: Earth’s moon rotates in plane of the solar system

  • One of Neptune’s moons orbits retrograde.

    4. Two (three?) types of planets…

  • Small rocky planets (Mercury, Venus, Earth, Mars)

  • Large gaseous planets (Jupiter, Saturn, Uranus, Neptune)

  • Tiny icy planets? (Pluto?)


Terrestrial planets l.jpg

Terrestrial Planets


Terrestrial planets15 l.jpg

Terrestrial Planets

Small and Rocky. Crust mainly composed of Silicon and Oxygen (Silicates).

Atmosphere ranges from none to thick. Atmosphere


Terrestrial planets16 l.jpg

Terrestrial Planets

Near to the sun. (< 5 astronomical units)

  • Reminder of what an astronomical unit is….

    Small and Rocky. (From 0.1 to 1 Me)

  • High density (volume/mass) (3-5x the density of water).

    • How do we measure the density?

  • Crust mainly composed of Silicon and Oxygen (Silicates) with small fraction of Sulfates.

    • Exception: Earth has higher percentage of carbonates in its rocks.

  • Cores of Nickel and Iron

    • Some solid, some liquid


Terrestrial planets17 l.jpg

Terrestrial Planets

Cratering is common on the surface of terrestrial planets.

From the ages of the craters, we can tell that impacts were much more common early in the history of the solar system


Terrestrial planets18 l.jpg

Terrestrial Planets

Atmosphere ranges from none (Mercury) to thick (Venus).

  • Typical atmospheric components are Carbon Dioxide (CO2) and Nitrogen (N2)

    • Exception: Earth has Oxygen (O2) and Water (H2O) in its atmosphere.

      Typically have no moons.

  • Exception: Earth has a very large moon.

  • Exception: Mars has two tiny moons.


Terrestrial planet interiors l.jpg

Terrestrial Planet Interiors


Jovian gas giant planets l.jpg

Jovian (Gas Giant) Planets


Jovian gas giant planets21 l.jpg

Jovian (Gas Giant) Planets

Primarily composed of hydrogen (H2) and Helium (He)

Massive (15 to 300 Me)

Thick Atmosphere

  • H2, He, Methane (CH4), Ammonia (NH3)

    Low density (0.7 to 1.8x the density of water)

  • Saturn would float!

    Small rocky core surrounded by huge ocean of liquid hydrogen.

  • Is the core a terrestrial planet?

    All are found more distant than about 5 astronomical units from the sun.


Jovian planets l.jpg

Jovian Planets

Rings! All Jovian planets have them.


Jovian planets23 l.jpg

Jovian Planets

Moons! Jovian planets tend to have very many


Jovian planets24 l.jpg

Jovian Planets

Interior

Atmosphere

Liquid

Metallic

Hydrogen

Liquid

Hydrogen

Core


Jovian planets25 l.jpg

Jovian Planets

  • Some (Jupiter and Saturn at least) radiate more energy than they receive from the sun.

    • They generate energy from gravitational contraction.


Tiny icy planets l.jpg

Tiny Icy Planets

  • Pluto? Charon? Are they really planets

  • The moons of the Jovian planets?

  • These are like the terrestrial planets, but instead of SiO2 they have H2O

  • Tiny rocky core underneath the ice.


Characteristics of the solar system27 l.jpg

Characteristics of the Solar System

5.Three types of space debris:

  • Asteroids:

    • Chunks of rock between 10 meters and a thousand km in size.

    • ~20,000 of them

    • Concentrated in the plane of the solar system between Mars and Jupiter


Characteristics of the solar system28 l.jpg

Characteristics of the Solar System

  • Comets:

    • Chunks of ice and rock between 10 meters and a thousand km in size.

    • Billions? of them

    • Most reside outside the orbit of Pluto in the Oort cloud. Not concentrated into the plane of the solar system

    • Occasionally one will fall into the inner solar system (on a very elliptical orbit).


Characteristics of the solar system29 l.jpg

Characteristics of the Solar System

  • Meteoroids:

    • Tiny bits of rock and metal

    • Most <1 gram

    • Heated by atmospheric friction until they glow.

    • Most follow along the orbits of comets

      • Debris left behind when a comet goes by.


Characteristic of the solar system l.jpg

Characteristic of the Solar System

6. Age:

  • The objects in the solar system are all about 4.6 billion years old.

  • How do we know this?

    • Radioactive dating

      • A radioactive element decays into a daughter element.

        • We don’t know what time a specific atom will decay but we know how long it will take for half the atoms to decay.

        • (Demo)


Radioactive dating l.jpg

Radioactive Dating

  • U238>Pb206

    • Halflife:

      • 4.5 billion years

    • Oldest earth rocks

      • 3.96 billion years

    • Meteors and Moon rocks

      • 4.6 billion years

      • This is the time they solidified… The solar system is older than this.


Theory of the formation of the solar system l.jpg

Theory of the formation of the Solar System

  • A story the fits the facts….

    • Needs to explain, or at least be consistent with all the characteristics that we listed.

    • Needs to also be consistent with what we know about the rest of the galaxy. Other stars and solar systems should form in the same way.


The solar nebula theory l.jpg

The Solar Nebula Theory

  • The sun and solar system formed from the collapse of a cloud of gas and dust.

    • The cloud was slowly rotating, so centrifugal force made it into a disk (accretion disk) transferring matter to the center.

    • Conservation of angular momentum made it rotate more quickly


The solar nebula theory34 l.jpg

The Solar Nebula Theory

  • Instabilities in the disk may have formed smaller sub-disks where giant planets formed


The solar nebula theory35 l.jpg

The Solar Nebula Theory

  • Dust, rock and ice condense and stick together to make small bodies called planetesimals.

  • Heat from the forming sun only allowed certain elements to condense nearby. Ices could only condense far away.


The solar nebula theory36 l.jpg

The Solar Nebula Theory

  • Two ways of building planets

    • Larger planetesimals attract smaller ones. They collide and merge to make a bigger planetesimals. These attract more and eventually form the planets

    • Near the sun, the nebular hydrogen gas is too hot (moving to fast) to form an atmosphere around the planets. Distant planets begin to form hydrogen atmospheres once they get big enough.

      • The Jovian planets captured their atmospheres.

  • As time goes on the nebula cools, making the “frost line” move inward.


The solar nebula theory37 l.jpg

Differentiation

The Solar Nebula Theory

  • The young planets start out fairly warm (in a liquid or nearly liquid state). Heavy elements start to sink… This concentrates the radioactive elements in the center (and explains why the earth’s core is hot).

  • This process is still occurring in the giant planets. It releases gravitational energy.


The solar nebula theory38 l.jpg

The Solar Nebula Theory

  • On the terrestrial planets, gasses are released from the hot interior to form atmospheres.

    • Volcanic processes release H2S, SO2, CO2, H2O, NH3, N2

    • Solar UV radiation breaks apart NH3, hydrogen escapes, leaving N2

    • Solar UV radiation also breaks apart H2O, hydrogen escapes leaving O, which reacts with rock to form solid oxides.

    • H2O combines with H2S, and SO2 to make sulfuric and sulfurous acid. This eats away rock to form solid sulfates.

  • What’s left? CO2 and N2 in the atmosphere. Oxygen and Sulfur in the rocks. (Why is Earth’s atmosphere different?)


Where did the nebula go l.jpg

Where did the nebula go?

  • Solar wind, heat, and light pressure drove the gas away.

  • What about the left over planetesimals?

    • Most of the rocky ones in the inner solar system eventually collided with planets. (That’s why the rate of impacts was high 4 Gya, but is low now.)

      • There’s about 20,000 left over mostly between Mars and Jupiter (Asteroids!)

      • Jupiter’s gravity prevented a planet from forming there.

    • Encounters with the giant Jovian planets kicked most of the remaining icy ones into the outer solar system or interstellar space

      • These are comets!

      • The encounters would kick them in any direction. (This explains why comets aren’t concentrated in the plane of the solar system.)


How does this theory fit the characteristics of the solar system l.jpg

How does this theory fit the characteristics of the Solar System?

1. & 2. Collapse to a disk explains the concentration in the plane of the solar system, and why almost everything moves in the same direction.

3. The giant planets had disks of their own so their moons orbit in their equatorial plane

4a. Because the inner solar system was hot, only rock and metal could condense which resulted in terrestrial planets

4b. The outer solar system was cold enough for ices to condense and for hydrogen gas to be captured by a massive enough body. This resulted in Jovian planets.

4c. If an object in the outer solar system wasn’t massive enough to capture hydrogen gas, it remained as a small icy body. (Pluto, the outer planet moons, comets)


How does this theory fit the characteristics of the solar system41 l.jpg

How does this theory fit the characteristics of the Solar System?

4d. The terrestrial planets released their atmospheres from their interiors. The Jovian planets captured theirs. The icy planets weren’t massive enough to capture one, or hot enough to release one.

4e. The inner structure of the planets is explained by differentiation. Heavier elements sink to the core. Lighter ones float to the surface.

5. Asteroids and comets are left over planetesimals. Meteors are bits of dust that have fallen off of comets

6. Everything is the same age because it all formed at about the same time.

What about the exceptions?


For every exception there is a rule l.jpg

For every exception there is a rule...

  • Tilted orbits of Mercury and Pluto.

    • Mercury probably suffered a large impact late in its formation

    • Pluto might be a left-over planetesimal.

  • Retrograde rotation of Venus:

    • Probably due to a large impact late in formation.

    • Probability favors, but does not require, rotation in the same direction as the orbit.

  • High axial tilt of Uranus and Pluto:

    • Also likely to be due to a large impact

    • Also, in the outer solar system, computer models suggest the nebula was less concentrated in the plane, which could result in large tilt of sub-disks.


For every exception there is a rule43 l.jpg

For every exception there is a rule...

  • Retrograde moon of Neptune.

    • Probably a captured planetesimal.

  • Oxygen in the atmosphere of earth.

    • Earth’s atmosphere is highly modified by life.

  • Earth’s moon orbits in the plane of the solar system.

    • This is likely because the moon was formed from an impact with another body traveling in the plane of the solar system.


  • Login
