High Speed Labeller

Coupon Applicator

Model TP-8

WWW.TECHNO-PAK.COM

Tel: 450-922-3122 Fax: 450-922-3422

2150 Bombardier, Ste-Julie, Quebec, Canada, J3E 2J9

high speed labeller coupon applicator model tp 8
HIGH SPEED LABELLER / COUPON APPLICATOR MODEL TP-8

ROBUST

Machine entirely built of heavy gage stainless steel and anodized aluminium. Designed for intensive use in a harsh industrial environment.

RELIABLE

Provides superior performance with minimum maintenance and supervision.

USER FRIENDLY

Servo motor driven, this machine will quickly adjust to various labels/coupons and operating conditions.

FLEXIBLE

Applies promotion coupons and labels to the top or side of products at speed of up tofive hundred (500) products per minute.

technical characteristics
Label size: 5 ¾” wide by ⅜” to 20” long.

Adjustable application height from 24” to 50” from floor.

Servo motor driven.

16” diameter roll support.

Rewinder powered by DC motor.

Application speed: up to 200 ft /min.

Precision +- 1/16”.

Gap sensor for paper or plastic labels/coupons.

Height & angular adjustments by hand crank.

Friendly Operator Interface.

Options: Alarm (beacon and buzzer), Actuated Appli-cation Arm, Locking Casters.

Technical Characteristics

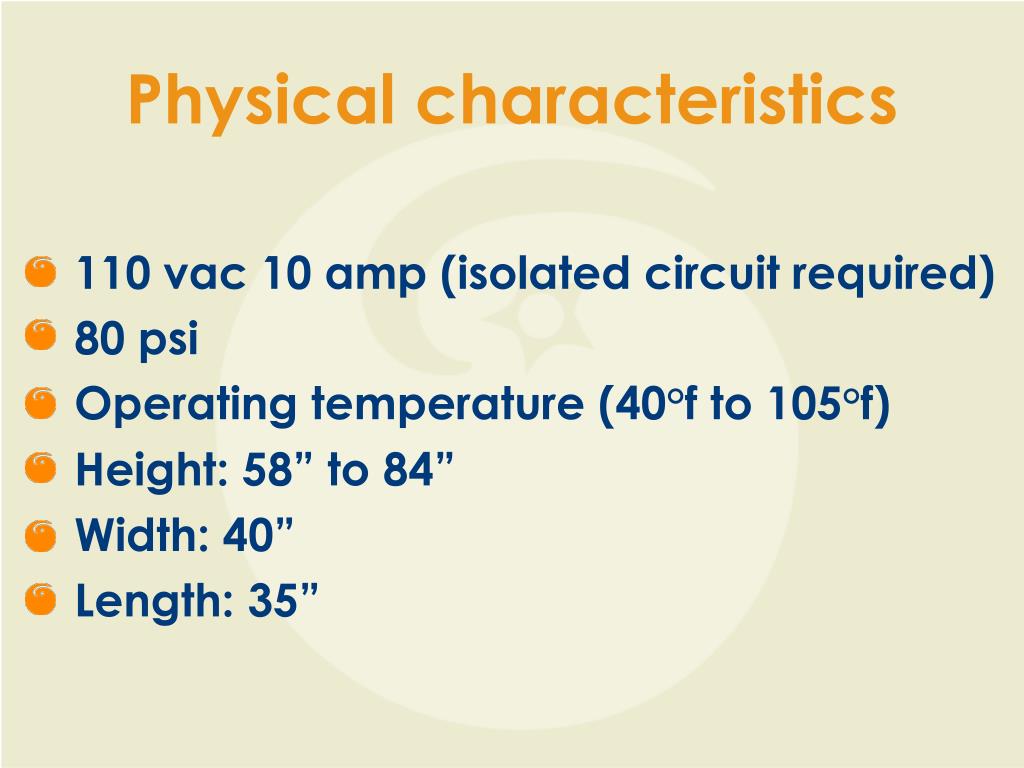

physical characteristics
110 vac 10 amp (isolated circuit required)

80 psi

Operating temperature (40°f to 105°f)

Height: 58” to 84”

Width: 40”

Length: 35”

Physical characteristics
top application
Top Application

Labels/coupons applied on top of products.

Machine can be installed over standard conveyors and can accommodate some conveyor speed variation.

Heavy stainless steel construction built for millions of cycles with minimal maintenance..

Clickon both images to see video sequences showing a top label application.

( Maximum 500 PPM* )

slide6
SIDE

Side Application

Label/coupon applied on side of products.

Machine can be installed over standard conveyors and can accommodate some conveyor speed variation.

Video sequence showing a side label application

( Maximum 500 PPM* )

unwind rewind
UNWIND & REWIND

Roll Support & Rewinder

Roll support: accommodates 16” diameter label/coupon rolls from 1” to 5 ½” wide.

Heavy duty roll support mounted on bearings.

Easy loading.

Rewinder powered by DC motor

keyboard interface
Keyboard Interface

STATE:STOP VP:470

E: PRINT COMPLETE FAIL

I:

S:

Operator interface allows full control of the machine.

User friendly keypad gives access to menus and settings.

4 alphanumerical lines informs user about machine status values and guidelines.

Password protected access level

alarms warnings

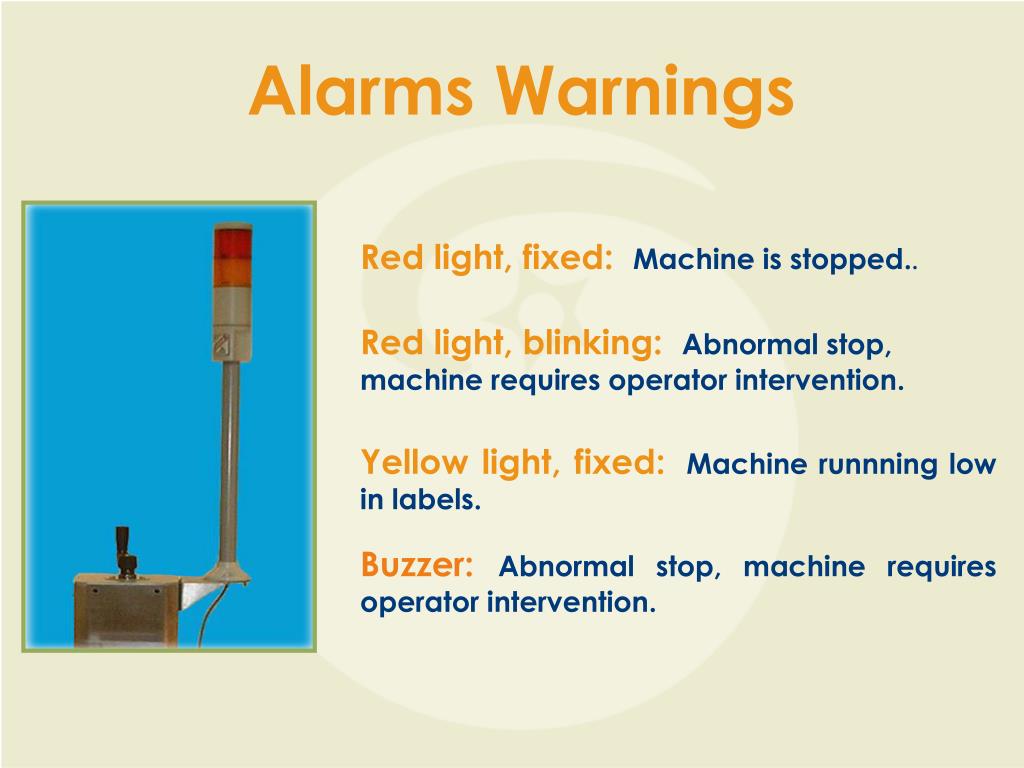

Alarms Warnings

Red light, fixed:Machine is stopped..

Red light, blinking:Abnormal stop, machine requires operator intervention.

Yellow light, fixed:Machine runnning low in labels.

Buzzer:Abnormal stop, machine requires operator intervention.

diagnostics
Diagnostics

I: E-STOP

I: I 0 I 0 I I 0 0 0 I

O: 0 I 0 I 0

O: 101010

Machine comes with a CD containing: Operation, maintenance and troubleshooting, instructions, drawings and pictures in color PDF format.

Manual

Controller interface display a descriptive error message.

In addition to error messages, full diagnostic of every I/O is shown on display, for easy troubleshooting.

Diagnostic Interface Screen

tandem
Tandem

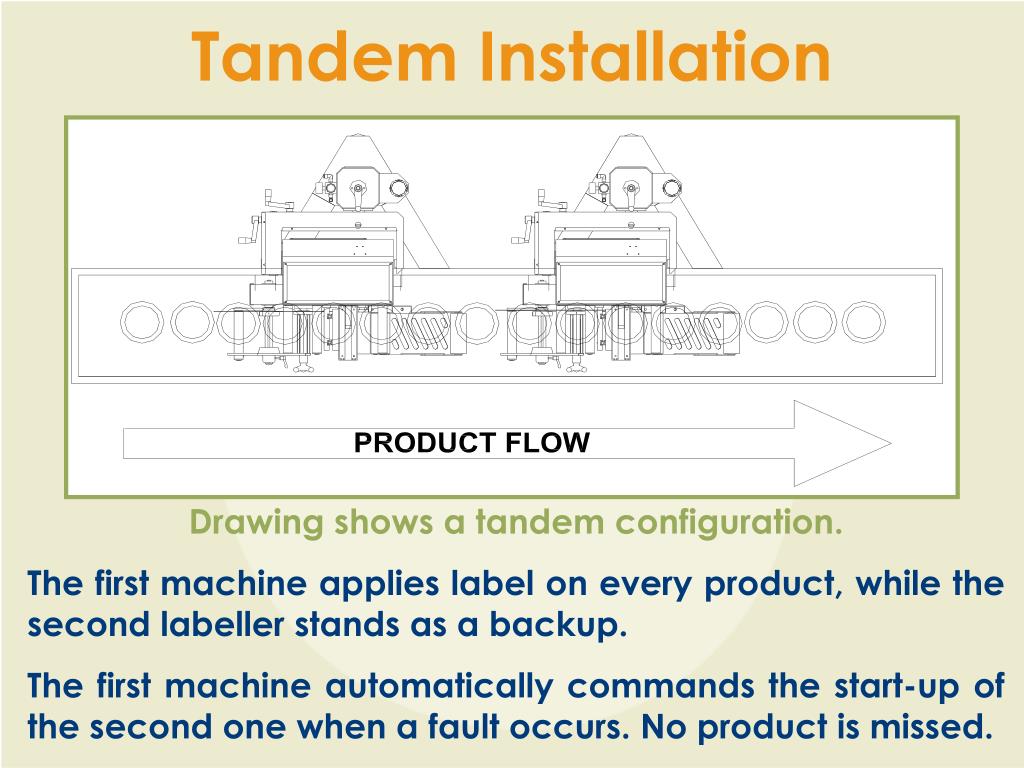

Tandem Installation

Drawing shows a tandem configuration.

The first machine applies label on every product, while the second labeller stands as a backup.

The first machine automatically commands the start-up of the second one when a fault occurs. No product is missed.

easy startup
Easy Startup
  • Install the machine next to or over existing conveyors, adjust the height and the guide rails to align products.
  • Connect the machine to 110 VAC (isolated line) and compressed air.
  • Adjust photo-eye and applicator settings according to the required label position and conveyor speed.
  • Insert your roll of labels on roll support and follow path instruction shown on machine.
additional services
Additional Services

Consumables:

Techno Pak will guaranty performance if labels coupons meet specifications, from an approved supplier.

Inventory:

Techno Pak carries a large inventory of spare parts.

Training:

Complete training programs available for end users.

Service:

First class technical services offered for installation, training and troubleshooting.

Turn Key:

Turn key systems, including conveyors and controls, are affered by Techno Pak.

Equipment:

Other packaging equipments are available but not listed in this presentation. Please contact us for details.
