Sens ice ice detectors

Sensice ice detectors

Dr Ulf Elman, President

Sensice 070320


Traffic accidents in sweden 1995 1999

Traffic accidents in Sweden 1995-1999:

  • 37828 at snowy or icy road surface conditions, of these did

  • 15589 occur during black ice conditions, and in addition did

  • 572 accidents related to aquaplaning occur

Sensice 070320


Fixed applications

Fixed applications

Roadside mounting

Sensice 070320


Fixed applications1

Fixed applications

Icing alert at building entrances

Sensice 070320


Fixed applications2

Fixed applications

Ice detection at airports

Sensice 070320


Fixed applications3

Fixed applications

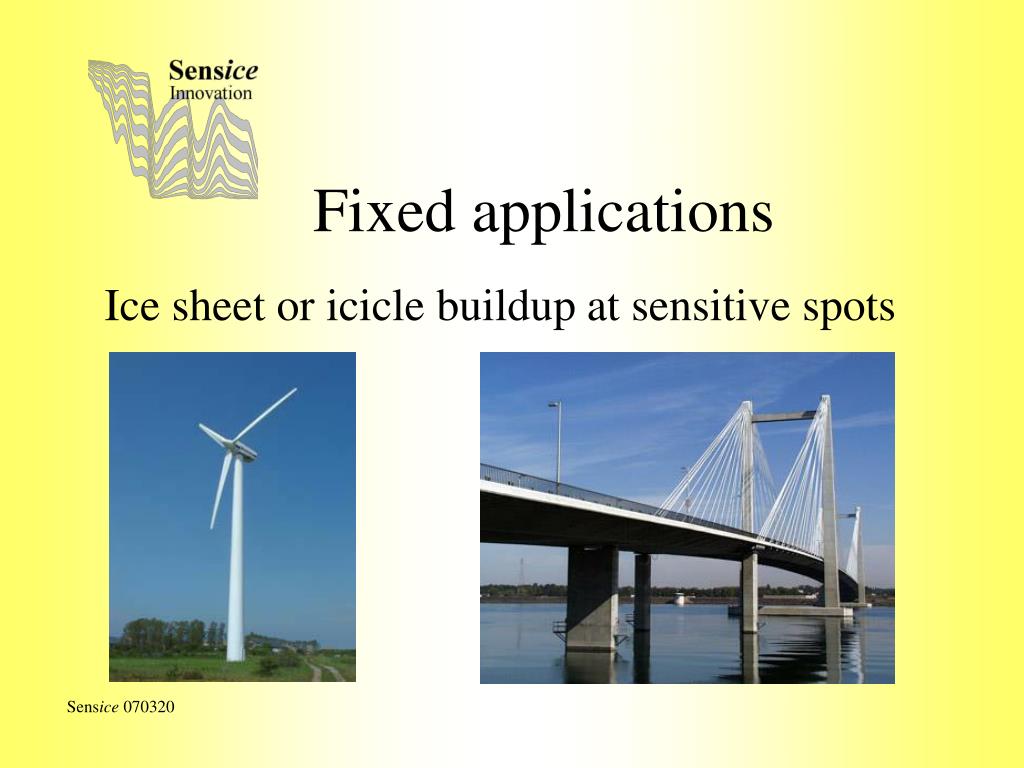

Ice sheet or icicle buildup at sensitive spots

Sensice 070320


In car mounting

In-car mounting

Detection range: 50m

Sensice 070320


In car mounting1

In-car mounting

Continuous detection with a response time of 0.1 s

Sensice 070320


In car mounting2

In-car mounting

Insensitive to ambient light and works in darkness

Sensice 070320


In car mounting3

In-car mounting

  • Display integrated with detector

Several interface options:

  • Separate display unit

  • FlexRay, CAN-bus, Ethernet, USB, RS232 or RS485

Sensice 070320


In car mounting4

In-car mounting

  • Integrated display and detector head behind windscreen

Placing the detector head:

  • Separate detector head at front of vehicle

Sensice 070320


General properties

General properties

Uses infrared spectroscopy

Sensice 070320


General properties1

General properties

  • Ice transparent to visible light

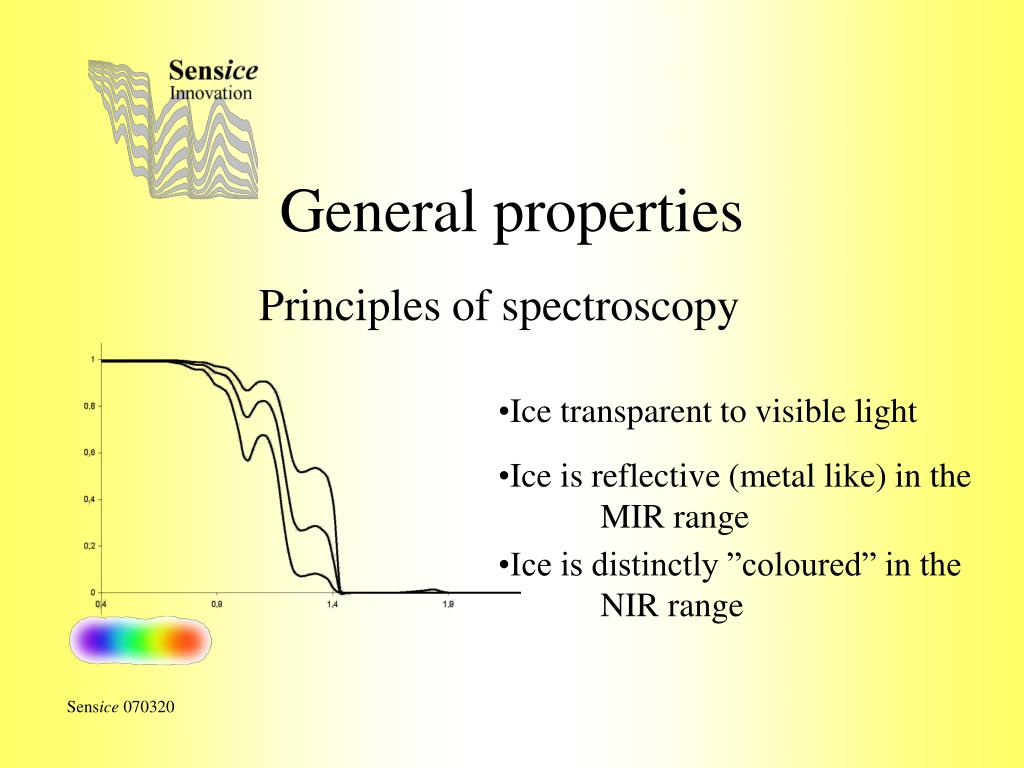

Principles of spectroscopy

  • Ice is reflective (metal like) in the MIR range

  • Ice is distinctly ”coloured” in the NIR range

Sensice 070320


General properties2

General properties

1. Dry

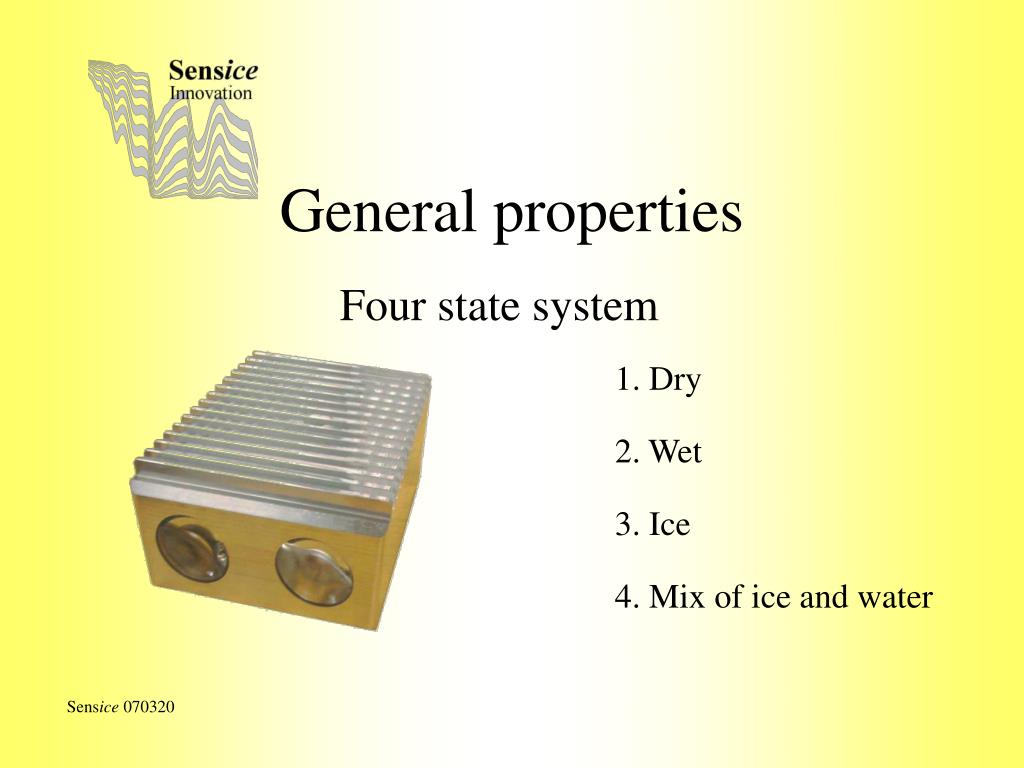

Four state system

2. Wet

3. Ice

4. Mix of ice and water

Sensice 070320


General properties3

General properties

1. Dry

Six state system

2. Wet

3. Clear ice

4. Snow

5. Sleet

6. Wet clear ice

Sensice 070320


General properties4

General properties

  • Ice and water thickness

  • Ice and water ratio

Six state system

  • Accepts larger layer thickness range

Sensice 070320


Failure rate

Failure rate

  • External error sources

  • Unable to separate water/ice on windscreen or in the air from water/ice on road surface

  • Staring system, detection area may leave road surface

  • Objects in line of sight, such as wipers or other cars, may interfer with detection

  • Intrinsic failure rate

Sensice 070320


Synergy effects

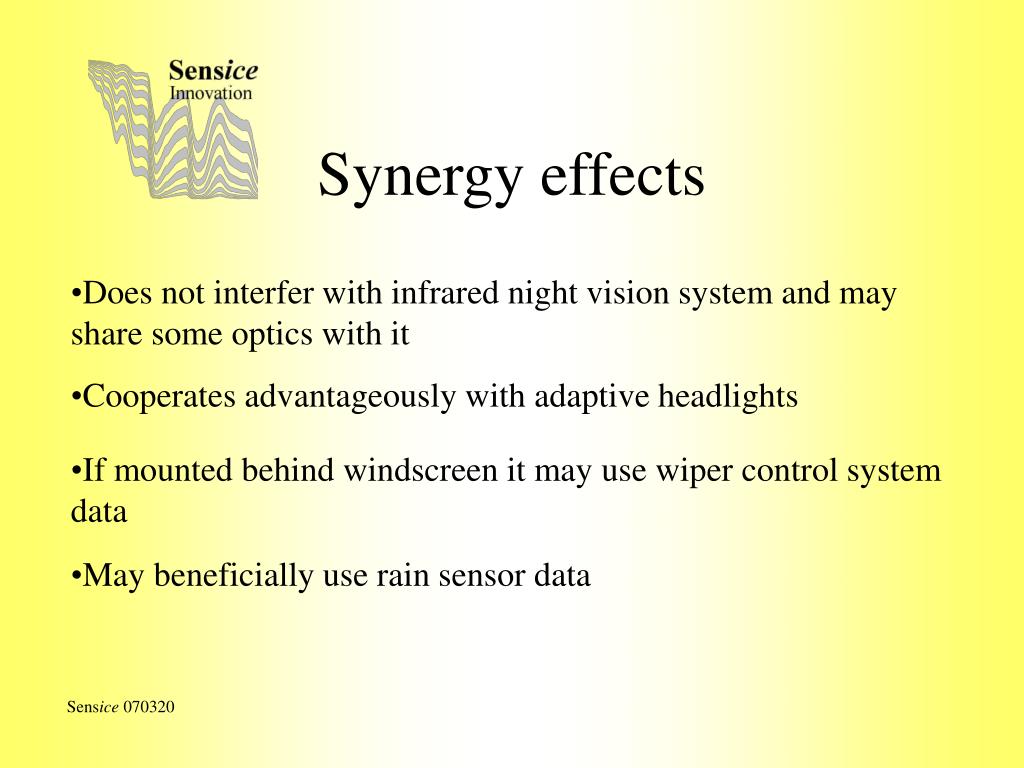

Synergy effects

  • Does not interfer with infrared night vision system and may share some optics with it

  • Cooperates advantageously with adaptive headlights

  • If mounted behind windscreen it may use wiper control system data

  • May beneficially use rain sensor data

Sensice 070320


Decreasing size and weight

Decreasing size and weight

  • Present volume 2.8 l, weight 2.7 kg

  • Next version volume 1.0 l, weight 0.5 kg

  • Ultimate size limit set by aperture sizes, may be made far smaller and much more lightweight

Sensice 070320


Sensice s unique detectors

Sensice’s unique detectors

Excessively expensive systems for ice detection have been around for decades

  • Sensice’s ice detectors are unique in that they are produceable at cost levels acceptable to consumers

Sensice 070320


Company facts sens ice

Company facts, Sensice

  • Founded 2004

  • First order september 2005 (Volvo, LuTH)

  • Two patents granted, further patents pending

Sensice 070320


Thank you

Thank you

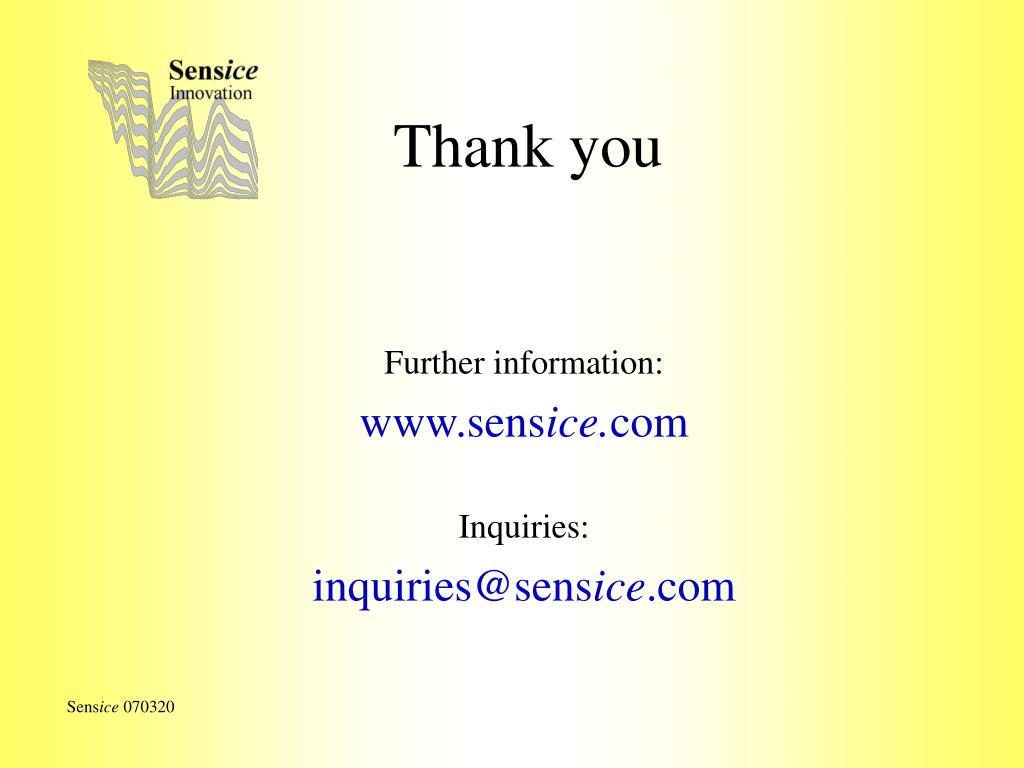

Further information:

www.sensice.com

Inquiries:

[email protected]

Sensice 070320
