Presentation Transcript
Slide1 l.jpg

Medical and Surgical Approach to Biliary and Gallbladder Disease

Norman H. Gilinsky, M.D., FACP, FACG

Associate Professor of Medicine

Medical Director, Digestive Diseases Center

University of Cincinnati

Objectives at completion of this lecture the student will be able to l.jpg
Objectives DiseaseAt completion of this lecture, the student will be able to:

  • State the main disorders afflicting the gallbladder and biliary system

  • Describe the interventions employed in differentiating biliary from other disorders

  • Formulate a management plan for diagnosing biliary diseases

  • Develop a strategy to treat gallbladder and biliary diseases

  • Differentiate between benign and malignant biliary diseases

Biliary and gallbladder disease clinical classification of disorders l.jpg
Biliary and Gallbladder DiseaseDiseaseClinical Classification of Disorders

  • Gallstones

  • Strictures and other obstructions to bile flow

    • Lumen (stone, blood, foreign body)

    • Bile duct (post-operative, benign, malignant)

    • Extrinsic compression (benign, malignant)

  • Cholangitis

    • Bacterial

    • Sclerosing (PSC)

  • Other (congenital, infections, medications, post-surgical syndromes, etc)

Biliary and gallbladder disease clinical approach requires understanding of l.jpg
Biliary and Gallbladder DiseaseDiseaseClinical Approach Requires Understanding of:

  • Biliary anatomy

  • Relevance of liver enzyme abnormalities

    • Hepatocellular vs cholestatic

  • Role (and limitations) of imaging techniques

    • Ultrasound

    • CT scan

    • ERCP

    • HIDA scan

  • Clinical symptoms associated with biliary disorders

Biliary and gallbladder disease imaging modalities 1 l.jpg
Biliary and Gallbladder DiseaseDiseaseImaging Modalities (1)

  • Ultrasound: Good for gallbladder, calculi, bile duct visualization (esp in liver); not expensive, generally readily available

  • CT scan: Generally good for visualizing bile ducts and other intraabdominal organs, staging ot tumors. Expensive

  • ERCP: Excellent for ductal visualization, including pancreas, therapeutic (removal of stones in bile duct, placement of stents for palliation; invasive; very operator dependent

One of the above utilized as initial imaging modality in virtually 100% of patients with suspected biliary disease

Slide6 l.jpg

Biliary and Gallbladder DiseaseDiseaseImaging Modalities (2)

  • HIDA scan: Nuclear medicine study. Helpful if suspect gallbladder dysfunction (esp acute cholecystitis) when other imaging equivocal. Many false negatives (and positives). Cannot be used if significant jaundice.

  • Oral cholecystogram: Oral contrast taken up by gallbladder. Rarely used these days

  • PTC (percutaneous transhepatic cholangiogram):Performed by interventional radiologist. Invasive. Occasionally employed when ERCP unable to be performed and non-surgical intervention required

  • EUS: Ultrasound system attached to endoscope

Biliary and gallbladder disease workup helps determine ultimate management plan l.jpg
Biliary and Gallbladder DiseaseDiseaseWorkup Helps Determine Ultimate Management Plan

  • Liver enzyme profile

    • Is there evidence for cholestasis?

  • Imaging modality

    • Is there evidence of biliary pathology (stone, mass, dilated/obstructed ducts)?

    • What is the level of the obstruction?

  • Clinical judgement

    • What is the likely disease process?

    • How best to confirm (radiology, tissue, serology)?

    • How best to treat, palliate?

Gallstones l.jpg
Gallstones Disease

  • Incidence 10%

  • More common in women

  • Majority asymptomatic

  • Is a cause of significant morbidity if complicate

Types of gallstones l.jpg
Types of Gallstones Disease

  • Cholesterol

    • >75% of gallstones

    • Arise by crystallization of bile

  • Pigment

    • Approximately 10-20% of gallstones; calcium bilirubinate

    • Arise from precipitation of unconjugated bilirubin or associated with biliary infection

Gallstones risk factors for cholelithiasis l.jpg
Gallstones DiseaseRisk Factors for Cholelithiasis

  • Age

  • Gender (multiparity, pregnancy)

  • Obesity

  • Hereditary

  • Drugs (e.g. hormones, TPN)

  • Other (ileal disease, rapid weight loss, etc)

  • Chronic hemolytic states

Gallstones natural history l.jpg
Gallstones DiseaseNatural History

  • Asymptomatic

    • Majority (>2/3) asymptomatic

    • Risk of symptoms about 2% per year

    • Complication rate 0.1% per year

    • No treatment necessary

  • Symptomatic

    • If symptomatic episode resolves, risk of future problems 35% by 5 years; complication 1% per year

    • Treat all (few exceptions)

Spectrum of gallstone disease l.jpg
Spectrum of Gallstone Disease Disease

  • Gallbladder (>85%)

    • Biliary colic

    • Acute cholecystitis*

  • Bile duct (choledocholithiasis)

    • Biliary obstruction

      • Ascending cholangitis**

    • Pancreatitis

*With risk of septic complications, perforation; **With risk of septicemia, liver abscesses

Biliary colic acute inflammation of the gallbladder absent l.jpg
Biliary Colic DiseaseAcute inflammationof the gallbladderabsent

  • Clinical features

    • Episodic, epigastric, RUQ

    • Pain or discomfort rises steeply in intensity

    • May last hours

    • May wake patient from sleep

Biliary colic l.jpg
Biliary Colic Disease

  • Diagnosis

    • Compatible clinical picture

    • Bloodwork often normal

    • Confirm gallstones (ultrasound most cost-effective)

  • Treatment

    • Symptomatic (if seen during acute episode)

    • Elective cholecystectomy

      • Laparoscopic vs open

    • Other (rarely employed now)

      • Shock wave lithotripsy, dissolution agents

Acute cholecystitis acute inflammation of the gallbladder present l.jpg
Acute Cholecystitis DiseaseAcute inflammation of the gallbladderpresent

  • Clinical features

    • Epigastric, RUQ pain often persistent

    • May radiate to right shoulder, infrascapular

    • Tender RUQ, Murphy’s sign, rigidity, fever, tachycardia, chills may be present

  • Differential diagnosis

    • Any intraabdominal infection, hepatitis, pneumonia, perforated viscus, pyelonephritis

Acute cholecystitis l.jpg
Acute Cholecystitis Disease

  • Diagnosis

    • Compatible clinical picture

    • White count, liver enzymes may be elevated

    • Radiology

      • X-ray abdomen (to exclude other pathologies, may see calcification RUQ)

      • Ultrasound (or CT, HIDA)

  • Treatment

    • Antibiotics (with gram –ve coverage)

    • Cholecystectomy

Complications of gallstones and cholecystitis l.jpg
Complications of Gallstones and Cholecystitis Disease

  • Compression of bile duct (Mirizzi’s syndrome)

  • Mucocele, empyema, emphysematous cholecystitis (air in gallbladder wall)

  • Gangrene, perforation, bile peritonitis

  • Cholecyst-enteric fistula (air in gallbladder lumen)

  • Gallstone ileus (small bowel obstruction)

  • Porcelain gallbladder (calcified gallbladder wall)

  • Carcinoma (rare)

  • Choledocholithiasis (about 10%)

Slide18 l.jpg

Choledocholithiasis DiseaseMost calculi originate from gallbladder; some primary. Symptoms and complications likely, therefore remove even if asymptomatic

  • Presentation

    • Biliary colic

    • Obstructive jaundice

    • Cholangitis

    • Pancreatitis

    • Secondary biliary cirrhosis

  • Symptoms and Signs

    • Of obstruction: Pain, jaundice, cholestasis

    • Of secondary infection (cholangitis): Sepsis, fever

Choledocholithiasis l.jpg
Choledocholithiasis Disease

  • Diagnosis

    • Demonstration of cholestasis (elevated bilirubin, alkaline phosphatase)

    • Demonstration of dilated bile ducts; and or demonstration of filling defects in bile duct

      • Imaging modality (US, CT, ERCP)

  • Treatment

    • Endoscopic sphincterotomy and stone extraction

    • Surgery

Other gallbladder disorders l.jpg
Other Gallbladder Disorders Disease

  • Polyps

    • Asymptomatic, benign. No treatment necessary

    • Concern if large, irregular shape

  • Acalculous cholecystitis

    • Severe inflammatory disorder in absence of calculi

    • Often painful, but may present with fever or general deterioration in already ill, hospitalized patient

    • Thought to be ischemic; may result in sepsis, perforation. Thick wall on US; air in wall ominous

    • Also a complication of salmonellosis

Biliary and gallbladder disease bacterial cholangitis l.jpg
Biliary and Gallbladder DiseaseDiseaseBacterial Cholangitis

  • Infection of bile duct system (invariably obstructed)

  • Majority have pain, jaundice and fever (Charcot’s triad)

  • Elevated bilirubin, WBC, alkaline phosphatase invariable

  • High fatality if untreated Blood cultures often yield gram negative organism (E. coli, Klebsiella, Pseudomonas, enterococci, Proteus, anaerobes)

  • Diagnosis as for choledocholithiasis

  • Treat with intravenous antibiotics, obtain biliary drainage, treat specific cause

  • Sequelae include all complications of Gram –ve septicemia, liver abscess, shock syndrome

Slide22 l.jpg
Biliary and Gallbladder DiseaseDiseaseOther Causes of Cholangiopathy(Inflammatory disorder of the bile ducts)

  • Primary sclerosing cholangitis

  • Autoimmune

  • AIDS cholangiopathy

    • Cryptosporidiosis

    • CMV

  • Cholangiocarcinoma

  • Chemotherapy (hepatic artery infusion)

  • Biliary papillomatosis

Primary sclerosing cholangitis l.jpg
Primary Sclerosing Cholangitis Disease

  • Inflammatory disorder of intra- and or extra-hepatic bile duct system

  • May be immunologic mediated (pANCA)

  • Males, >50% have inflammatory bowel disease

  • Results in multiple bile duct strictures

  • Progressive cholestatic disorder

  • Predisposed to liver failure, cholangiocarcinoma

Bile duct neoplasms l.jpg
Bile Duct Neoplasms Disease

  • Intrinsic

    • Primary bile duct origin (cholangiocarcinoma)

    • Ampullary

    • Gallbladder

  • Extrinsic

    • Pancreatic carcinoma

    • Periampullary carcinoma

    • Contiguous malignant process

Biliary tumors presentation diagnosis l.jpg
Biliary Tumors DiseasePresentation & Diagnosis

  • Present with cholestasis, jaundice. May have weight loss, abdominal mass. Pain not always present

  • Biochemistry invariably abnormal (cholestasis)

  • Imaging modality often reveals obstructed, dilated bile ducts. Mass may be present

  • Tissue sampling to confirm diagnosis (radiologically-guided aspiration or by ERCP)

Biliary tumors treatment strategy l.jpg
Biliary Tumors DiseaseTreatment Strategy

  • Relieve mechanical obstruction

    • ERCP and stent placement

    • Percutaneous placement (by radiology)

    • Surgery

  • Cure may not be possible

    • Therefore palliation often required

  • Supportive treatment

    • Itch, pain, nutrition, bowel obstruction

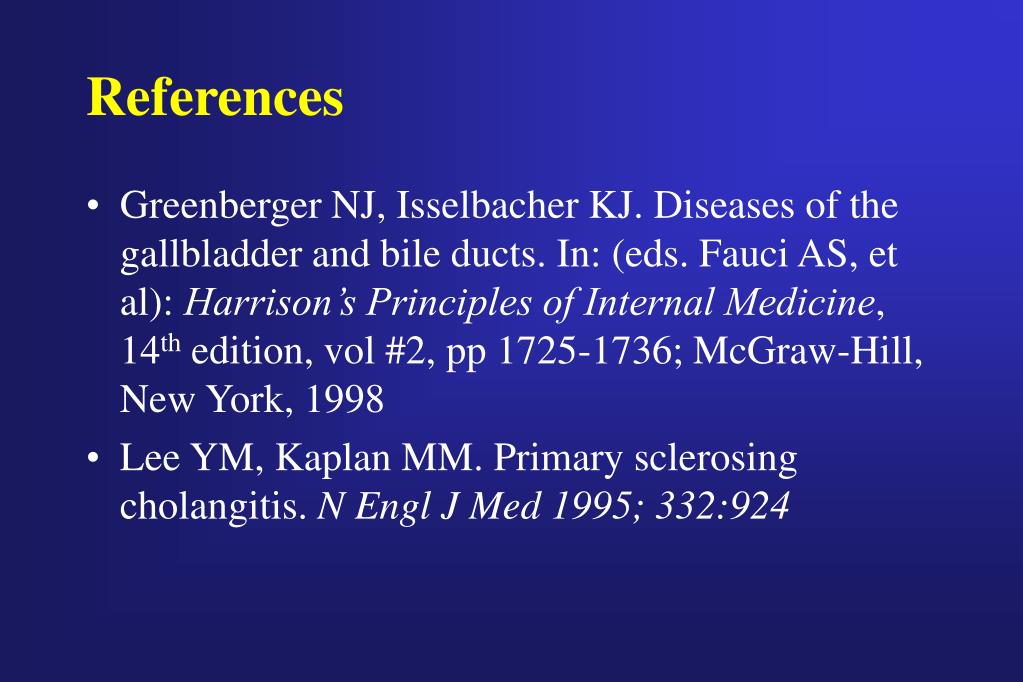

References l.jpg
References Disease

  • Greenberger NJ, Isselbacher KJ. Diseases of the gallbladder and bile ducts. In: (eds. Fauci AS, et al): Harrison’s Principles of Internal Medicine, 14th edition, vol #2, pp 1725-1736; McGraw-Hill, New York, 1998

  • Lee YM, Kaplan MM. Primary sclerosing cholangitis. N Engl J Med 1995; 332:924
