Presentation Transcript
Slide1 l.jpg
CV

Curriculum Vitae

Stephan Husen

Born July 13, 1967 in Kiel, Germany

Local Earthquake Tomography

Ph.D. Thesis (1999)

Local earthquake tomography of a convergent margin, North Chile

received at GEOMAR, Kiel

Earthquake

Location

Scientific Record

since Jan. 2004 MAGE Postdoc at ETH Zurich, Switzerland

Future Work

2001 - 2003 Postdoc at University of Utah, U.S.A.

1999 - 2001 Postdoc at ETH Zurich, Switzerland


Let development fatomo l.jpg
LET - Development (FATOMO)

Curriculum Vitae

FATOMO

Local earthquake tomography between rays and waves: Fat ray tomography

Local Earthquake Tomography

use of fat ray instead of rays in seismic tomography

Development: FATOMO

Earthquake

Location

Future Work


Let development fatomo3 l.jpg

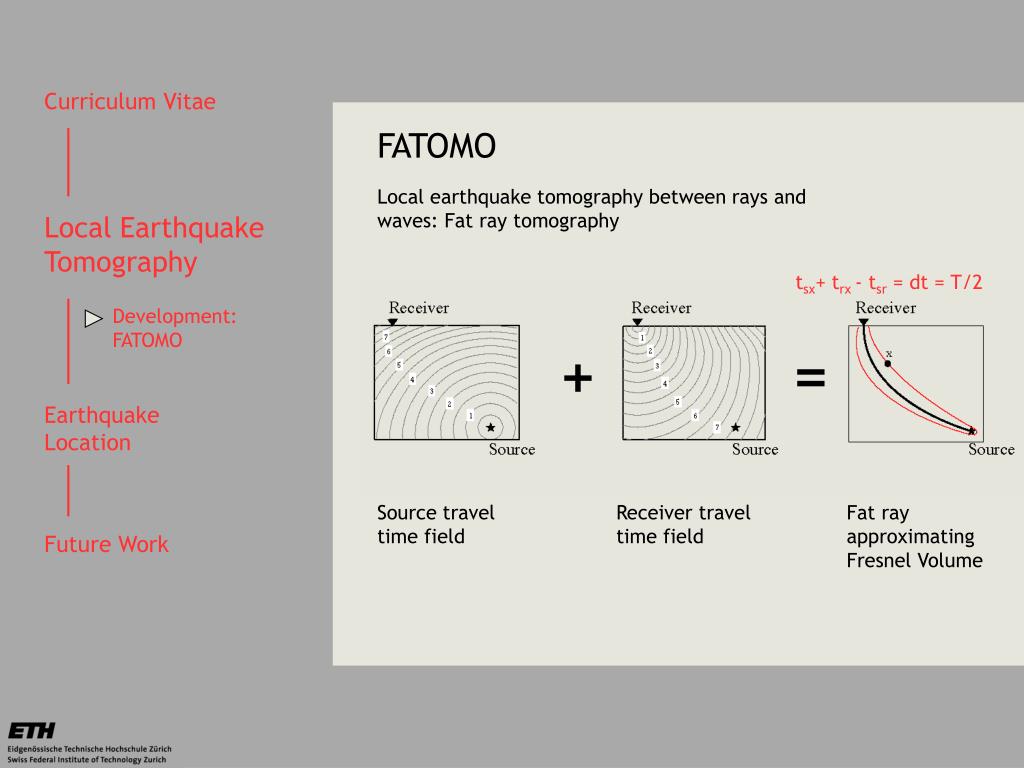

LET - Development (FATOMO)

Curriculum Vitae

FATOMO

Local earthquake tomography between rays and waves: Fat ray tomography

Local Earthquake Tomography

tsx+ trx - tsr = dt = T/2

Development:FATOMO

Earthquake

Location

Source travel time field

Receiver travel time field

Fat ray approximating Fresnel Volume

Future Work


Let development model para l.jpg
LET - Development (MODEL PARA)

Curriculum Vitae

Three-Grid Approach

Local Earthquake Tomography

Numerical grid:

Specifically designed for forward solution

Development:Model Parameterization

Seismic grid:

Resembling Earth structure incorporating a priori information

Earthquake

Location

Future Work

Inversion grid:Specifically designed for optimal sampling of model parameters


Let application chile l.jpg

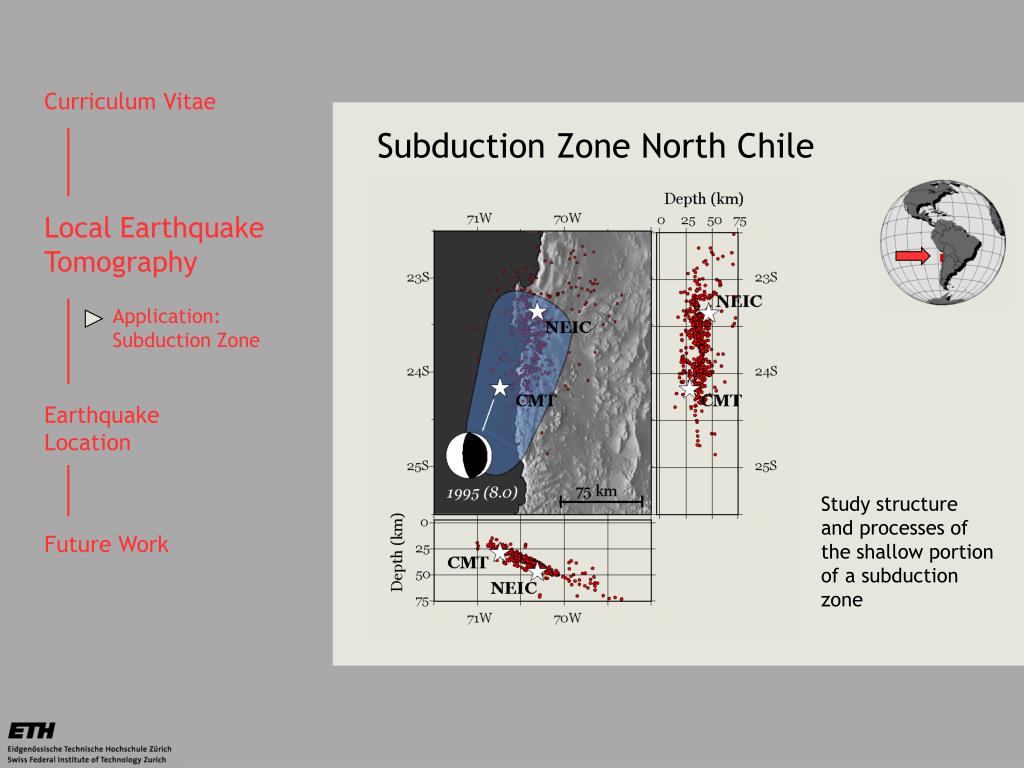

LET - Application (Chile)

Curriculum Vitae

Subduction Zone North Chile

Local Earthquake Tomography

Application:

Subduction Zone

Earthquake

Location

Study structure and processes of the shallow portion of a subduction zone

Future Work


Let application chile6 l.jpg
LET - Application (Chile)

Curriculum Vitae

Subduction Zone North Chile

Three-dimensional P-wave structure

Local Earthquake Tomography

Application:

Subduction Zone

Earthquake

Location

Future Work

Three-dimensional P- to S-wave ratio (Vp/Vs) structure


Let application chile7 l.jpg
LET - Application (Chile)

Curriculum Vitae

Subduction Zone North Chile

Vp/VS ratio

Solution quality

Local Earthquake Tomography

a) early

Application:

Subduction Zone

Earthquake

Location

b) late

Future Work

Time-dependent inversion to image transient process of post-seismic fluid migration


Let application yellowstone l.jpg
LET - Application (Yellowstone)

Curriculum Vitae

Yellowstone Volcanic Field

Local Earthquake Tomography

Application:

Volcanic region

Earthquake

Location

Future Work

Study structure and processes of a large volcanic system


Let application yellowstone9 l.jpg
LET - Application (Yellowstone)

Curriculum Vitae

Yellowstone Volcanic Field

P-wave velocity

P- to S-wave ratio

Local Earthquake Tomography

Application:

Volcanic region

Earthquake

Location

Future Work


Let application yellowstone10 l.jpg
LET - Application (Yellowstone)

Curriculum Vitae

Yellowstone Volcanic Field

Local Earthquake Tomography

Application:

Volcanic region

gas body

crystallizing magma

Earthquake

Location

1985 swarm

fluid

Future Work

Release of fluids generated by magma crystallization


Eq location pdf l.jpg
EQ Location (PDF)

Curriculum Vitae

Posteriori Probability Density Function (PDF)

Grid-search

Oct-Tree importance sampling

Local Earthquake Tomography

Earthquake

Location

non-linear, probabilistic earthquake location

Future Work

confidence contours

scatter clouds

maximum likelihood hypocenter location

68% confidence ellipsoid


Eq location example l.jpg
EQ Location (example)

Curriculum Vitae

Posteriori Probability Density Function (PDF)

1987 05 08 09:59 46.146 N 8.614 E 4.1km

Local Earthquake Tomography

Nobs: 8

RMS: 0.04 s

GAP: 193

Dmin: 1.9 km

Earthquake

Location

non-linear, probabilistic earthquake location

Future Work

Non-linear(3D)

Linear(1D)


Future work l.jpg

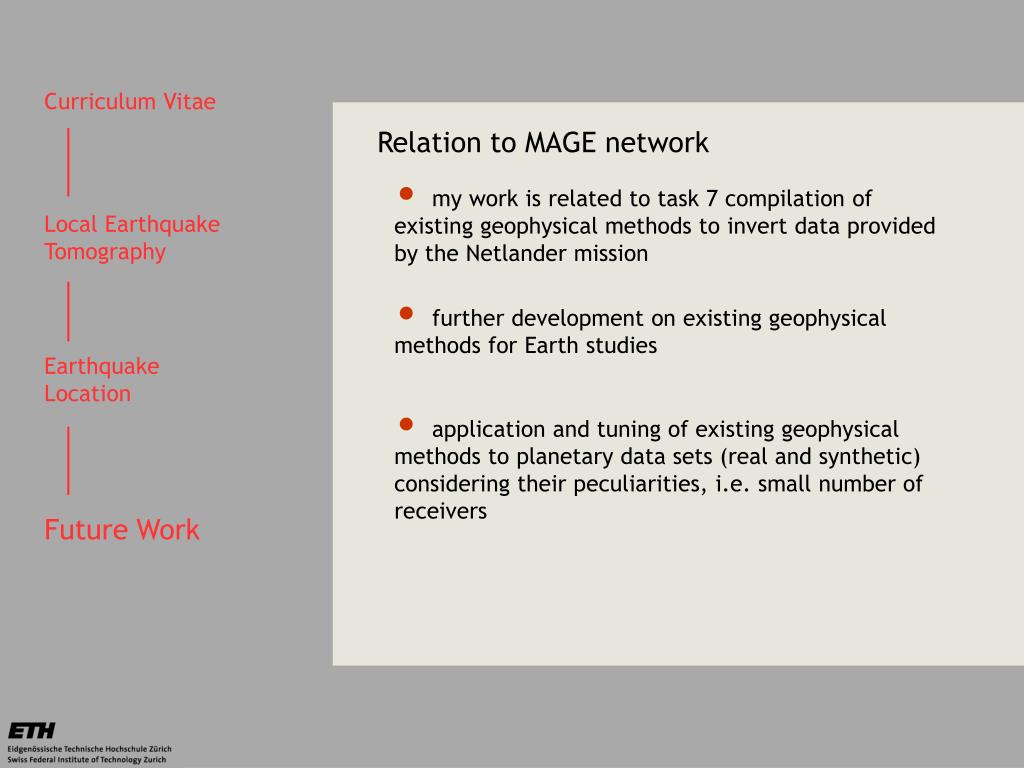

Future Work

Curriculum Vitae

Relation to MAGE network

  • my work is related to task 7 compilation of existing geophysical methods to invert data provided by the Netlander mission

Local Earthquake Tomography

  • further development on existing geophysical methods for Earth studies

Earthquake

Location

  • application and tuning of existing geophysical methods to planetary data sets (real and synthetic) considering their peculiarities, i.e. small number of receivers

Future Work
