Presentation Transcript


J2ee enterprise development and interoperability with non j2ee clients l.jpg

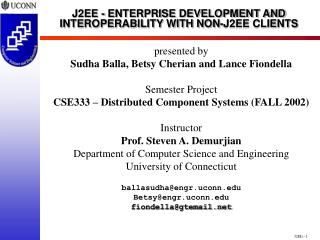

J2EE - ENTERPRISE DEVELOPMENT AND INTEROPERABILITY WITH NON-J2EE CLIENTS

presented by

Sudha Balla, Betsy Cherian and Lance Fiondella

Semester Project

CSE333 – Distributed Component Systems (FALL 2002)

Instructor

Prof. Steven A. Demurjian

Department of Computer Science and Engineering

University of Connecticut

ballasudha@engr.uconn.edu

Betsy@engr.uconn.edu

fiondella@gtemail.net


Organization of presentation l.jpg

Organization of presentation

  • Introduction and Motivation(Lance)

  • Server-side component architectures(Sudha)

  • J2EE Platform overview(Lance)

  • J2EE Standardized Services(Betsy)

  • EJB/CORBA(Sudha)

  • J2EE Patterns(Betsy)

  • The Department of Motor Vehicles Prototype(Sudha)

  • Conclusion(Sudha)


Introduction assessment l.jpg

Introduction - Assessment

  • Java has been around for over 7 years now.

  • Server-side component architectures

  • Microsoft’s .NET product

  • Sun Microsystems’ Java2 Platform Enterprise Edition (J2EE) standard

  • Object Management Group’s CORBA standard


Introduction benefits l.jpg

Introduction - Benefits

  • Enterprise JavaBeans includes both Java/RMI and RMI – IIOP as middleware options.

  • Sun and OMG support EJB/CORBA interoperability and have produced standards for the same.

  • The EJB/CORBA mapping specification and RMI-IIOP relieve EJB from being restricted to the Java platform, enabling EJB components to be exposed as CORBA objects making them well suited for cross-language interoperability.


Motivation se to ee l.jpg

Motivation – SE to EE

  • Large organizations utilize J2EE.


Motivation l.jpg

Motivation - …


Motivation academic perspective l.jpg

Motivation – Academic perspective

  • Maintain an objective research perspective on the state of development of Java2 Enterprise Edition and Java technologies in general.

  • Determine the role Java plays as an educational language, problem-solving skill for the workplace, and research tool for academia.

  • Focus on the classical facilities provides insight into the true maturation of Java.


Server side component architectures overview l.jpg

Server-side Component Architectures(Overview)

  • Issues surrounding server-side development

  • The need for standardized architecture

  • Popular server-side architecture standards

  • Similarities and differences between J2EE and other competing technologies

  • Enterprise Application Development and these technologies


Server side component architectures software components l.jpg

Server-side Component Architectures(Software Components)

  • What are software components?

  • What is a component architecture?

  • Divide-and-conquer approach and its advantages

    • Saves development and deployment time

    • Services could be simply outsourced

    • Users save time by buying instead of building

    • Deployment is strengthened as the common products are developed by domain experts


Server side component architectures server side components l.jpg

Server-side Component Architectures(Server-side Components)

  • What is a server-side deployment?

  • Logical layers in the deployment

    • Presentation Layer

    • Business logic Layer

    • Data Layer

  • Layers are pure abstractions and may or may not correspond to physical distribution

  • a N-tier architecture deployment is one where there is a physical separation between each of the layers

  • Each of the layers could further be decomposed to allow various parts of the system to scale independently


Server side component architectures three tier web based application architecture l.jpg

Server-side Component Architectures(Three-tier Web-based Application Architecture)

Insecure

WEB SERVER

Presentation layer

Firewall + tier boundary

APPLICATION SERVER

WITH COMPONENT CONTAINER

Business logic

Layer

Secure

zone

tier boundary

Database

Data layer


Server side component architectures n tier architectures l.jpg

Server-side Component Architectures(N-Tier Architectures)

PRO:

  • Deployment costs are low

  • Database switching costs are low

  • Low costs in business logic migration

  • Securing deployments using firewalls is possible

  • Resource pooling is possible

  • Performance slowdown is localized

  • Errors are localized

    CON:

  • Communication performance suffers

  • Maintenance costs are high


Server side component architectures demands of a multi tier deployment l.jpg

Server-side Component Architectures(Demands of a multi-tier deployment)

  • Handle lifecycle of the components

  • Perform resource pooling

  • Broker method requests

  • Handle the logic to load-balance communications between each tier

  • Deal with ramifications of two or more clients concurrently accessing the same component

  • Reroute client requests to other machines in case of failure

  • Provide secure environment and deal with unauthorized accesses

    APPLICATION SERVERS WERE BORN AS A SOLUTION TO THESE ISSUES


Server side component architectures role of application servers l.jpg

Server-side Component Architectures(Role of Application Servers)

  • provide the middleware services

  • allow enterprises buy the services

  • aid in rapid the application development

    Anomalies and problems:

  • Vendor specific middleware services

  • Once an application sever is chosen the code is locked to that particular vendor’s solution

  • Reduces portability

  • Hampers commerce of components


Server side component architectures need for a standard l.jpg

Server-side Component Architectures(Need for a standard)

  • The standard would describe a well-formed interface between the application server and the components themselves

  • Components could be managed in a portable way

  • Components could be switched between various application servers

  • Component vendors could be relieved of issues about external overhead such as resource pooling, networking, security etc.

  • Necessary elements of enterprise-class deployments are externalized to application server vendors, providing common services to all component developers


Server side component architectures standards l.jpg

Server-side Component Architectures(Standards)

  • OMG’s CORBA Standard

  • Sun Microsystem’s J2EE Standard

  • Microsoft’s .NET Architecture


Server side component architectures standards j2ee vs net l.jpg

Server-side Component Architectures(Standards – J2EE vs .NET)

Java Client Application

Business System

Web Client

Container

Servlets and JSPs

EJBs

Connectors

Legacy Systems or Databases or Other Business Systems

The J2EE Server-side Architecture


Server side component architectures standards j2ee vs net19 l.jpg

Server-side Component Architectures(Standards – J2EE vs .NET)

Business System

Rich Client Application

Web Client

Container

ASP.NET

.Net Managed Components

Host Integration Server 2000

Legacy Systems or Databases or Other Business Systems

The .NET Server-side Architecture


Server side component architectures standards j2ee vs net20 l.jpg

Server-side Component Architectures(Standards – J2EE vs .NET)

J2EE was found advantageous over .NET:

  • a proven platform while .NET is a rewrite of Microsoft’s previous technologies and introduces risk as with any first-generation technology

  • lets enterprises take advantage of existing hardware they may have

  • gives platform neutrality, including Windows and good portability

  • has a better legacy integration through the Java Connector Architecture (JCA)

  • lets the use of any operating system enterprises prefer, such as Windows, UNIX, or mainframe


J2ee platform overview environment l.jpg

J2EE Platform Overview - Environment


J2ee platform overview components and containers l.jpg

J2EE Platform Overview - Components and Containers


J2ee platform overview java servlet technology 1 l.jpg

J2EE Platform Overview – Java Servlet Technology(1)

  • Mechanism for generating dynamic web content.

  • They may be thought of as Java applets for servers.

  • platform independent, pleasant user interfaces, better performance due to persistent well-defined API for flexibility.


J2ee platform overview java servlet technology 2 l.jpg

J2EE Platform Overview – Java Servlet Technology(2)

  • Web browser  HTTPrequest  web server

  • Web server  gives request to servlet container gives request to specific servlet

  • Servlet receives request object.

  • Servlet processes. (may return a response object)

  • During process, servlet may use a context object to save information usable by other servlets, and read a session object to determine a client state.


J2ee platform overview javaserver pages 1 l.jpg

J2EE Platform Overview – JavaServer Pages(1)

  • Utilize Java Servlet technology to simplify well organized dynamic web content.

  • JSP pages define the static HTML template, and embeds invocations to Java code.

  • Useful and routine operations like embedding dynamic distributed database queries and generation of their associated reports.

  • Hides the complexity of programming in Java from the page designer


Enterprise javabean components 1 l.jpg

Enterprise JavaBean Components(1)

  • A server-side technology for developing and deploying components containing the business logic of an enterprise application.

  • Allows encapsulation of legacy technologies.

  • EJB is a client-neutral standard.


Enterprise javabean components entity beans l.jpg

Enterprise JavaBean Components – Entity Beans

  • Represent persistent objects like database entries.

  • EJB specification indicates that a bean and its references survive a crash of its container. (achieved by storing the state in the database or through serialization)

  • Container provides a class in order to provide meta-data to the client.


Enterprise javabean components message driven beans l.jpg

Enterprise JavaBean Components - Message-Driven Beans

  • A basis for constructing loosely coupled applications capable of communicating indirectly using the queuing and subscription models supported by JMS.

  • More flexible and realistic for heavily congested networks.


Enterprise javabean components session beans l.jpg

Enterprise JavaBean Components - Session Beans

  • Limited lifetime as the name suggests

  • If stateless won’t preserve state between calls

  • Saving and restoring state are properties of stateful session beans


J2ee technology suite l.jpg

J2EE Technology Suite


J2ee standardized services l.jpg

J2EE Standardized Services

  • The containers supporting the J2EE components provide three types of services :

    • Communication

      • RMI-IIOP

      • Java IDL

      • JMS

      • Java Mail

    • Enterprise

      • JDBC

      • JTA

      • JNDI

      • JCA

    • Internet

      • HTTP

      • TCP/IP

      • SSL

      • XML


Communication services l.jpg

Communication Services

  • JavaIDL, RMI-IIOP

    • Allows objects written in Java to to invoke CORBA objects using IIOP. Provides interoperability with CORBA objects.

  • JMS

    • API for asynchronous messaging

  • JavaMail:

    • Provides an API for electronic mail


Enterprise services l.jpg

Enterprise Services

  • JDBC

    • API for DB independent connectivity between J2EE and other datasources

  • JTA

    • The transaction API for J2EE which guarantees transactional integrity

  • JNDI

    • Provides a naming environment, & facilitates directory operations

  • JCA

    • Mandatory with v.1.3 of J2EE. Helps to integrate different EJB containers with different EIS.


Internet services l.jpg

Internet Services

  • For access to Internet services, J2EE supports the following protocols:

    • TCP/IP

    • HTTP

    • SSL

  • XML

    • J2EE v.1.3. supports XML functionality.


Ejb corba interoperability overview l.jpg

EJB – CORBA INTEROPERABILITY(Overview)

  • how EJB and CORBA complement each other

  • where EJB gets its edge over CORBA

  • where CORBA would be still depended on

  • benefits of EJB / CORBA interoperability

  • interoperability scenarios


Ejb corba interoperability corba overview l.jpg

EJB – CORBA INTEROPERABILITY(CORBA Overview)

CLIENT

CORBA Object Implementation

CORBA Object Interface

CORBA Skeleton

CORBA Stub

ORB

ORB

Network via IIOP

CORBA Architecture


Ejb corba interoperability corba services l.jpg

EJB – CORBA INTEROPERABILITY(CORBA Services)

  • COS Naming

  • CORBA Event Service

  • Object Transaction Service (OTS)

  • Concurrency Control Service

  • Security Service


Ejb corba interoperability corba l.jpg

EJB – CORBA INTEROPERABILITY(CORBA)

Advantages:

  • not controlled by one organization

  • language-independent

    Disadvantages:

  • Slow-moving

  • Steep learning curve


Ejb corba interoperability omg s ccm specification l.jpg

EJB – CORBA INTEROPERABILITY(OMG’s CCM Specification)

  • adds component features to CORBA objects

  • similar to EJBs

  • intention that CORBA components and EJBs can reside together

  • a CORBA component could appear as if it were an EJB

  • an EJB could appear as if it were a CORBA component


Ejb corba interoperability why is corba important for ejbs l.jpg

EJB – CORBA INTEROPERABILITY(Why is CORBA important for EJBs?)

  • Legacy Integration

  • Advanced middleware services

  • EJBs exposed to CORBA clients(the highlight of this interoperability section)


Ejb corba interoperability rmi and iiop l.jpg

EJB – CORBA INTEROPERABILITY(RMI and IIOP)

  • Remote Method Invocation(RMI) is a communications package for performing distributed computing in Java

  • default protocol layer for communication used by RMI is Java Remote Method Protocol(JRMP)

  • CORBA uses Internet Inter-ORB Protocol(IIOP) as its default protocol layer for communications

  • RMI and CORBA are very similar technologies


Ejb corba interoperability rmi and corba l.jpg

EJB – CORBA INTEROPERABILITY(RMI and CORBA)

Problems:

  • RMI - built specifically for Java and CORBA – built to allow language interoperability

  • two technologies are highly incompatible

  • major portion of a program coded for the RMI API needs to be rewritten if there is a need to switch to CORBA and vice versa

  • prohibits code reuse

    Ideal Scenarios:

  • Combine client-side Java RMI with server-side CORBA

  • Combine client-side CORBA with server-side Java RMI

    Need: bridge between RMI and CORBA

    Solution: RMI over IIOP


Ejb corba interoperability rmi and corba ideal scenarios l.jpg

EJB – CORBA INTEROPERABILITY(RMI and CORBA – Ideal Scenarios)

RMI CLIENT

CORBA Object Implementation

CORBA CLIENT

RMI Object Implementation

RMI Remote Object Interface

CORBA Object Interface

CORBA Skeleton

RMI Stub

RMI Skeleton

CORBA Stub

ORB

ORB

ORB

ORB

Network via IIOP

Network via IIOP

Scenario #1

Scenario #2


Ejb corba interoperability rmi over iiop l.jpg

EJB – CORBA INTEROPERABILITY(RMI over IIOP)

  • unification of RMI and CORBA

  • RMI run over IIOP (instead of JRMP)

  • delivers CORBA distributed computing capabilities to the Java2 platform

  • speeds distributed application development completely in Java

  • code reusability of programs coded with the RMI API and the CORBA API

  • lessens the impact of switching between the two technologies

  • IIOP eases legacy application and platform integration

  • IIOP makes RMI more robust


Ejb corba interoperability rmi over iiop combinations l.jpg

EJB – CORBA INTEROPERABILITY(RMI over IIOP : Combinations)

SERVER

  • RMI Server with RMI-IIOP skeleton

  • CORBA object implementation

  • RMI Server with RMI-IIOP skeleton

  • CORBA object implementation

CLIENT

  • RMI client with RMI-IIOP Stub

  • RMI client with RMI-IIOP Stub

  • CORBA client

  • CORBA client


Ejb corba interoperability ejb specification l.jpg

EJB – CORBA INTEROPERABILITY(EJB Specification)

  • EJB components must be able to run over both RMI and RMI-IIOP

  • RMI-IIOP as an on-the-wire protocol for EJB components

    Advantages to J2EE:

  • greatly assist the integration of the J2EE environment into existing corporate infrastructures, most of which are quite CORBA intensive

  • EJBs could be exposed as CORBA components that could be accessed by non-Java Clients

  • relieves EJBs off the constraint that they could be only Java based


Ejb corba interoperability scenarios l.jpg

EJB – CORBA INTEROPERABILITY(Scenarios)

RMI-IIOP CLIENT

EJB Object Implementation

CORBA CLIENT

EJB Object Implementation

EJB Remote Object Interface

EJB Remote Object Interface

RMI-IIOP Skeleton

RMI – IIOP Stub

RMI-IIOP Skeleton

CORBA Stub

ORB

ORB

ORB

ORB

Network via IIOP

Network via IIOP

Scenario #1

Scenario #2


Patterns definition l.jpg

Patterns - Definition

  • Definition

    • “.. are a collection of J2EE based solutions to common problems... They extract the core issues of each problem, offering solutions that represent an applicable distillation of theory and practice”.

    • “ a recurringsolution to a problem in a context”

  • Repository of patterns is called the Design Pattern Catalog

  • Documented according to a template

  • Organized in tiers


Patterns tiers l.jpg

Patterns - Tiers

  • Presentation Tier

    • Contains the patterns related to Servlets and JSP technology.

  • Business Tier

    • Contains the patterns related to the enterprise beans technology

  • Integration Tier

    • Contains the patterns related to JMS and JDBC


J2ee pattern relationships l.jpg

J2EE Pattern Relationships


Presentation tier l.jpg

Presentation Tier


Business tier l.jpg

Business Tier


Integration tier l.jpg

Integration Tier


Use of patterns in dmv app l.jpg

Use of Patterns in DMV App

  • The following patterns were used in the DMV Application:

    • Front Controller

    • View Helper

    • Session Façade

    • Transfer Object

    • Transfer Object Assembler

    • Data Access Object


Application prototype overview l.jpg

Application Prototype(Overview)

  • JBuilder7 Enterprise

  • JDataStore

  • BES 5

  • MS VC++ 5.0 (for non-Java Client)

  • MVC architecture

CONTROLLER

(SERVLET & HANDLER)

VIEW

(JSPs & HELPER)

MODEL

(EJBs & Domain classes)


Application prototype use case diagram l.jpg

Application PrototypeUse Case Diagram


Application prototype deployment diagram l.jpg

Application PrototypeDeployment Diagram


Application prototype ejbs in the dmv application l.jpg

Application PrototypeEJBs in the DMV Application


Application prototype class diagram l.jpg

Application PrototypeClass Diagram


Application prototype application flow and patterns 1 l.jpg

Application PrototypeApplication Flow and Patterns(1)

This flow is followed by the Login, Registration

and License Modules


Application prototype application flow and patterns 2 l.jpg

Application PrototypeApplication Flow and Patterns(2)

This flow is followed by the Report Module


Application prototype ejb exposed to non java clients l.jpg

Application PrototypeEJB exposed to non-Java Clients

Non-Java Client

(C++ Application)

TrafficViolation Application

Looks up the SB as a CORBA component

TrafficViolationSB

(Session Bean)

DMV Application

Finds the License and increments its points

LicenseEB

(Entity Bean)

Updates the database

DMV Database


Application prototype ejb exposed to non java clients64 l.jpg

Application PrototypeEJB exposed to non-Java Clients


Application prototype screen shots 1 l.jpg

Application PrototypeScreen shots(1)


Application prototype screen shots 2 l.jpg

Application PrototypeScreen shots(2)


  • Login
