Meteorological Concepts for Soaring in the Western U.S.

Dan Gudgel

Meteorologist/Towpilot/CFIG


Presentation points l.jpg

Presentation Points

  • Weather Information Sources

  • Meteorology Points

  • Synoptic Scale Weather Patterns

  • A Forecast Funnel

  • Miscellaneous Info


1 weather information sources l.jpg

1. Weather Information Sources

Weather Data

  • Internet (use “search engines”)

    • Site addresses change frequently for this medium

    • Customize access list for efficient data retrieval

  • Review AC-006, Aviation Weather

  • Review AC-45E, Aviation Weather Services

  • Other Information Sources


Internet weather data l.jpg

Internet Weather Data

  • Upper Air Temperature Soundings

  • Observed and Forecast Weather Charts

  • Model Forecasts

  • Satellite Imagery

  • Education / Explanations

  • Soaring Category Info


National weather service l.jpg

National Weather Service

<http://www.weather.gov>

  • NWS National Homepage

    • Select area of interest (‘clickable’ map)

  • All Western Region NWS Offices listed

  • Numerous weather links

    • Current weather

    • Forecast models

    • Satellite images

    • Aviation Wx Center

    • Other sites


Forecast systems laboratory l.jpg

Forecast Systems Laboratory

<http://www-frd.fsl.noaa.gov/mab/soundings>

  • Forecast Upper Air Temperature Soundings

  • 40Km grid resolution

  • Out to 16 Hours

  • Spot forecasts

  • (By airport)


Unisys weather l.jpg

Unisys Weather

<http://weather.unisys.com/index.html>

  • Upper Air Temperature Soundings

  • Constant Pressure Charts

  • Model Forecast Charts

  • Education / Explanations


National center for atmospheric research ncar et al l.jpg

National Center for Atmospheric Research (NCAR) [et al.]

<http://www.rap.ucar.edu/weather/>

  • Upper Air Data

  • (Temperature/Relative Humidity/Wind Info)

  • Other weather data


Other weather info sources l.jpg

Other Weather Info Sources

For the Aircraft Category

  • Fixed base operators

  • Soaring Society of America

  • Associated sites

  • Other Sources

    • Newspapers

    • NWS Weather Radio

    • FAA DUATS


2 meteorology points l.jpg

2. Meteorology Points

  • Atmospheric Soundings

  • Great Basin Applications

    • Convection concepts

  • Climate Aspects

  • Local Influences


Sounding basics l.jpg

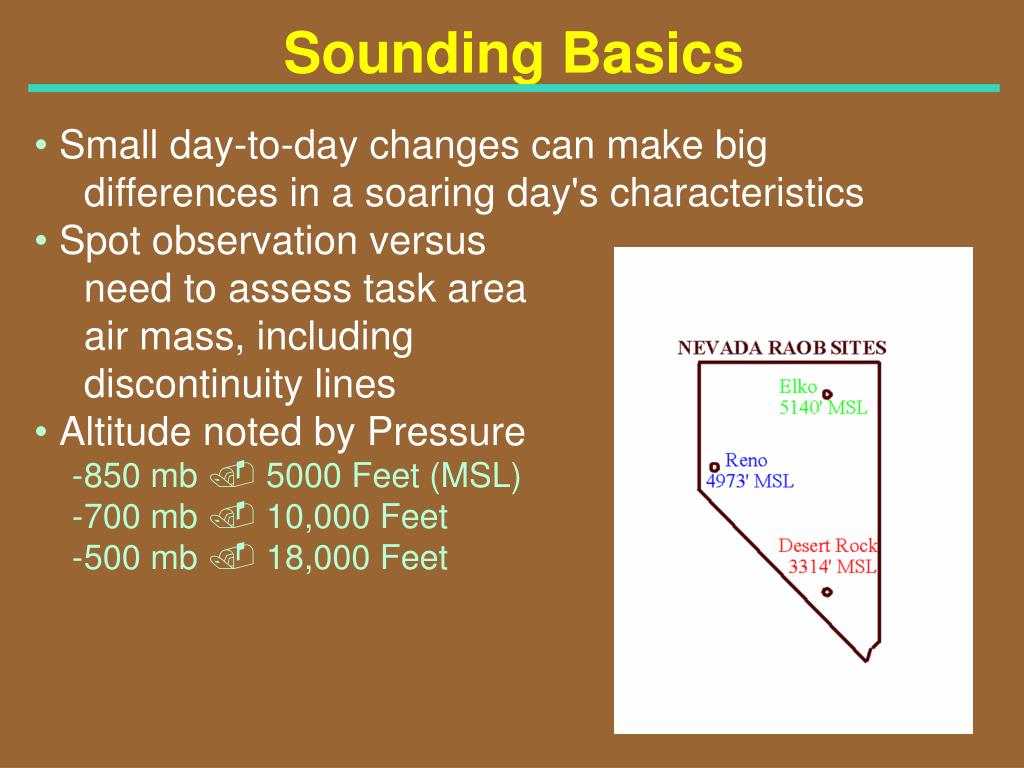

Sounding Basics

  • Small day-to-day changes can make big

    • differences in a soaring day's characteristics

  • Spot observation versus

    • need to assess task area

    • air mass, including discontinuity lines

  • Altitude noted by Pressure

    • 850 mb . 5000 Feet (MSL)

    • 700 mb . 10,000 Feet

    • 500 mb . 18,000 Feet


Sounding sources l.jpg

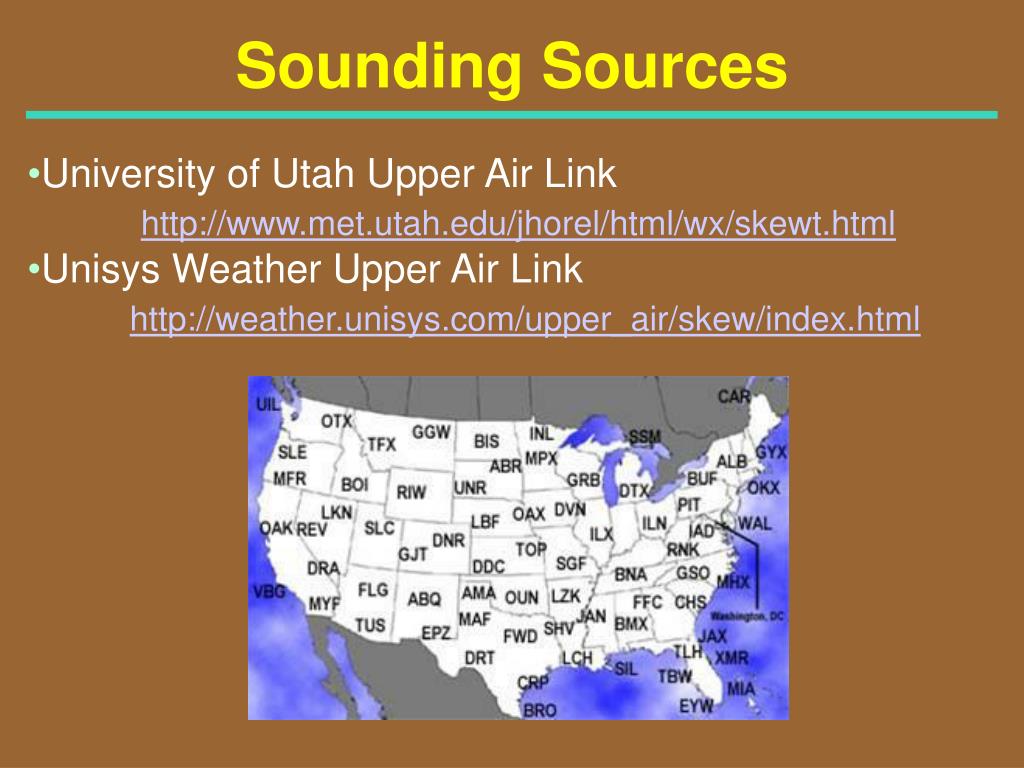

Sounding Sources

  • University of Utah Upper Air Link

    http://www.met.utah.edu/jhorel/html/wx/skewt.html

  • Unisys Weather Upper Air Link

    http://weather.unisys.com/upper_air/skew/index.html


Lapse rate definitions l.jpg

Lapse Rate Definitions


Lapse rates l.jpg

Lapse Rates

Dry

and

Moist

Adiabatic

14


Definitions stable unstable l.jpg

Definitions - Stable/Unstable

Dry Atmospheric Conditions

A - Temperature decreasing greater than Dry Adiabatic

Lapse Rate denotes unstable atmospheric conditions

+

A

B

Altitude

B - Temperature not decreasing as fast as Dry Adiabatic Lapse Rate denotes more stable atmospheric conditions

(

d

+

Temperature


Temperature inversions l.jpg

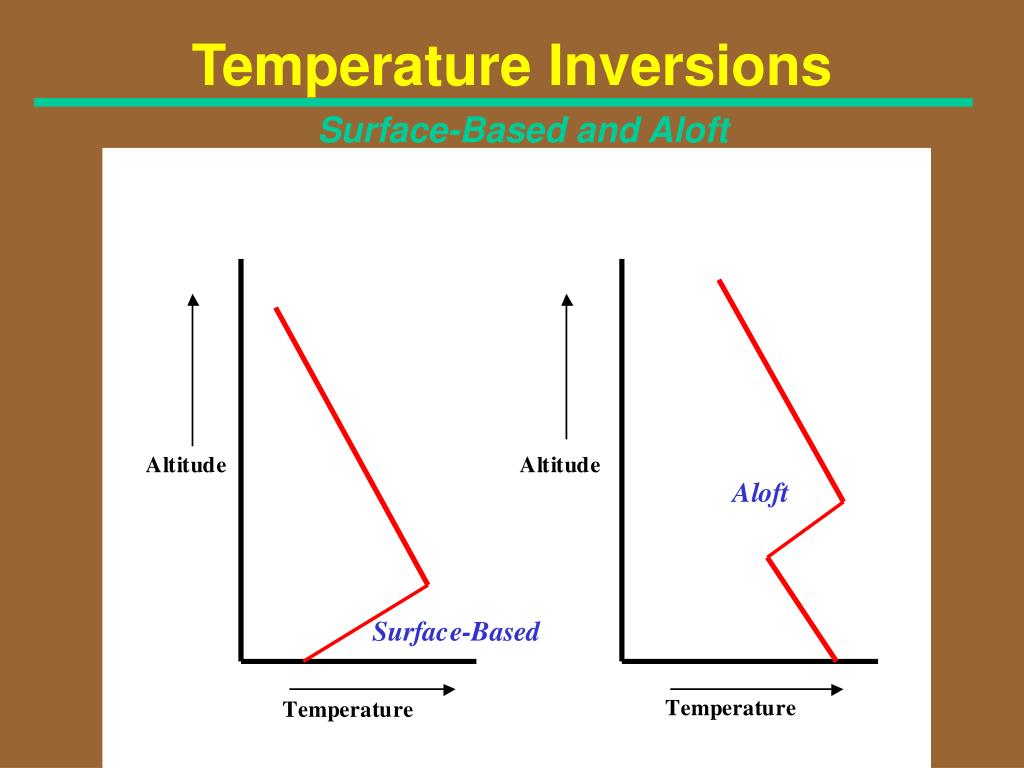

Temperature Inversions

  • Surface-Based and Aloft

16


Wind shear l.jpg

Wind Shear

  • Wind velocity is a change in speed and/or direction

  • Temperature inversions are boundaries of air layers

  • Shear zone may not be deep or turbulent but...

  • Each layer of aircan have a different

    characteristics:

    - Wind velocity

    - Moisture

    - Parameter gradients

+

Wind

SHEAR

Altitude

ZONE

Wind

+

Temperature


Profiles l.jpg

Profiles

  • A mixed atmosphere is near-adiabatic (left)

  • Subsidence from high pressure “caps” convection but high enough to facilitate soaring over terrain (right)

Alt.

Alt.

d

d

18

Temperature

Temperature


Surface based inversion established with time l.jpg

Surface-Based Inversion Established with Time

d

Alt.

(0600 LT)

19

(0100 LT)

(2000LT)

(1700 LT)

Time of Day

Temperature


Surface based inversion erosion with time l.jpg

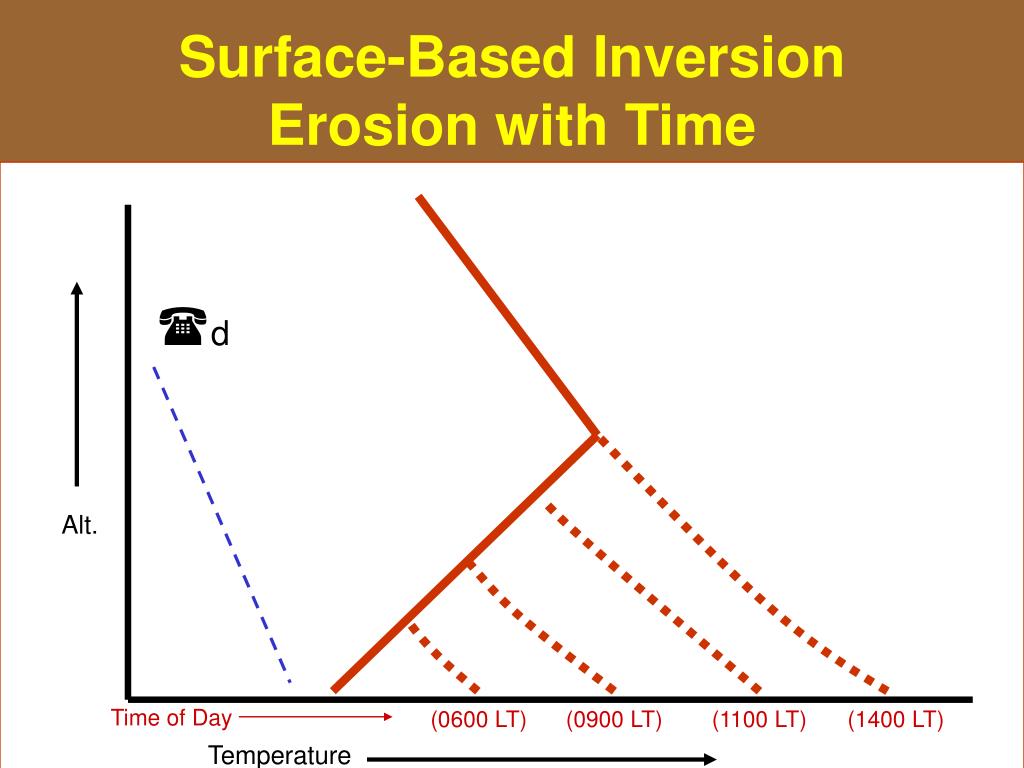

Surface-Based Inversion Erosion with Time

d

Alt.

Time of Day

20

(0600 LT)

(0900 LT)

(1100 LT)

(1400 LT)

Temperature


Cloud base moisture layers l.jpg

Cloud Base / Moisture Layers

  • T / DP Closure

    • Possible Cloud

    • Layers

  • Moist Adiabatic

  • Lapse Rate


The drying process l.jpg

The Drying Process

Sinking, Heating

Drying

Moisture, Deficit

Air

10000 Ft MSL

Rising,Cooling

Condensing

5K Ft

Sierra

Nevada

White

Mtns

5000 Ft MSL

Owens

Valley

Great

Basin

MSL

San Joaquin Valley


De stabilizing process l.jpg

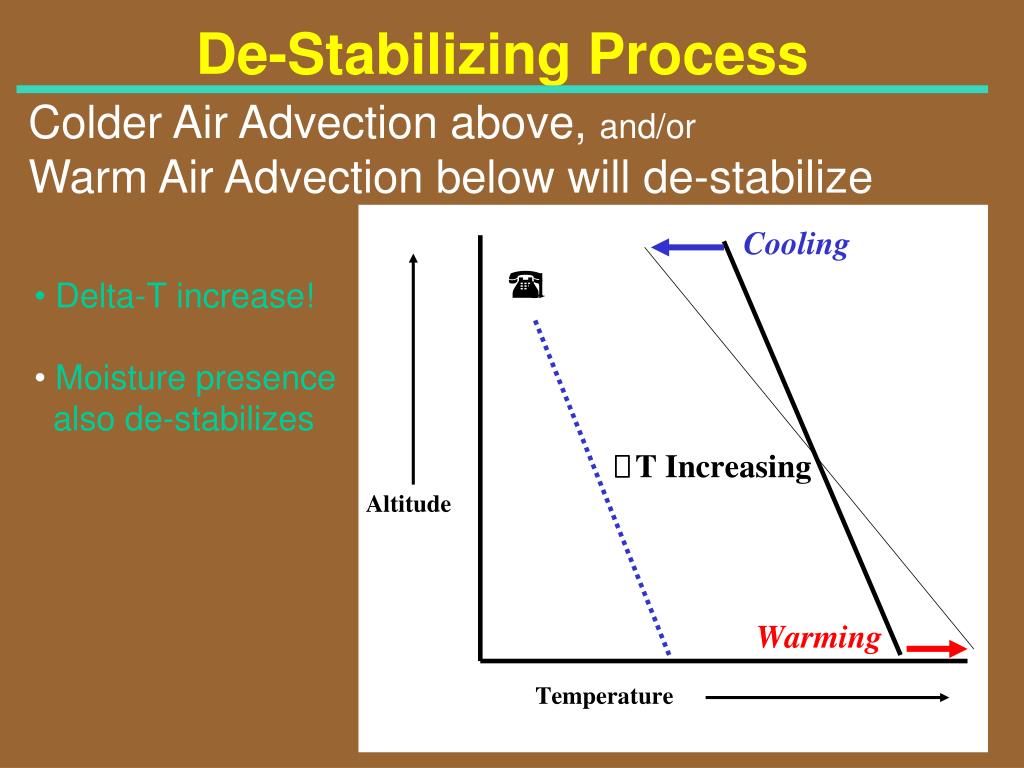

De-Stabilizing Process

Colder Air Advection above, and/or

Warm Air Advection below will de-stabilize

  • Delta-T increase!

  • Moisture presence

  • also de-stabilizes


Basin thunderstorm microbursts l.jpg

Basin Thunderstorm / Microbursts

  • Develop Adjacent cells

  • Classic short duration

  • 60Kt+ Sink Rates

  • Regardless of cell size

  • Wind shifts

  • Degrade ceiling and visibility


Mojave desert downburst l.jpg

Mojave Desert Downburst

Courtesy of Caracole Soaring, California City, CA)

25


Microburst sounding l.jpg

Microburst Sounding


Thunderstorm activity 1 l.jpg

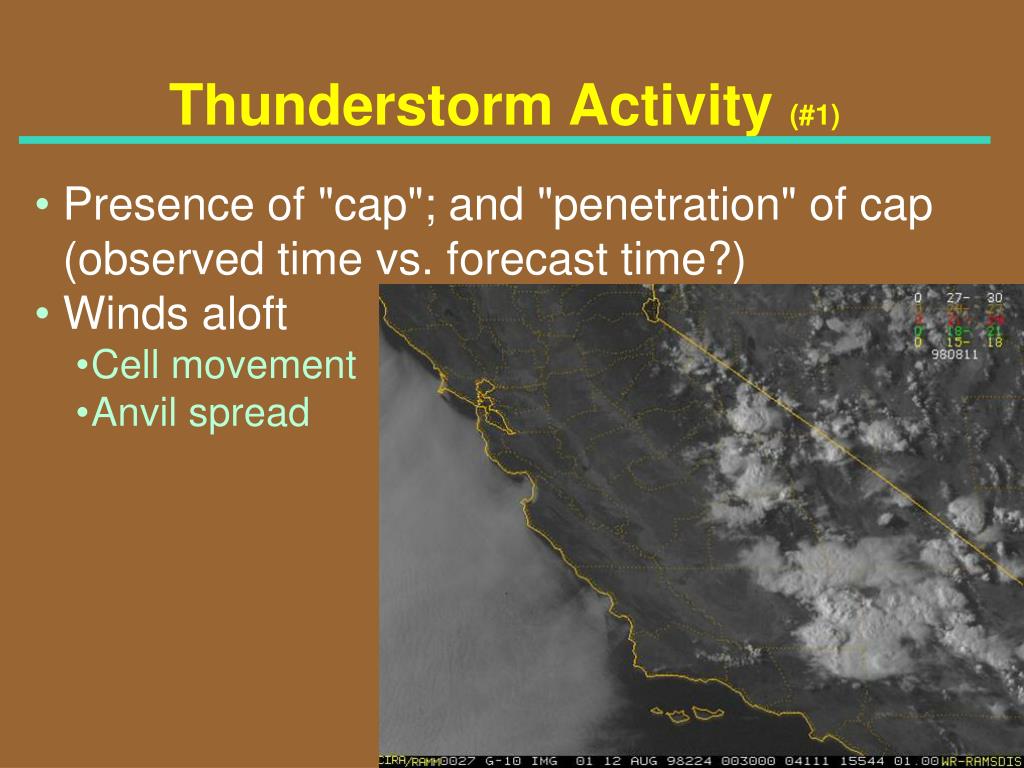

Thunderstorm Activity (#1)

  • Presence of "cap"; and "penetration" of cap (observed time vs. forecast time?)

  • Winds aloft

    • Cell movement

    • Anvil spread


Thunderstorm activity 2 l.jpg

Thunderstorm Activity (#2)

  • Air mass Thunderstorms

    • Favored spots

  • Outflow


Radar l.jpg

Radar

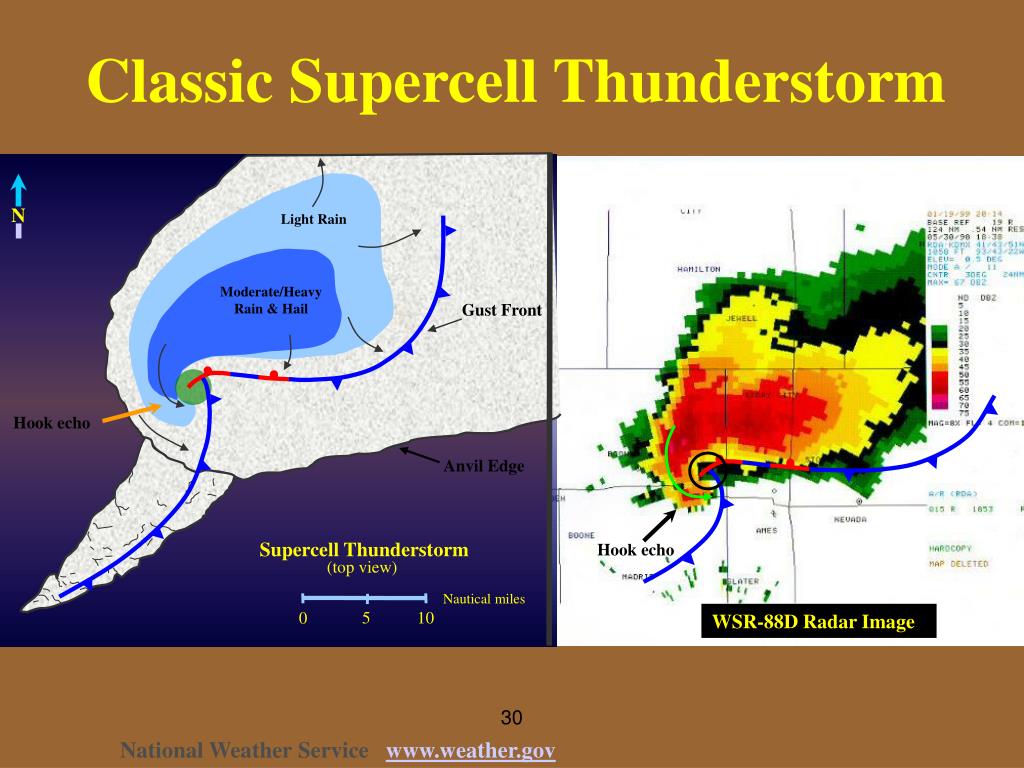

Classic supercell thunderstorm l.jpg

N

Hook echo

Classic Supercell Thunderstorm

Light Rain

Moderate/Heavy Rain & Hail

Gust Front

Hook echo

Anvil Edge

Supercell Thunderstorm

(top view)

Nautical miles

10

5

0

WSR-88D Radar Image

30

National Weather Service www.weather.gov


Convection circulation l.jpg

Convection Circulation

Temperature Differences

  • Uneven heating leads to differing air density and ultimately supports a thermal circulation

  • Terrain/slope contributions

  • Surface heating capacity = f(ground and lower air mass moisture content)


Elevated thermal source l.jpg

Elevated Thermal Source

Great Basin Mountains

  • Mountain slopes normal to incoming energy

  • Less attenuation

    • Air density

    • Moisture

    • Pollutants

  • Less mass of air to heat for greater buoyancy


Climate and other influences l.jpg

Climate and Other Influences

  • Climate and Terrain Considerations

  • Modifying Influences and Contributions

  • Thunderstorm Indices


Climate and terrain l.jpg

Climate and Terrain

Great Basin

  • Time of year

    • Diurnal temperature spread

  • Humidity factors

  • Terrain rising aspects (and TAS)


Sunset sunrise normal temps l.jpg

Sunset / Sunrise / Normal Temps

Reno, NV

  • Sunrise / Sunset

    • June 1 5:34 AM PDT / 8:20 PM PDT

    • July 1 5:35 AM PDT / 8:30 PM PDT

    • Aug 1 5:58 AM PDT / 8:12 PM PDT

    • Sep 1 6:27 AM PDT / 7:30 PM PDT

  • Normal Maximum/Minimum Temperatures

    • June 81.5 / 44.3 ()T=37.2F)

    • July 91.0 / 49.3 ()T=41.7F)

    • Aug 89.7 / 47.2 ()T=42.5F)


Great basin temps l.jpg

Great Basin Temps


Slide37 l.jpg

37


The drying process38 l.jpg

The Drying Process

Sinking, Heating

Drying

Moisture, Deficit

Air

10000 Ft MSL

Rising,Cooling

Condensing

5K Ft

Sierra

Nevada

White

Mtns

5000 Ft MSL

Owens

Valley

Great

Basin

MSL

San Joaquin Valley


Major modifying influences 1 l.jpg

Major Modifying Influences(#1)

  • Washoe Zephyr

  • Nevada Sinks

  • Mono Lake Shear

  • Basin Air

  • Terrain "Holes"


Major modifying influences 2 l.jpg

Major Modifying Influences(#2)

  • Topaz Flow

  • Mammoth Lakes

  • June Lake


Pressure patterns l.jpg

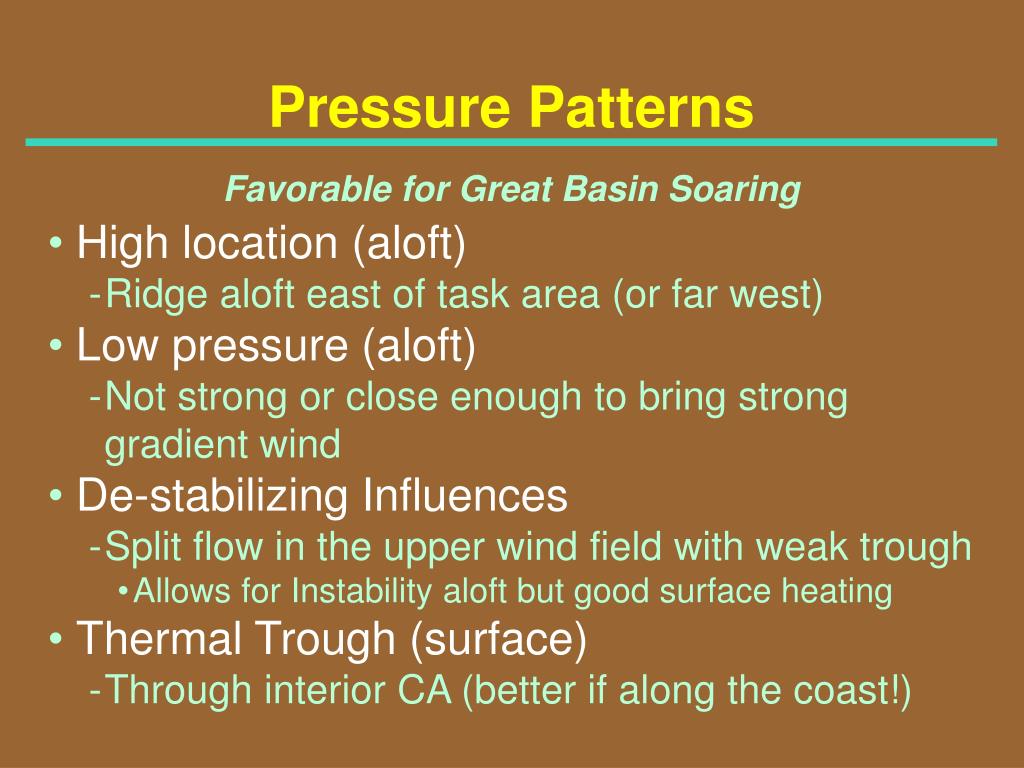

Pressure Patterns

Favorable for Great Basin Soaring

  • High location (aloft)

    • Ridge aloft east of task area (or far west)

  • Low pressure (aloft)

    • Not strong or close enough to bring strong gradient wind

  • De-stabilizing Influences

    • Split flow in the upper wind field with weak trough

      • Allows for Instability aloft but good surface heating

  • Thermal Trough (surface)

    • Through interior CA (better if along the coast!)


Pressure gradients 1 l.jpg

Pressure Gradients(#1)

Stable Air Movement to the Western Great Basin

  • Great Basin to Interior California

    • 4 mb Reno to Sacramento delta-P inhibits Washoe Zephyr development


Pressure gradients 2 l.jpg

Pressure Gradients(#2)

Stable Air Movement to the Western Great Basin

  • South CA Coast to Desert Interior

    • Depth of marine layer greater than 1500' MSL

    • 3+ mb Los Angeles (LAX) to Daggett (DAG)

  • Central CA Coast to Desert Interior

    • 6+ mb San Francisco to Las Vegas

    • Depth of marine layer greater than 2000' MSL


  • Thermal detractors l.jpg

    Thermal Detractors

    Macro-scale Level

    • <Cirrus Anvil from Thunderstorms

    • <Cirrus

      • Around jet stream cores

      • Small pressure perturbations / waves

  • <Convective Cloud Cover

    • More than 50% sky cloud cover

  • <Other

    • Relative Humidity gradients


  • Thermal enhancers l.jpg

    Thermal Enhancers

    Great Basin

    • <Rising terrain steps to southeast of Minden

      • Minden to Patterson/Bridgeport +2000'

      • Patterson to Whites +1000' and more

  • <Convergence / Shear

    • Mono Lake Shear Line

    • Flying “M” Shear Line

  • <Small air basins

    • Fixed volume of air to heat (valley vs. plain)

  • <Other

    • Summer wave or wave-encouraged cloud streets


  • Mojave desert shearlines l.jpg

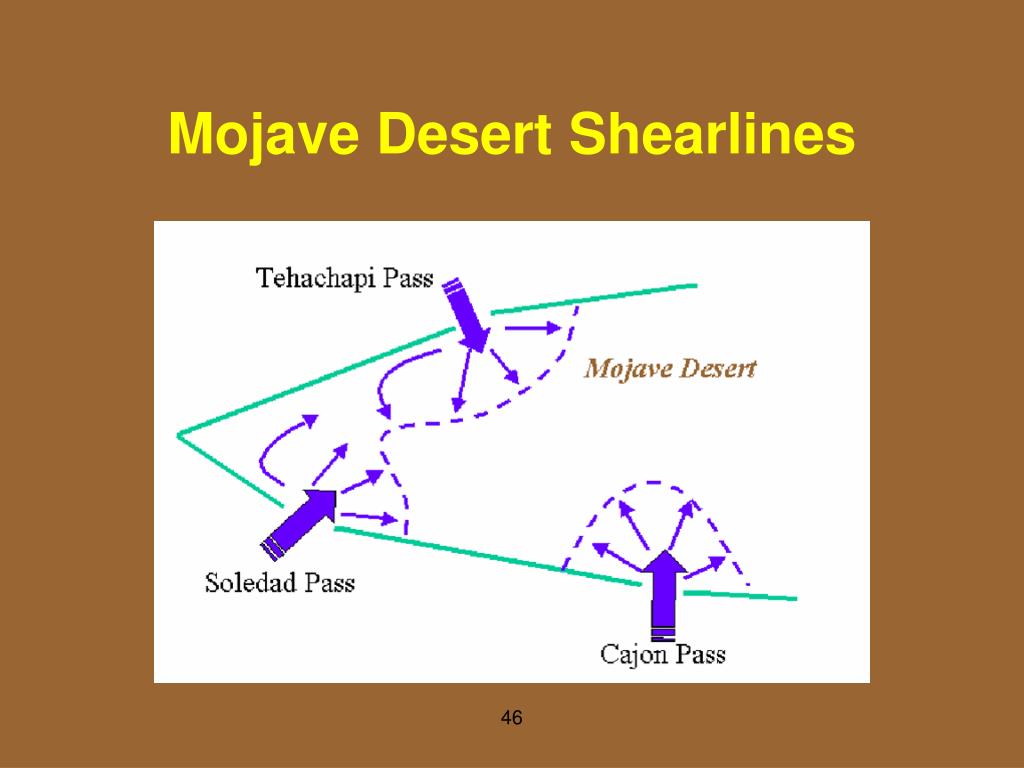

    Mojave Desert Shearlines

    46


    Mono lake shear line l.jpg

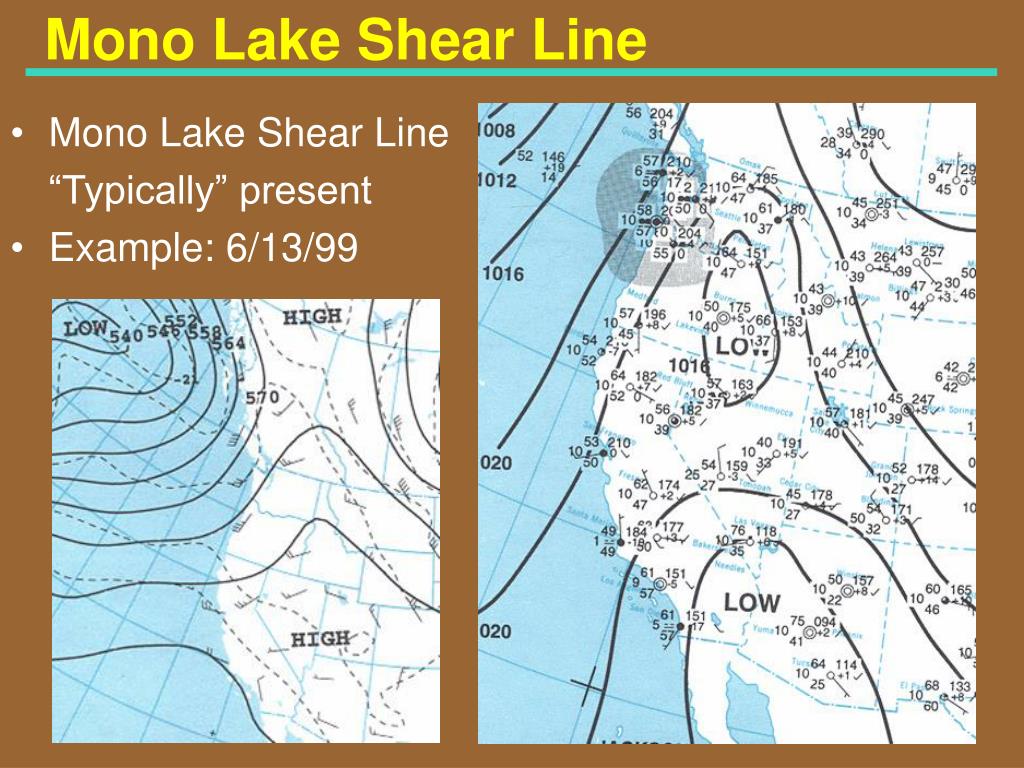

    Mono Lake Shear Line

    • Mono Lake Shear Line

    • “Typically” present

    • Example: 6/13/99

    47


    Mono lake shear line48 l.jpg

    Mono Lake Shear Line

    48


    Mono lake shear line49 l.jpg

    Mono Lake Shear Line

    49


    Flying m shear line l.jpg

    Flying “M” Shear Line

    • Flying “M” Shear Line

    • “Typically” present

    • Example: 6/14/99

    50


    Flying m shear line51 l.jpg

    Flying “M” Shear Line

    51


    Flying m shear line52 l.jpg

    Flying “M” Shear Line

    52


    Mountain wave l.jpg

    Mountain Wave

    53


    Mountain wave54 l.jpg

    Mountain Wave

    54


    Mountain wave55 l.jpg

    Mountain Wave

    • Wave Presence for

    • Long Distance Flight

    • Example: 6/15/99

    55


    Moisture surges l.jpg

    Moisture Surges

    Warm Season Sources

    • Southwest U.S. Monsoon

      • Low level and/or mid-level

  • Significantly deep trough developing moisture field due to the dynamics

    • But a southwest flow is generally a very dry flow

  • East Pacific hurricane activity

    • Mid/High Clouds with a major hurricane release of its accompanying moisture


  • East vs west great basin l.jpg

    East vs. West Great Basin

    • Time of Year Sub-Tropical Moisture Progression

      • Parawon UT (Late June/Early July)

      • East NV (Mid-Late July)

      • West NV (Late July/Early August)

    • Slower Thermal Processes

      • Dry west; Slower start per moisture-deficit

      • More attenuation; CA and local “Haze”

      • West NV, slightly lower terrain

    • West Great Basin Enhancements

      • Shear line influences prevalent within 50 s.m. of the Sierra Nevada Front

    57


    Soaring f moisture changes l.jpg

    Soaring = f(Moisture Changes)

    Hypothesis: Annual Climate Changes Impact Soaring

    • Moisture Contribution

      • Dew Points rise to the southeast over the Great Basin

    • La Nina/El Nino Influences

      • La Nina

        • Dry south; Thunderstorms develop less frequently

      • El Nino

        • Moist ground delays (thermal) soaring season

        • Upon initiation, more thunderstorm activity

      • Other Climatic Oscillations’ Impact?

        • Arctic Oscillation, Pacific Decadal, Madden-Julian Oscillation

    58


    Infrared satellite imagery l.jpg

    Infrared Satellite Imagery

    • Cloud top temperature

    • Good delineator for high clouds


    Water vapor satellite imagery l.jpg

    Water Vapor Satellite Imagery

    • Moist and dry air boundaries

    • Active convection often along interface

    • Determine Raob representativeness of task area?


    3 synoptic scale weather patterns l.jpg

    3. Synoptic-Scale Weather Patterns

    Weather Types Favorable to Long Distance Soaring

    • Type #1: Four-Corner High

    • Type #2: Strong Ridge

    • Type #3: Low Center, Trough,

    • Short-wave Proximity

    • Type #4: Building Ridge Aloft


    Type 1 the four corner high l.jpg

    Type #1: The Four-Corner High

    • High pressure centered aloft near the Four Corner area of the Southwest U.S.

    • Most recognized, "Classic" long flight pattern

    • Good low level heating de-stabilizes the air mass

      • Light surface wind

      • Lower layer warm air advection

    • Monsoon moisture tap ... therefore usually not a long-lived pattern

    • Good soaring ... but days get truncated with afternoon TSTMs... often widespread


    Type 1 6 18 88 l.jpg

    Type #1: 6/18/88

    ASI to Keeler and return


    6 18 88 raobs l.jpg

    6/18/88 Raobs

    • WMC 94/50

    • RNO 90/58

    • TPH 83/52

    • LAS 98/78


    Type 2 strong ridge l.jpg

    Type #2: Strong Ridge

    • Light wind

    • Low level heating

    • Thermal trough well to the west of task area

    • Impulse aloft over ridge axis; or,

    • Ridge axis aloft east of the task area


    Type 2 8 9 96 l.jpg

    Type #2: 8/9/96

    Long-lived, extraordinary pattern

    Numerous 1000Km flights

    Over a 4-day period


    8 9 96 l.jpg

    8/9/96

    WMC 98/48RNO 95/53TPH 95/61LAS 99/80


    Type 3 low center trough or short wave proximity l.jpg

    Type #3: Low Center, Trough, or Short Wave Proximity

    • Ridge axis to the east; Trough axis proximity

    • De-stabilizing by cold air advection aloft

    • But light wind and/or split in the jet aloft

    • Thermal trough closer to NV; but...

    • Low level Zephyr washout delayed

    • Still able to heat lower levels

    • Prevalent pattern for long distance soaring!


    Type 3 7 7 88 l.jpg

    Type #3: 7/7/88

    Flight of 350 miles


    7 7 88 raobs l.jpg

    7/7/88 Raobs

    <WMC 84/54

    <RNO 84/49

    <TPH 90/56

    <LAS 103/77


    Type 3 a proximity of low pressure center l.jpg

    Type #3(a): Proximity of Low Pressure Center

    <Low off Southern California coast provides cooler air aloft upstream to de-stabilize

    <Elevated heat source influence contributions


    Type 3 a 6 19 93 l.jpg

    Type #3(a): 6/19/93

    1000Km flights from Truckee

    And Minden area


    6 19 93 raobs l.jpg

    6/19/93 Raobs

    <WMC 86/47

    <RNO 88/57

    <TPH 86/54

    <LAS 94/72


    Type 4 building ridge aloft l.jpg

    Type #4: Building Ridge Aloft

    2 Examples / Next 4 Slides

    • <Temperature trend upward

      • Surface temps climbing faster than aloft

      • Subsidence not strong

      • Large diurnal temperature spread in transition

  • <Light wind aloft

    • Height gradient small

  • <Suppression of westerly washout


  • Type 4 6 13 88 l.jpg

    Type #4: 6/13/88

    500 Mile Flight


    6 13 88 raobs l.jpg

    6/13/88 Raobs

    <WMC 81/42

    <RNO 81/27 (!!!)

    <TPH 78/M

    <LAS 95/70


    Slide77 l.jpg

    Map Types also varied as season passed!

    77


    4 weather forecasting l.jpg

    4. Weather Forecasting

    • Forecast Funnel

    • Soaring Indices

    • Automated Soaring Forecasts

      • Dr. Jack and BLIPMAP

      • Other Automated Forecasts

  • NWS IFPS (Gridded Data)


  • A glider pilot s forecast funnel l.jpg

    A Glider Pilot’s Forecast Funnel

    A Process of Soaring Forecast Refinement

    • Site Climate

    • Outlook Forecasts

    • Extended and Zone Forecasts (2-7 Day)

    • Persistence

    • Flight Day


    Soaring indices 1 l.jpg

    Soaring Indices(#1)

    Great Basin

    • Thermal Index

      • Lift = f()T)


    Soaring indices 2 l.jpg

    Soaring Indices (#2)

    Great Basin

    • Soaring Index

      • Lift = f(Convection Altitude and )T)


    Soaring indices 3 l.jpg

    Soaring Indices (#3)

    Great Basin

    • Vertical Totals [)T(deg C) 850 mb to 500 mb]

      • Upper 20s average to good

      • 30 to 34 very good

      • 35+ excellent (too unstable many times)


    Instability indices 1 l.jpg

    Instability Indices(#1)

    Great Basin

    • K-Index

      • Uses Vertical Totals and 2 fixed reference levels

      • )T(C) + 850 dew point(C) - 700 dew point depression(C)

      • 5+ = some cumulus possibilities

      • Thunderstorms increase in the 10-15 range


    Instability indices 2 l.jpg

    Instability Indices (#2)

    Great Basin

    • Lifted Index(LI) and Showalter Index(SI)

      • Lower layer moisture influences on the convection process / thunderstorm indicator

      • > 10 stable (weak convection)

      • < -4 too unstable (severe weather)


    Thermal lift indices work l.jpg

    Thermal Lift Indices Work

    • Thermal Index (Williams/Higgins)

    • Maximum Lift

      (Lindsay/Lacy)

    • Soaring Support (Aldrich/Marsh)

    • Soaring Index

      (Armstrong-Hill)

    85


    Wave strength forecasting l.jpg

    Wave Strength Forecasting

    Wave Nomogram(Herold/Armstrong)

    86


    Traditional soaring forecasts l.jpg

    Traditional Soaring Forecasts

    • Persistence

    • Nowcasting

      • Soundings

      • Satellite

      • Analysis

    • Algorithm Use

    87


    Thermal index prediction tip dr john w jack glendening l.jpg

    Thermal Index Prediction (TIP)Dr. John W. (Jack) Glendening

    • Estimate for the Current Day Thermal Soaring Potential

    • Two Day Thermal Soaring Outlook

    • Several Sites

    • Mountain Top Experiment (Walker Ridge)

    URL:http://www.drjack.net/TIP/index.html

    URL:http://www.drjack.net/TIPEX/index.html

    88


    Boundary layer information predictor maps blipmap l.jpg

    Boundary Layer Information Predictor Maps(BLIPMAP)

    • Thermal Soaring Parameters (over a geographic region)

    • -Numerical Model Outputs

    • General Air Mass Lift

    • Single Time or Sequence

    • URL:www.drjack.net/BLIPMAP/index.html

    89


    Wind information predictions windip l.jpg

    Wind Information Predictions (WINDIP)

    (Simple Mountain Wave Prediction)

    • “Alert” WINDIP E-Mail List

    • Assumptions

    • Longer Forecast Time Predictions

    • URL:http://www.drjack.net/WINDIP/index.html

    90


    Linear wave interpretation page lwip l.jpg

    Linear Wave Interpretation Page (LWIP)

    • Description

    • Interpretation

    • Notes

    • Links

    URL:http://www.drjack.net/LWIP/index.html

    91


    Automated thermal soaring forecasts l.jpg

    Automated Thermal Soaring Forecasts

    Walt Rogers (WX), MIC CWSU ZLA

    • Two Parts:

      1.Pure Model Output (top portion)

      2.NWS Forecast Temps as base (lower portion)

    • Limitations

    • NWS Websites

    URL:http://www.weather.gov/*****

    where ***** is NWS Office Name, I.e., Hanford, Oxnard, etc.

    92


    Interactive forecast preparation system ifps l.jpg

    Interactive Forecast Preparation System (IFPS)

    • “Flagship” Products Not Text

    • -Forecasters Edit Gridded Data

    • Graphical Products

    • -Customer Requested Output

    • Man-Machine Mix

    93


    Gridded data l.jpg

    Gridded Data

    Graphical Display of Requested Weather Parameter(s)

    94


    5 miscellaneous information l.jpg

    5. Miscellaneous Information

    • Aero-medical Considerations


    Aeromedical considerations l.jpg

    Aeromedical Considerations

    Soaring good enough that...

    <Oxygen requirements

    <Water

    <Sun protection


    Meteorological concepts for soaring in the western u s97 l.jpg

    Meteorological Concepts for Soaring in the Western U.S.

    Dan Gudgel

    Meteorologist/Towpilot/CFIG

    134 South Olive Street

    Lemoore, CA 93245

    (w)559-584-3752 ext.223

    (h)559-924-7134

    <[email protected]>


  • Login
