Presentation Transcript
Slide1 l.jpg

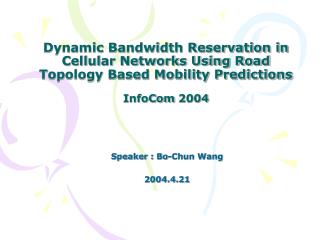

Dynamic Bandwidth Reservation inCellular Networks Using Road Topology Based Mobility PredictionsInfoCom 2004

Speaker : Bo-Chun Wang

2004.4.21


Outline l.jpg
Outline

。Motivation

。Relative work

。Road topology based mobility prediction

。Dynamic bandwidth reservation scheme

。Simulations and results


Motivation l.jpg
Motivation

Forced termination

is worse than blocking

a new call !!

Insufficient bandwidth

Forced termination

i.e., handoff “dropped”

  • Prioritize handoffs by reserving bandwidth

    • Tradeoff  more news calls blocked


Motivation4 l.jpg
Motivation

PFT = Forced termination probability

PCB = New call blocking probability

Static: PFT = 0.01, PCB =0.15

Reservation

Dynamic: PFT = 0.01, PCB = 0.10

time

  • Handoff arrivals are random

    • Dynamic reservation more efficient

  • No knowledge of future: use prediction

    • Accuracy   reservation efficiency 


Outline5 l.jpg
Outline

。Motivation

。Relative work

。Road topology based mobility prediction

。Dynamic bandwidth reservation scheme

。Simulations and results


Relative work l.jpg
Relative Work

  • Signal Strength

  • Mobility(direction,speed)

  • History=>probability(user,BS)


Shortcoming in previous work l.jpg
Shortcoming in Previous Work

  • Assumes hexagonal/circular boundary

    • Actual cell boundary fuzzy & irregularly shaped

  • Road topology information not utilized

    • Could potentially yield better accuracy


Outline8 l.jpg
Outline

。Motivation

。Relative work

。Road topology based mobility prediction

。Dynamic bandwidth reservation scheme

。Simulations and results


Advantages of knowing road topology l.jpg
Advantages of KnowingRoad Topology

Candidate Cell A

Candidate Cell B

Handoff regions

Reserve more in Cell A!

Probability 0.1

Probability 0.9

Where to reserve bandwidth?


Preliminaries l.jpg

B

A

Road segment (A,B)

Preliminaries

  • Each BS keeps a database of the roads within its coverage area

    • Roads are divided into “road segments”

    • Topology extracted from digital maps


Database entries l.jpg

All segments

Handoff-probable

segments only

Database Entries

  • For each road segment:

    • Neighboring segments

    • Transition probability to each neighbor

    • Statistical data:

      • Transit time

      • Probability of handoff

      • Time spent before handoff

      • Handoff locations

      • Target handoff cell


Modeling segment transition l.jpg
Modeling Segment-transition

  • Transition between road segments modeled as 2nd order Markov processes

F

F

D

D

E

E

MT1 & MT2 have different probabilities of entering EF

MT1

MT1

C

C

MT2

MT2

B

B

J

J

I

I

A

A


Prediction output l.jpg
Prediction Output

[ctarget, w, tLPL(L), tUPL(U)]

4-tuple:

Lower prediction limit

Predicted target handoff cell

Upper prediction limit

Prediction weight

Derived using previously observed prediction errors

Time tLPL(L):P [actual handoff time  tLPL(L)] = L

Time tUPL(U):P [actual handoff time  tUPL(U)] = U


Prediction output14 l.jpg
Prediction Output

Can have multiple 4-tuples per MT

[ctarget, w, tLPL(L), tUPL(U)]

4-tuple:

(One for each possible path to each handoff region)

Handoff region

w

  • ctarget: Target cell if handoff occurs on EF

  • w:P(ABBEEF, handoff at EF)

  • tLPL(L), tUPL(U): Prediction limits of time from handoff if ABBEEF occurs

F

D

E

pdf of time

from handoff

C

B

A








Outline21 l.jpg
Outline

。Motivation

。Relative work

。Road topology based mobility prediction

。Dynamic bandwidth reservation scheme

。Simulations and results


Reservation scheme l.jpg
Reservation Scheme

Two processes:

1) Compute Rtarget periodically: using predictions falling within the next T

2) Adapt T : to achieve desired PFT

arrival

time

t0

t0+T

departure

T PFT


Logic behind the scheme l.jpg
Logic Behind the Scheme

Suppose:

  • Have precise handoff information

    Question:

  • How much bandwidth should we reserve to prevent any incoming handoff from being dropped within T?


Perfect knowledge over t l.jpg
Perfect Knowledge Over T

Bandwidth change due to incoming/ outgoing handoffs

Time T

Rtarget increases monotonically with T

2

1

0

time

1

T PFT

Sum of

bandwidth changes

Control PFT by adjusting T

Peak=1

1

Set Rtarget to peak

0

time

1


A more realistic scenario l.jpg
A More Realistic Scenario

  • Previous example assumes perfect knowledge of handoff timings

  • Examine a more realistic scenario: only predictions available

    • Prediction errors in handoff timings


Slide26 l.jpg

Under-reservation occurs when predicted order is reversed

Use prediction limits to introduce biases

Choose L & U experimentally

[ctarget, w, tLPL(L), tUPL(U)]


Adjusting t threshold at each bs l.jpg
Adjusting Tthreshold at each BS


Adjusting t threshold at each bs28 l.jpg
Adjusting Tthreshold at each BS


Adjusting r target at each bs l.jpg
Adjusting Rtarget at each BS


Outline30 l.jpg
Outline

。Motivation

。Relative work

。Road topology based mobility prediction

。Dynamic bandwidth reservation scheme

。Simulations and results


Simulation model l.jpg
Simulation Model

  • 19 wireless cells

  • Randomly generated roads

  • Uncertain handoff regions

  • Traffic lights

  • Capacity = 100 BUs

  • Voice (1 BU) & video (4 BUs) calls


Other schemes for comparison l.jpg
Other Schemes for Comparison

  • Benchmark:knows MT’s nextcell & handoff time

  • Static:fixed reservation target

  • Reactive:reacts to forced terminations

  • Choi’s AC1:uses MT’s previous cell, & time in current cell

  • LE:linear extrapolation (Infocom’01)

  • RTB with Path Knowledge (RTB_PK):knows future path




Summary l.jpg
Summary

  • Mobility predictions incorporate both positioning info & road topology knowledge

    • No cell geometry assumption

  • Adaptive reservations use both incoming & outgoing handoff predictions

  • Prediction accuracy, reservation efficiency

    • Lesser new call blocking while meeting handoff prioritization target
