Presentation Transcript

Aquifers in alluvial sediment l.jpg

Aquifers in Alluvial Sediment

Unconsolidated sands and gravels deposited by rivers. Must be large enough to produce significant rates and volumes of water from wells

  • River valley draining glaciated area

  • Fault bounded basins

  • Partially dissected alluvial plain (High Plains)

  • Mississippi embayment

Sea vs closed basin as drainage destination for alluvial sediments l.jpg

Sea vs. Closed Basin as Drainage Destination for Alluvial Sediments


  • Suspended load possibly removed

  • Salts possibly removed

  • Sea level change important

  • Closed Basin

  • Fine-grained seds in system

  • Salts remain

  • Isolated from effects of sea level change

  • Affected by local climate

Slide4 l.jpg

Alluvial aquifers in glacial deposits

Slide5 l.jpg

Large Glacial Lakes

Alluvial sediments in glaciated areas l.jpg

Alluvial sediments in glaciated areas

  • Glaciers advance, scour seds., modify river course. Sed comp. depends on location/source material. Large range of grn size. Till=clay-boulder beneath glacier.

  • Sea-level drops as ice advances. Hydraulic gradient increase. Erosion, velocity, carrying capacity increase. Valleys incised into bedrock, older glacial sediments (cover earlier channel deposits)

  • Glaciers recede. Discharge increases. Erosion. Braided rivers, large sediment capacity. Outwash plain (sands and gravels). Lakes in front of receding glaciers. Lacustrine=clay-silt (varved)

Alluvial sediments in glaciated areas cont l.jpg

Alluvial sediments in glaciated areas, Cont

  • Sea level rises, glaciers recede, hydraulic gradient diminishes, discharge diminishes, carrying capacity drops. Style changes from braided to meandering. Lakes.

  • Coarse-grn seds deposited in incised valleys. Gravel on bottom, fining upward. Thickness depends on conditions during/following glaciation. Glacial landforms

  • Region adjusts to interglacial. Discharge decreases. Sediments reworked.

  • Important materials: Till, lacustrine, outwash, alluvial valley fill, diamicton, drift. Complex facies distributions

Slide11 l.jpg

Gravel lens within a silty-clay till

Alluvialaquifer systems l.jpg

AlluvialAquifer Systems

  • Geometry

  • Aquifer type

  • Properties

  • Recharge/Discharge

  • Flow pattern

  • Chemistry

  • Examples

Geometry l.jpg



  • Channel deposits

    • Elongate, tabular bodies, sinuous

      Length: many km

      Width: 0.1-several km

      Thickness: 0.01-0.1 km

  • Outwash deposits, alluvial plain

    • planar sheets

      10s km horizontally

      Thickness: 0.01-0.1 km


Aquifer types l.jpg

Aquifer Types

  • Unconfined

  • Confined

  • Both, unconfined with local confining unit


  • Channel fill in modern valley

  • Buried channel

  • Outwash plain

  • Alluvial plain

Slide15 l.jpg

Confining unit where fine grained

Sand and gravel,

Primary aquifer

Idealized setting

Channel fill in modern valley


Slide17 l.jpg

Hydraulic conductivity of some major alluvial aquifers

Storativity of major alluvial aquifers l.jpg

Storativity of major alluvial aquifers



Slide19 l.jpg

Fining upward sequences in major alluvial aquifers

Estimate how K varies with depth in alluvial aquifers?

Straight line on log*log plot





Hazen method K=C1d102

Alluvial: K=C2Z4.8

Slide20 l.jpg

Infiltration through floodplain

Losing stream

including tributary

Stormflow off uplands

Recharge to alluvial aquifers

Slide21 l.jpg

Irrigation return flow

Rise in river stage,

Bank storage

Rise in river stage,


Slide22 l.jpg

Discharge from basement

Main channel losing due to pumping

Slide23 l.jpg

  • Discharges from Alluvial Aquifers

  • To main channel or tributaries

  • Lakes on floodplain

  • Wetlands

  • Wells

Slide24 l.jpg

Streambed conductance effects on gw/sw interaction

Fine-grained seds on streambed

Fine-grained seds in topstratum

Slide25 l.jpg


Stream-parallel flow,

Neither gain nor lose


Losing reach



Gaining losing

Gaining reach

Preliminary interpretations of gw-sw interactions using head contours









Draw a hydrogeologic conceptual model of alluvial aquifers l.jpg

Draw a Hydrogeologic Conceptual Model of Alluvial Aquifers

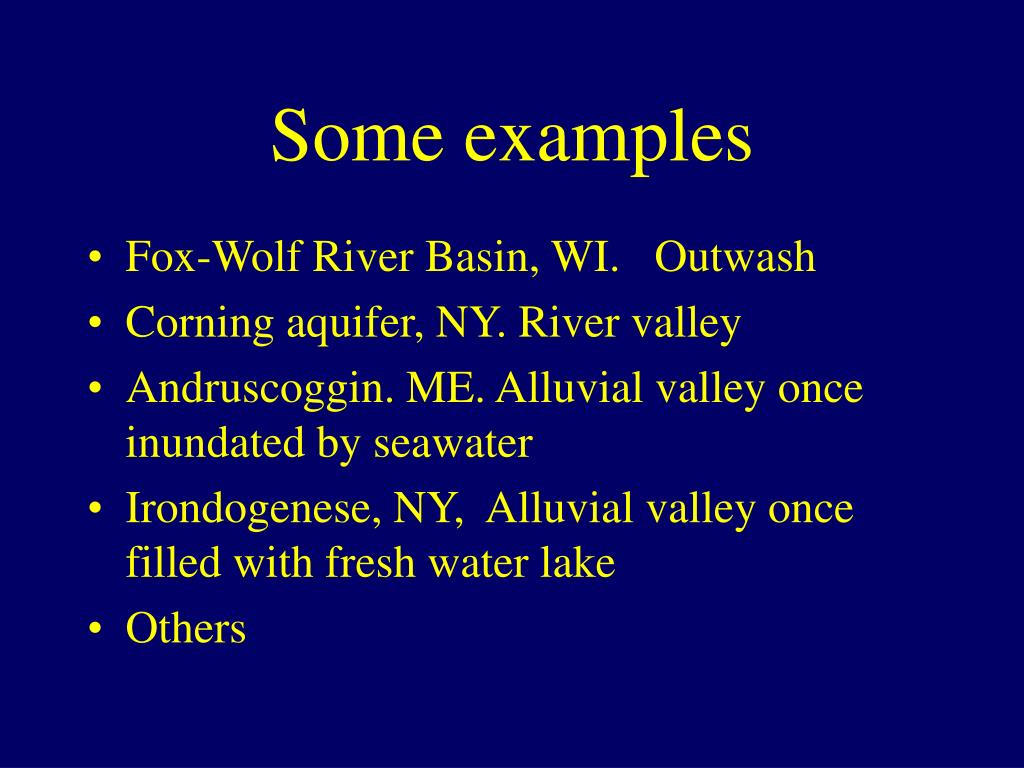

Some examples l.jpg

Some examples

  • Fox-Wolf River Basin, WI. Outwash

  • Corning aquifer, NY. River valley

  • Andruscoggin. ME. Alluvial valley once inundated by seawater

  • Irondogenese, NY, Alluvial valley once filled with fresh water lake

  • Others

Slide29 l.jpg



20 miles l.jpg

140 miles

20 miles

Fox-Wolf River Basin

Slide31 l.jpg

Buried pre-glacial valley, now covered by till and lacustrine deposits

What does this map tell you about the fox wolf river aquifer l.jpg

What does this map tell you about the Fox-Wolf River aquifer?

Regional GW flow patterns?

Where are thr recharge and discharge areas? What controls?

Expected fluxes?

GW discharge area?

30 miles

Slide34 l.jpg

Baseflow rate related to T of surficial aquifer

Composition of GW and SW similar

Ground water flow through surficial aquifer paleozoic sandstones and discharge to river l.jpg

Ground water flow through surficial aquifer, Paleozoic sandstones, and discharge to river

Slide36 l.jpg

Flow-through lake

Another major outwash deposit l.jpg

Another major outwash deposit

Conceptual model l.jpg

Conceptual Model



Cape Cod Bay



Groundwater Flow Paths




Glacial Till





Slide44 l.jpg

Chemung river valley, Corning, NY

Limestone and shale bedrock on rounded hills 800 ft or more above the sand and gravel aquifer on the valley floor.

Slide45 l.jpg

1 mile

5 miles

Slide47 l.jpg


1:40 aspect ratio

Slide50 l.jpg


Corning Aquifer Exercise

3000 ft

  • Determine the horizontal head gradient at each location

  • Estimate the ground water fluxes at each location

  • Estimate the average flow velocities

  • Estimate the volumetric rate per unit length of river that the aquifer is contributing to the rivers at each location.

  • Provide an explanation for the differences between the two locations


Water balance l.jpg

Water Balance

  • Info given in GW Atlas

    ET=0.5 P

    0.6Recharge is from uplands

  • What is the total baseflow flux to streams?

Water Balance from Conceptual Model

Recharge = Infiltration + Upland Runoff





From map, P = 40 inch/yr, so Re=50 in/yr

Slide52 l.jpg

Hardness = 2.5 Ca(mg/l) + 4.1 Mg(mg/l)

<60 mg/l = soft

>150 mg/l = very hard

Water is magnesium bicarbonate type. Note the hardness. The region is underlain by limestone and shale

Slide53 l.jpg

16 Mgpd

Slide54 l.jpg

Fine-grained marine sediments underlie glacial outwash in the Little Androscoggin aquifer in Maine.

Slide55 l.jpg

Glacial valley partially inundated by the sea

Slide57 l.jpg

5000 ft

Water balance59 l.jpg

Water Balance

  • Info given in GW Atlas

    P=43 in/yr, ET=23 in/yr (0.53), Ru=20in/yr (0.46)

    Also given: Recharge as infiltration over 16 mi2 aquifer accounts for 16.4 cfs, overland from uplands 11.2 cfs, from river 1.4 cfs. 29 cfs total Re to aquifer

    Area of aquifer = 16 mi2

  • Are these consistent? Demonstrate with water balances.


Total Recharge=baseflow= 29 cfs: over 16 mi2= 24 in/yr

20 in/yr= 24 in/yr+Stormflow, Negative stormflow?? Problem

Watershed Balance: P+OU=ET+Ru different from above

Aquifer: Infilt+OU+RiverLoss=Baseflow

Infiltration = 16.4 cfs; convert to flux over aquifer: 14 in/yr

Overland from Upland= 11.2 cfs; 9 in/yr

Total Recharge=baseflow= 29 cfs: 24 in/yr

Ru=P+OU-ET=43+9-23=29 in/yr different from above

Ru=Base+Storm, So, stormflow must be 5 in/yr;

In general, the water flux values seem to be inconsistent. Always make certain your water balances can be closed.

Slide60 l.jpg

Hydraulic head in glacial outwash, Little Androscoggin Aquifer, Maine

Slide61 l.jpg

7 Mgpd production

Slide62 l.jpg

4 miles

Aquifer filling a valley once occupied by fresh water glacial lake

Slide63 l.jpg

Structural Contours on Bedrock

Slide66 l.jpg

4.3 Mgpd

Corning aquifer ca mg hco3 hardness 225 ppm tds 212 ppm 16 mgpd l.jpg

Corning Aquifer. Ca, Mg, HCO3; Hardness: 225 ppm; TDS: 212 ppm16 Mgpd

Little Androscoggin, Na, K, Ca, HCO3;

Hardness: 24-68ppm

TDS 67-128 ppm



Irondogenesee Aquifer, Ca, Na, HCO3, Cl, SO4; TDS 665, Hardness: 373

4 Mgpd

Some other alluvial aquifers l.jpg

Some other alluvial aquifers

Slide71 l.jpg

Relative sizes of example alluvial aquifers

100 miles

Slide73 l.jpg

Dissolution of underlying evaporites forms deep troughs in Pecos River Basin

Slide75 l.jpg

80 Mgpd

Water Quality: 1000+ mg/L common due to underlying evaporites and recharge from saline surface water and irrigation return flow where evaporation has increased salt content

Water quality summary l.jpg

Water Quality Summary

  • TDS

  • Hardness

  • Major ions
