Slide1 l.jpg

Essential Bioinformatics and Biocomputing (LSM2104: Section I) Biological Databases andBioinformatics SoftwareProf. Chen Yu ZongTel: 6874-6877Email: [email protected]://xin.cz3.nus.edu.sgRoom 07-24, level 7, SOC1, NUSJanuary 2003


Lecture 5 bioinformatics software l.jpg
Lecture 5: Bioinformatics software

Outline:

  • Types of bioinformatics software

    • Sequence, pattern and domain

    • Evolutionary analysis

    • Visualization

    • Modeling and prediction (sequence, structure and function)

    • Data mining (bibliographic and text searches)

  • Examples

  • Essential Bioinformatics and Biocomputing (LSM2104)


    Types of bioinformatics software l.jpg
    Types of Bioinformatics software

    • Analysis of biological data/systems and characterization of molecules and sequences.

    • Analysis and interpretation of experimental results

    • Simulation of laboratory experiments, important for tackling large scale problems

    • Predictions that lead to the design of experiments

    • Bioinformatics software can be accessed via WWW, or through integrated software packages (such as Emboss, GCG, Staden, DNAstar, …). It may be coupled with databases, or may stand alone.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software l.jpg
    Bioinformatics software

    Major sources

    • Software package at ExPASy Molecular Biology Server http://www.expasy.org ; http://au.expasy.org

    • Software at PBIL Bio-Informatique Lyonnais http://pbil.univ-lyon1.fr/

    • Toolbox at EBI European Bioinformatics Institute http://www.ebi.ac.uk/Tools/index.html

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software5 l.jpg
    Bioinformatics software

    • Major types of bioinformatics tools

    • Sequence analysis tools

    • Sequence comparison

    • Pattern and domain search

    • Evolutionary analysis

    • Prediction of sequence structure and function

    • Visualization of molecular structures

    • Structure modeling

    • Bibliographic and text searches

    • Specialized and other tools

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software6 l.jpg
    Bioinformatics software

    Sequence analysis tools

    This kind of software focuses on extraction and

    comparison of properties in DNA and protein sequences

    • Sequence analysis provides for identification of domains, structure, and function, and other properties

    • The analysis of individual sequences helps with sequence comparison

  • Textbook chapter 5, pages 81-93

  • Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software7 l.jpg
    Bioinformatics software

    Sequence analysis tools

    This kind of software focuses on extraction and

    comparison of DNA and protein sequence

    properties such as

    • composition of nucleotide or protein sequences

    • codon usage in DNA

    • translation and backtranslation

      Textbook chapter 5, pages 81-93

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software8 l.jpg
    Bioinformatics software

    Composition of nucleotide or protein sequences

    • Composition (frequency of occurrence of a nucleotide or of an amino acid) is the most basic analysis. It can give us important functional and structural clues.

    • For example, CG-rich regions called CpG islands are often found in promoters. A short region just before the splice site at the end of introns often has high C+T content.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software9 l.jpg
    Bioinformatics software

    Composition of protein and DNA sequences

    • Web:

      • [email protected] Network Protein Sequence @nalysis http://npsa-pbil.ibcp.fr/ (Amino-acid composition)

      • AA Composition http://molbiol.soton.ac.uk/compute/aacomp.html

    • JEMBOSS(in our own laboratory)

      • http://srs1.bic.nus.edu.sg/jnlp/ (nucleic, composition, compseq)

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software10 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software11 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software12 l.jpg
    Bioinformatics software

    Codon usage in DNA

    • Web:

      • Count-codon program in Codon Usage Database http://www.kazusa.or.jp/codon/countcodon.html (needs start and stop codons at the start and the end of the sequence)

      • Tool for Gene to Codon Usage Table http://www.entelechon.com/eng/genetocut.html

      • (does not care about start and stop codons)

    • JEMBOSS (in the laboratory)

      • http://srs1.bic.nus.edu.sg/jnlp/ (nucleic, codon usage, cusp)

        DNA coding region should have only one stop codon

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software13 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software14 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software15 l.jpg
    Bioinformatics software

    Translation (DNA to protein) and back translation

    (protein to DNA)

    • Web:

      • Translate tool at ExPASy http://au.expasy.org/tools/dna.html (DNA to protein)

    • JEMBOSS (in the laboratory)

      • http://srs1.bic.nus.edu.sg/jnlp/ (DNA to protein and reverse)

        (nucleic, translation, transeq; nucleic, translation, backtranseq)

        If we translate and back translate the same sequence we will typically

        not get the same sequence as the starting one.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software16 l.jpg
    Bioinformatics Software

    Sequence comparison (the most important software)

    This will be taught next month by A/P Tan Tin Wee.

    Web:

    • Local alignment (BLAST, FASTA)

      • http://www.ebi.ac.uk/fasta33/

      • http://www.ncbi.nlm.nih.gov/BLAST/

      • http://www.ebi.ac.uk/blast2/

    • Multiple alignment (Clustal W)

      • http://www.ebi.ac.uk/clustalw/index.html

    • JEMBOSS (in the laboratory)

      • http://srs1.bic.nus.edu.sg/jnlp/

        Local alignment: Smith-Waterman (alignment, local, water)

        Global alignment: Needleman-Wunsh (alignment, global, needle)

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software17 l.jpg
    Bioinformatics software

    Evolutionary analysis

    • Multiple sequence alignments can be used as measures of evolutionary distance between proteins. The phylogeny systems are used to represent evolutionary distances between sequences.

    • WebPhylip

    • http://sdmc.krdl.org.sg:8080/~lxzhang/phylip/

    • GeneBee

    • http://www.genebee.msu.su/services/phtree_reduced.html

      Read textbook, page 83.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software18 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software19 l.jpg
    Bioinformatics software

    Prediction of sequence structure and function

    • Sequences that have similar structure often have similar function. For many sequences we can extract secondary and tertiary structure from the PDB database.

    • What if our sequence is not in the PDB? We can predict structure of a biological sequence using appropriate software.

    • There are several programs for prediction of secondary structure. For prediction of tertiary structure we can do modelling.

    • http://npsa-pbil.ibcp.fr (PHD method for secondary structure prediction)

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software20 l.jpg
    Bioinformatics software

    • Secondary structure prediction:

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software21 l.jpg
    Bioinformatics software

    • Secondary structure prediction:

      • The PHD program predicted four alpha helices in the human IL-2 (red). The number of helices is correct, but their lengths and boundaries are not correct (purple).

      • When we make a prediction in bioinformatics, we must have an idea about the accuracy of prediction programs.

      • To assess the accuracy of a program, we can test it with known data. Our test must have sufficient examples, so that we can make reasonable conclusions.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Secondary structure prediction bioinformatics software l.jpg
    Secondary structure predictionBioinformatics software

    • alpha –Lactalbumin PDB 1A4V

    • http://npsa-pbil.ibcp.fr/cgi-bin/npsa_automat.pl?page=/NPSA/npsa_server.html

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software23 l.jpg
    Bioinformatics software

    • We used nine different programs for prediction of secondary structure of alpha–Lactalbumin (PDB 1A4V).

    • The results show that the best predictions for this molecule were from “Predator”, while DSC was the laggard.

    • This test does not mean that Predator is the best of the tested programs, nor that DSC is the worst. To make such conclusions we must make test set first. The test set should contain the examples from the family of proteins that our query protein belongs to.

    • The learning point – none of the prediction programs (and this applies across all bioinformatics software, not only secondary structure prediction) is 100% accurate. The users must be cautious when interpreting results from the predictive software.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software24 l.jpg

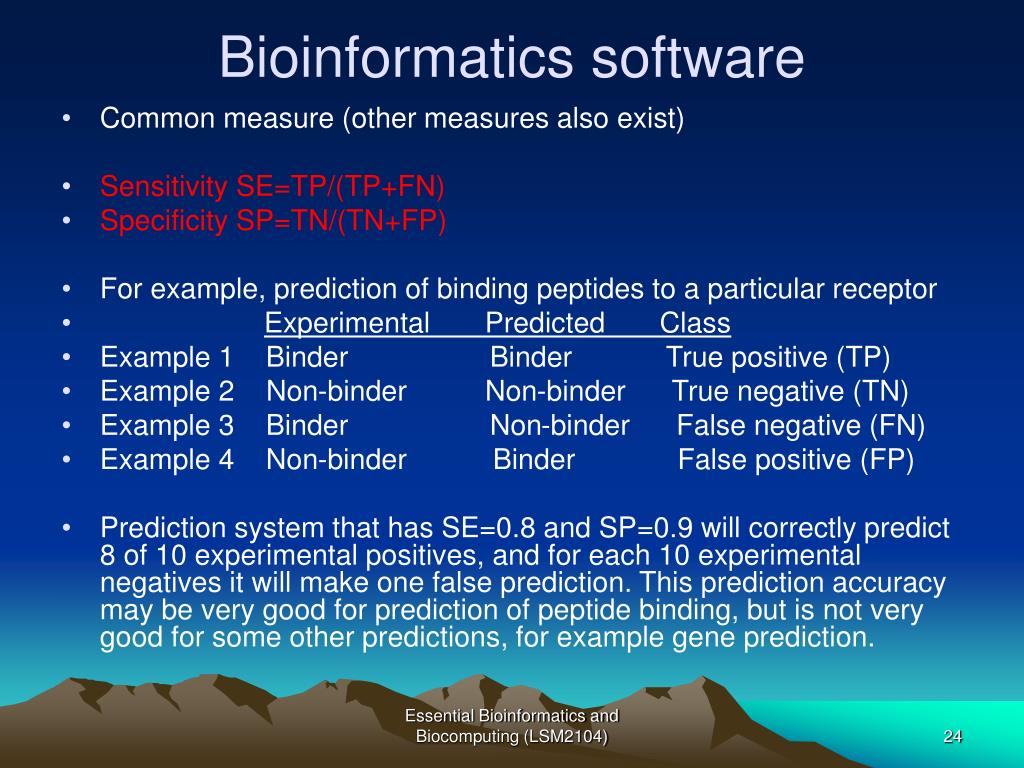

    Bioinformatics software

    • Common measure (other measures also exist)

    • Sensitivity SE=TP/(TP+FN)

    • Specificity SP=TN/(TN+FP)

    • For example, prediction of binding peptides to a particular receptor

    • Experimental Predicted Class

    • Example 1 Binder Binder True positive (TP)

    • Example 2 Non-binder Non-binder True negative (TN)

    • Example 3 Binder Non-binder False negative (FN)

    • Example 4 Non-binder Binder False positive (FP)

    • Prediction system that has SE=0.8 and SP=0.9 will correctly predict 8 of 10 experimental positives, and for each 10 experimental negatives it will make one false prediction. This prediction accuracy may be very good for prediction of peptide binding, but is not very good for some other predictions, for example gene prediction.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software25 l.jpg
    Bioinformatics software

    • Prediction of 3-D structure

    • Various modelling programs

      • comparative modelling, using known structures as templates

      • ab initio modelling, using atomic simulation, residue statistics, etc.

    • These methods will be covered later in the course

    • An example of the comparative modelling software is SWISS-MODEL http://www.expasy.org/swissmod/SWISS-MODEL.html

    • This model is provided by email.

    • This tool has the facility for assessing the quality of predictions

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software26 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)

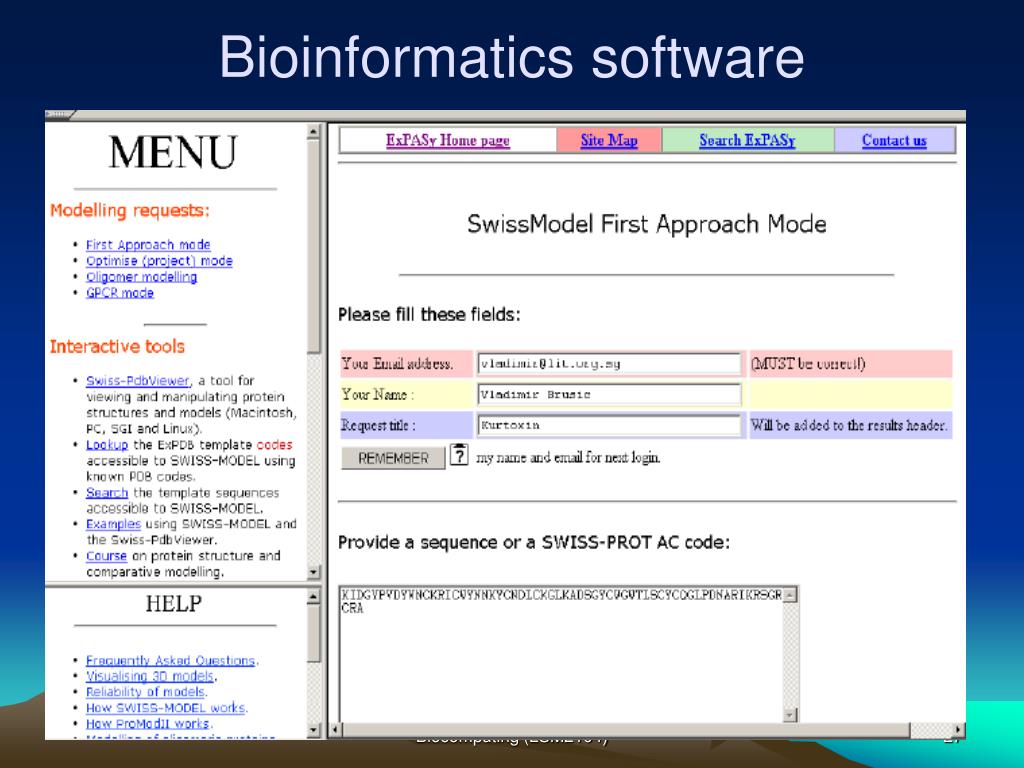

    Bioinformatics software27 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software28 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software29 l.jpg
    Bioinformatics software

    • Software for visualisation of 3-D structures. Provides different views to 3-D molecular structure, which will be taught by A/P Shoba.

      • Chime, Rasmol (they use files in PDB format)

      • Scorpion database uses Chime. Chime can be downloaded from: http://www.mdli.com/downloads/downloads.html?uid=&key=&id=1

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software30 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software31 l.jpg
    Bioinformatics software

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software32 l.jpg

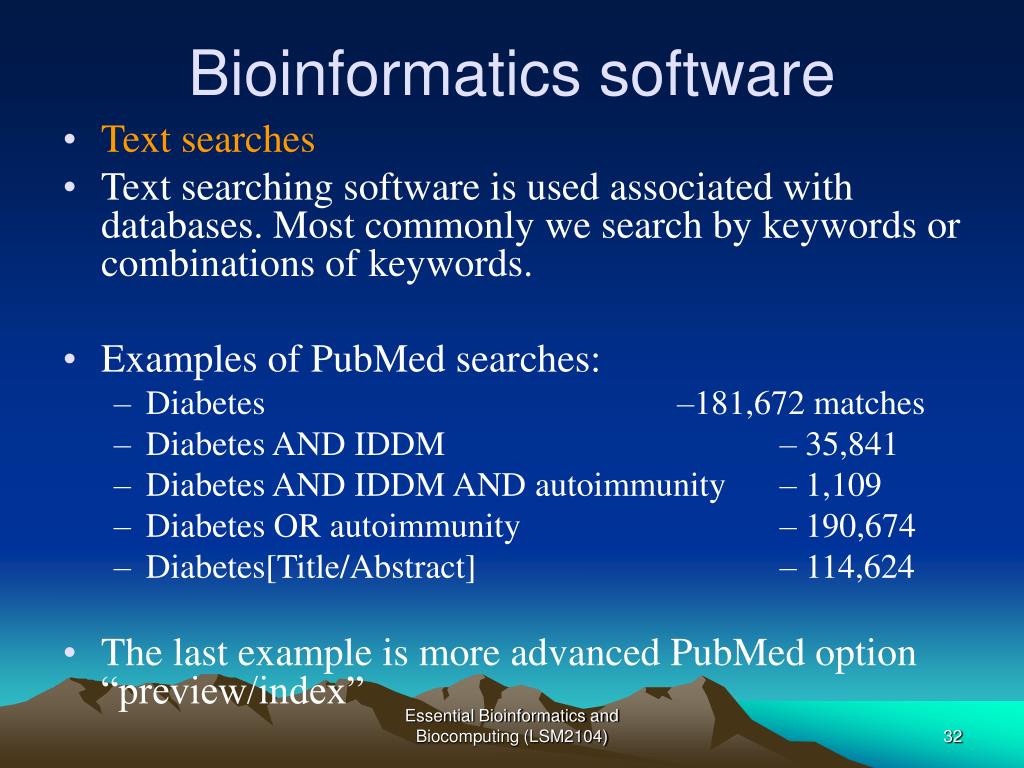

    Bioinformatics software

    • Text searches

    • Text searching software is used associated with databases. Most commonly we search by keywords or combinations of keywords.

    • Examples of PubMed searches:

      • Diabetes –181,672 matches

      • Diabetes AND IDDM – 35,841

      • Diabetes AND IDDM AND autoimmunity – 1,109

      • Diabetes OR autoimmunity – 190,674

      • Diabetes[Title/Abstract] – 114,624

    • The last example is more advanced PubMed option “preview/index”

    Essential Bioinformatics and Biocomputing (LSM2104)


    Bioinformatics software summary of today s lecture l.jpg

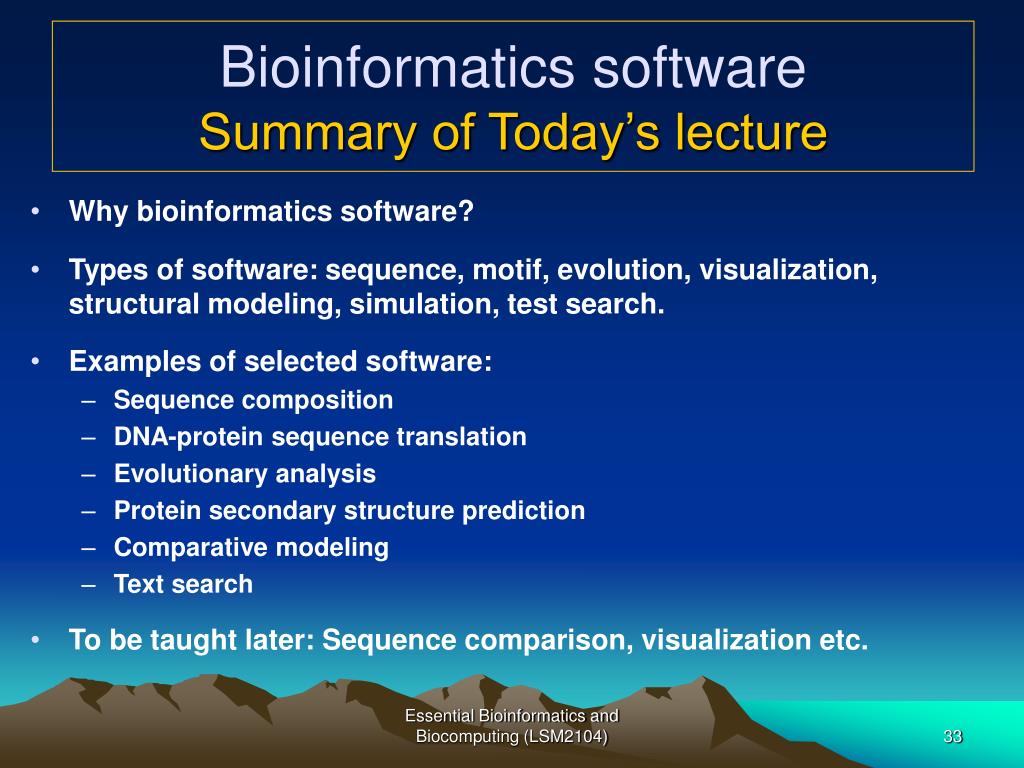

    Bioinformatics software Summary of Today’s lecture

    • Why bioinformatics software?

    • Types of software: sequence, motif, evolution, visualization, structural modeling, simulation, test search.

    • Examples of selected software:

      • Sequence composition

      • DNA-protein sequence translation

      • Evolutionary analysis

      • Protein secondary structure prediction

      • Comparative modeling

      • Text search

    • To be taught later: Sequence comparison, visualization etc.

    Essential Bioinformatics and Biocomputing (LSM2104)


    Summary of the section biological databases and bioinformatics software l.jpg
    Summary of the Section:Biological databases and bioinformatics software

    • We first focused on biological databases. We covered topics:

      • discussed types of biological databases

      • briefly described popular databases

      • structure of the GenBank and SWISS-PROT entries

      • searching biological databases

      • types of questions that can be answered by searching databases

      • completeness and errors in the databases

    Essential Bioinformatics and Biocomputing (LSM2104)


    Summary of the section biological databases and bioinformatics software35 l.jpg
    Summary of the Section:Biological databases and bioinformatics software

    • The second topic was bioinformatics software. We covered:

      • why do we need bioinformatics software?

      • briefly described major types of bioinformatics software

      • described software for sequence composition, codon usage, translation and backtranslation

      • introduced the concept of sequence alignment, evolutionary analysis

      • secondary and tertiary structure prediction, molecular visualization

      • accuracy of prediction software

      • text searching

    Essential Bioinformatics and Biocomputing (LSM2104)


    ad
