Presentation Transcript
Digital radiography l.jpg

DigitalRadiography


Basic concepts l.jpg
Basic Concepts

  • Image Quality Concepts

    • Spatial Resolution (limiting resolution)

    • Noise: Quantum Mottle

  • Nature of the Digital Image

    • Spatial Digitization

    • Analog-to-Digital Conversion

  • Digital Radiography Factors

    • Spatial Digitization and Resolution

    • ADC and Noise

    • ADC and Dynamic Range


Basic concepts limiting resolution l.jpg
Basic Concepts: Limiting Resolution

  • Limiting Resolution (simplest form):refers to the smallest, closely spaced objects for which separate images can be seen

  • Measurement and Units: Bar pattern


Basic concepts limiting resolution4 l.jpg
Basic Concepts: Limiting Resolution

  • Limiting Resolution (simplest form):

  • Sources Blurring in radiography:

    • Focal spot (all types of radiography)

    • Motion (all types of radiography)

    • Receptor blur - depends on receptor

  • Measurement and Units: Bar pattern Measured using bar pattern (lead strips separated by spaces) and expressed as smallest visible bar size or highest spatial frequency (line-pairs/mm)





Image noise quantum mottle l.jpg
Image Noise: Quantum mottle

  • Quantum mottle (QM) refers to the “graininess” of x-ray images

  • QM is caused by using a limited number of x-ray photons to make an image

  • QM interferes with ability to details

  • Using more photons (more mAs) reduces noise but increases radiation exposure


The nature of the digital image l.jpg
The Nature of the Digital Image

  • Basic Concepts: Resolution and Noise

  • The Digitization Process

    • Spatial Digitization

    • Analog-to-Digital Conversion (ADC)

  • Radiation Dose, Noise and Resolution

    • Resolution versus Dose: receptor thickness

    • Dose versus Image Noise (Quantum mottle)

  • Dynamic Range


The digitization process l.jpg

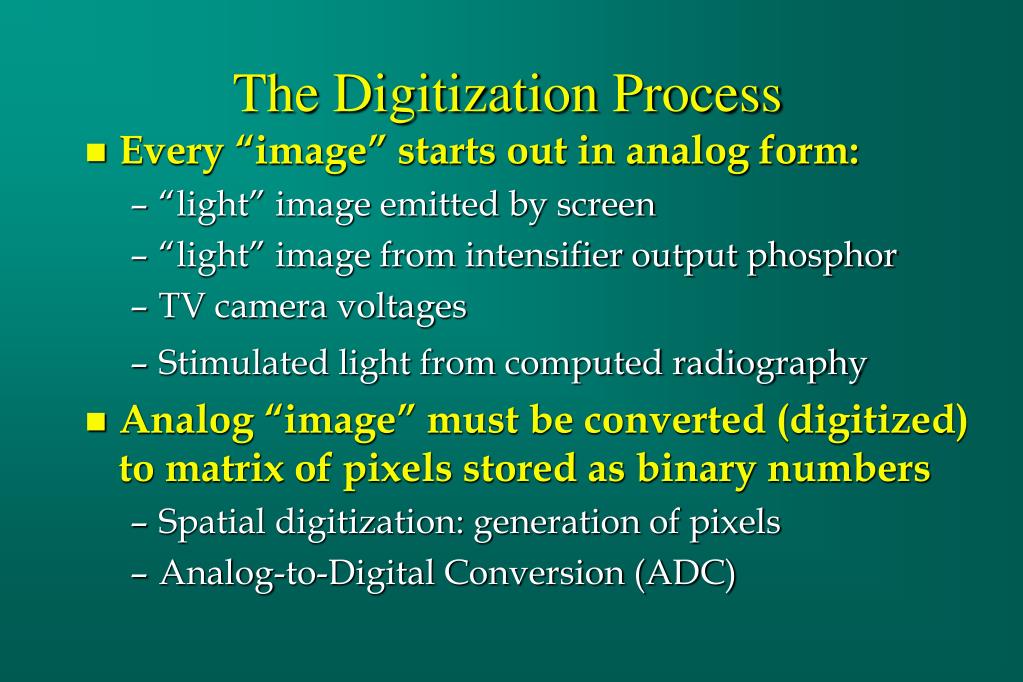

The Digitization Process

  • Every “image” starts out in analog form:

    • “light” image emitted by screen

    • “light” image from intensifier output phosphor

    • TV camera voltages

    • Stimulated light from computed radiography

  • Analog “image” must be converted (digitized) to matrix of pixels stored as binary numbers

    • Spatial digitization: generation of pixels

    • Analog-to-Digital Conversion (ADC)


Spatial digitization pixels sampling l.jpg
Spatial Digitization (pixels): Sampling

  • Must “measure” image along many rows (512, 1024, etc) and at many point along each row

  • Sampling done by:

    • detector with discrete “elements” (eg, CCD camera, flat panel detector) or

    • Raster scan process


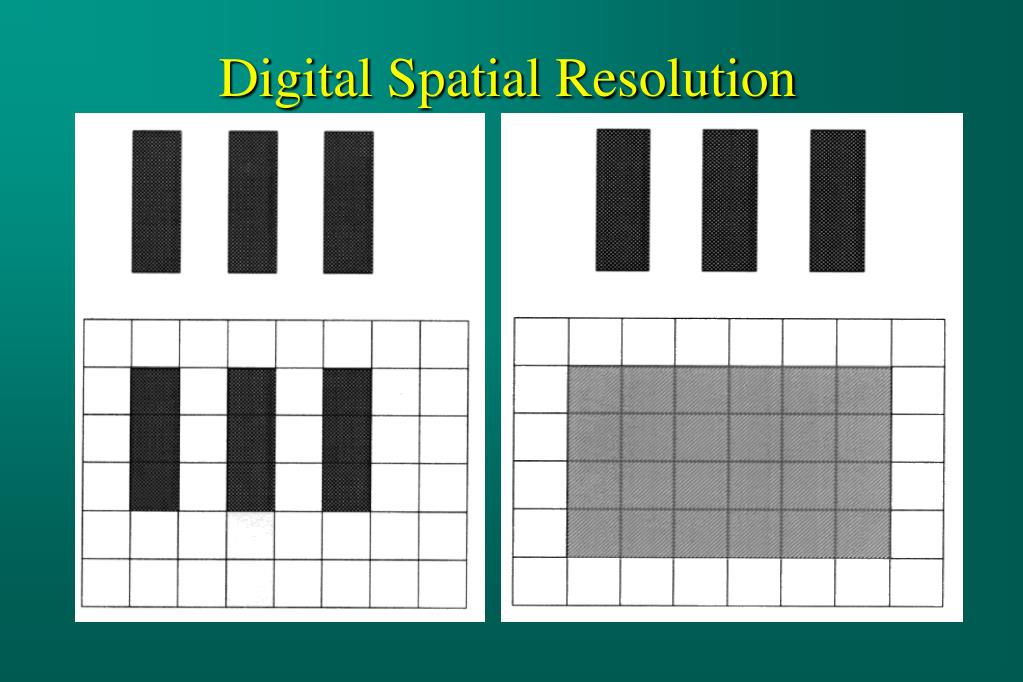

Matrix size resolution and bytes l.jpg
Matrix Size, Resolution and Bytes

  • Regular Film/Screen: 5 line-pairs/mm

  • To “Equal” with Digital Image:

    • 5 lp/mm = 10 pixels/mm (to see 5 bars+5 spaces)

    • 35 x 43 cm (14 x 17”) image = 350 x 430 mm

    • 350 x 430 mm at 10 pixels/mm = 3500 x 4300 pixels

    • 3500 x 4300 x 2 bytes/pixel (16 bits/pixel) = 30 MB

  • Digital Radiography

    • Typically 2000 x 2500 pixels maximum (~3 lp/mm)






Adc and dynamic range l.jpg
ADC and Dynamic Range

  • Suppose we have:

    • 10 bit ADC: (1024 graylevels)

    • 1000:1 dynamic range (e.g. we can measure and record exposures from 1 mR to 1000 mR (1 R):

  • Need 1 mR difference for different graylevel

    • Differences between structures to see in image may be < 1 mR in x-ray intensity reaching the receptor

  • Alternatives:

    • “throw out” some dynamic range (limit range)

    • Increase number of bits (still uncommon)


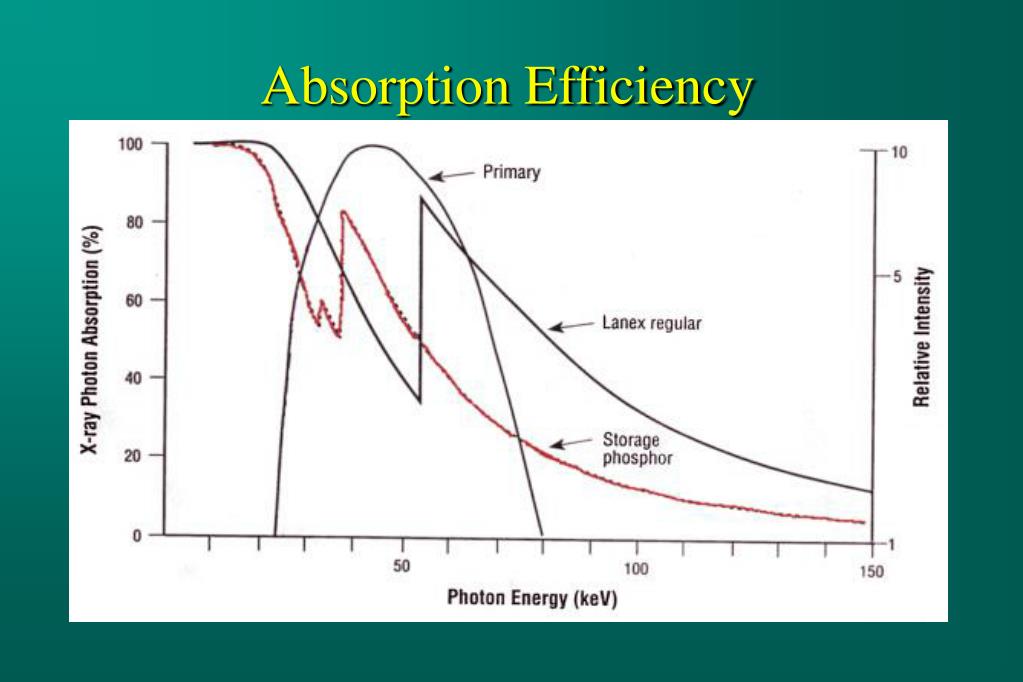

Digital detectors l.jpg

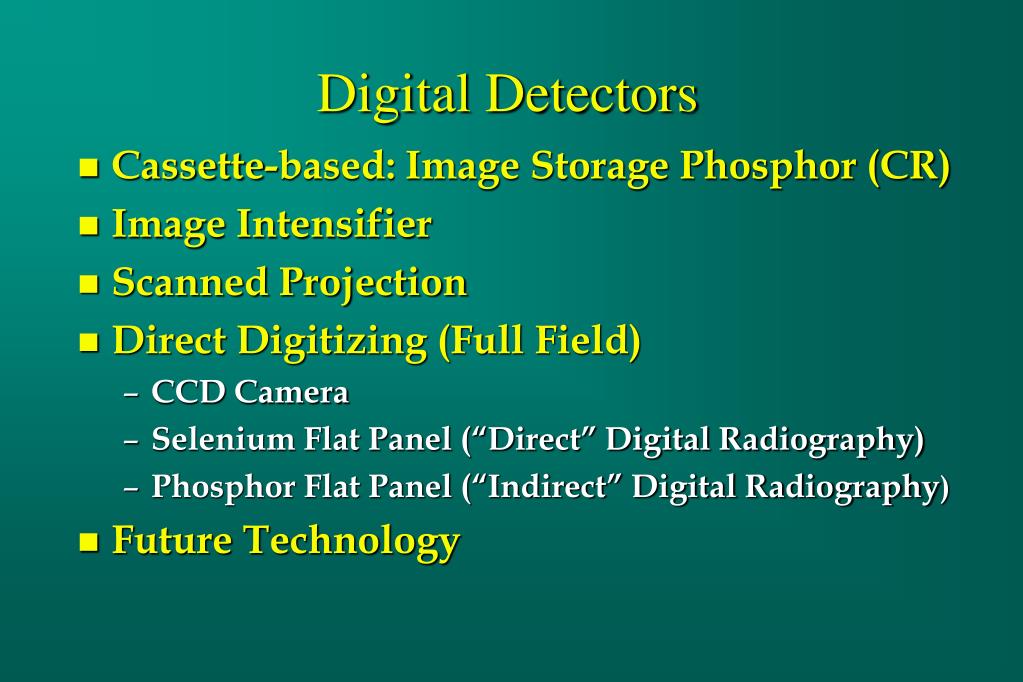

Digital Detectors

  • Cassette-based: Image Storage Phosphor (CR)

  • Image Intensifier

  • Scanned Projection

  • Direct Digitizing (Full Field)

    • CCD Camera

    • Selenium Flat Panel (“Direct” Digital Radiography)

    • Phosphor Flat Panel (“Indirect” Digital Radiography)

  • Future Technology


Digital detectors19 l.jpg
Digital Detectors

  • Cassette based Image Storage Phosphor (CR)

  • Image Intensifier

  • Scanned Projection

  • Direct Digitizing (Full Field)

    • CCD Camera

    • Selenium Flat Panel (“Direct” Digital Radiography)

    • Phosphor Flat Panel (“Indirect” Digital Radiography)

  • Future Technology




Slide23 l.jpg

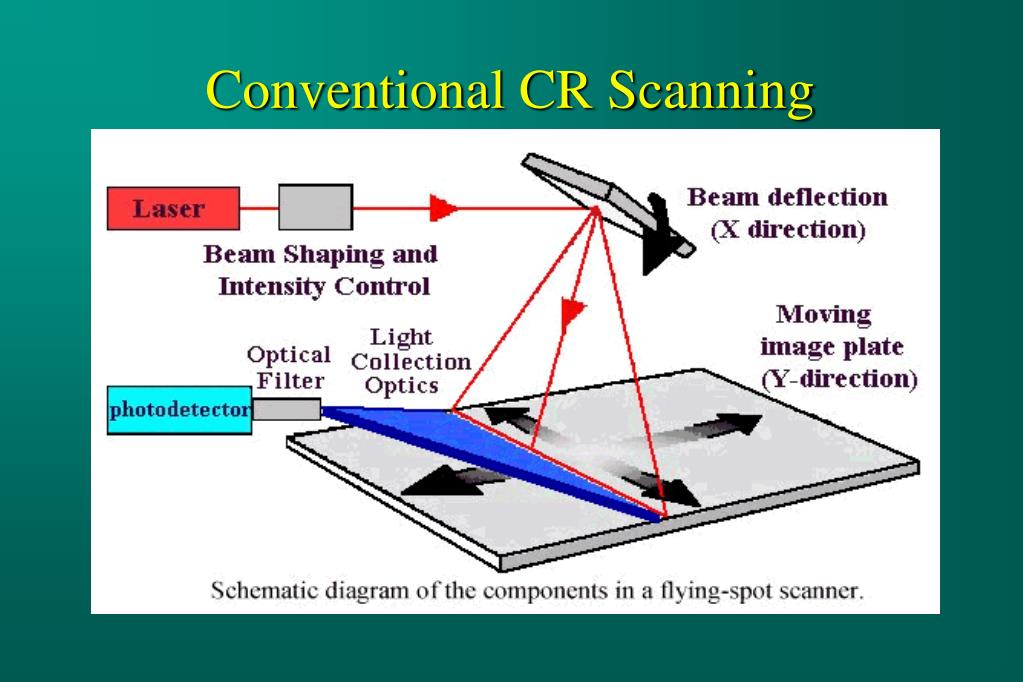

Flying Spot CR Scan

In a conventional flying spot CR reader, stimulated output exposure (scan level) from the IP is proportional to the laser intensity I and dwell time Td




Dynamic range latitude l.jpg
Dynamic Range (Latitude)

  • Dynamic Range, or latitude refers the range of exposures which provide useful diagnostic information. For film, is the the range of exposures that provide acceptable optical densities (ie, not too dark and not too light)



Dynamic range latitude cr vs film l.jpg

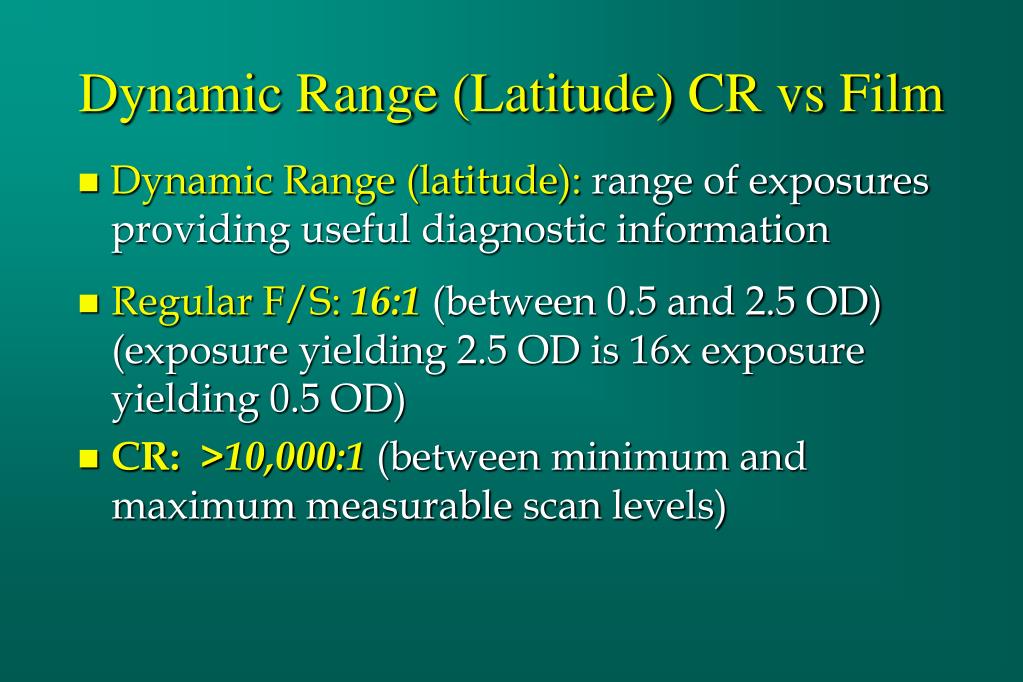

Dynamic Range (Latitude) CR vs Film

  • Dynamic Range (latitude): range of exposures providing useful diagnostic information

  • Regular F/S:16:1 (between 0.5 and 2.5 OD) (exposure yielding 2.5 OD is 16x exposure yielding 0.5 OD)

  • CR:>10,000:1 (between minimum and maximum measurable scan levels)



Radiation dose with dr l.jpg
Radiation Dose with DR

  • How much is enough ?

    • Image Noise (Quantum mottle)

    • required image quality

  • How much is too much?

    • Patient radiation exposure concerns

    • possible saturation of parts of image (all black)



0 1 exposure correct exposure l.jpg

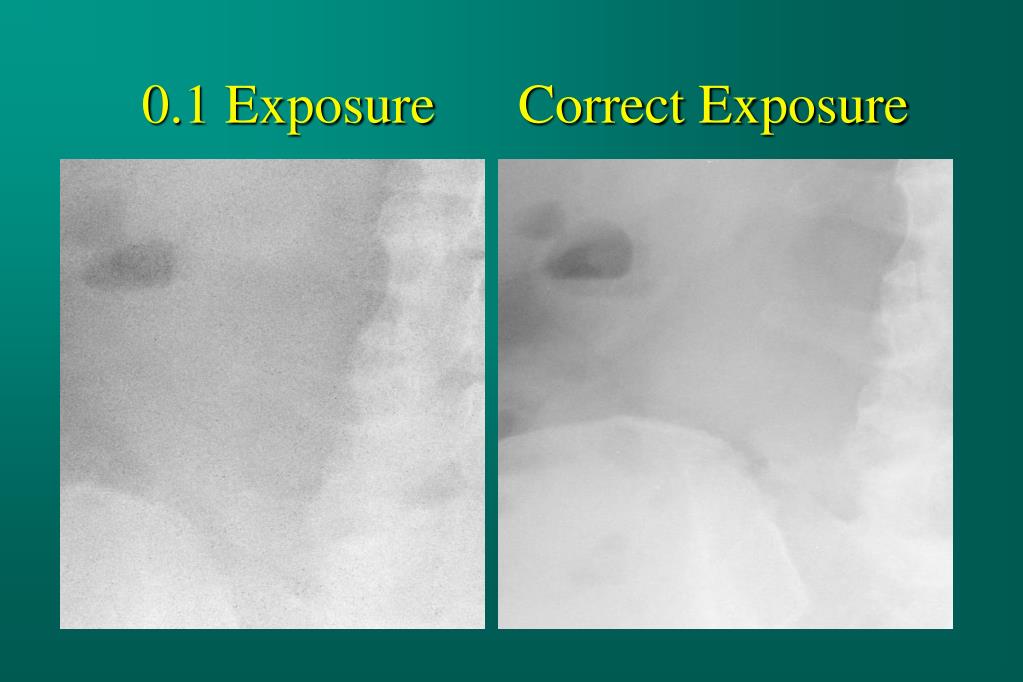

0.1 Exposure Correct Exposure


Future cr technology l.jpg
FUTURE CR TECHNOLOGY

  • New phosphors and scan head technology

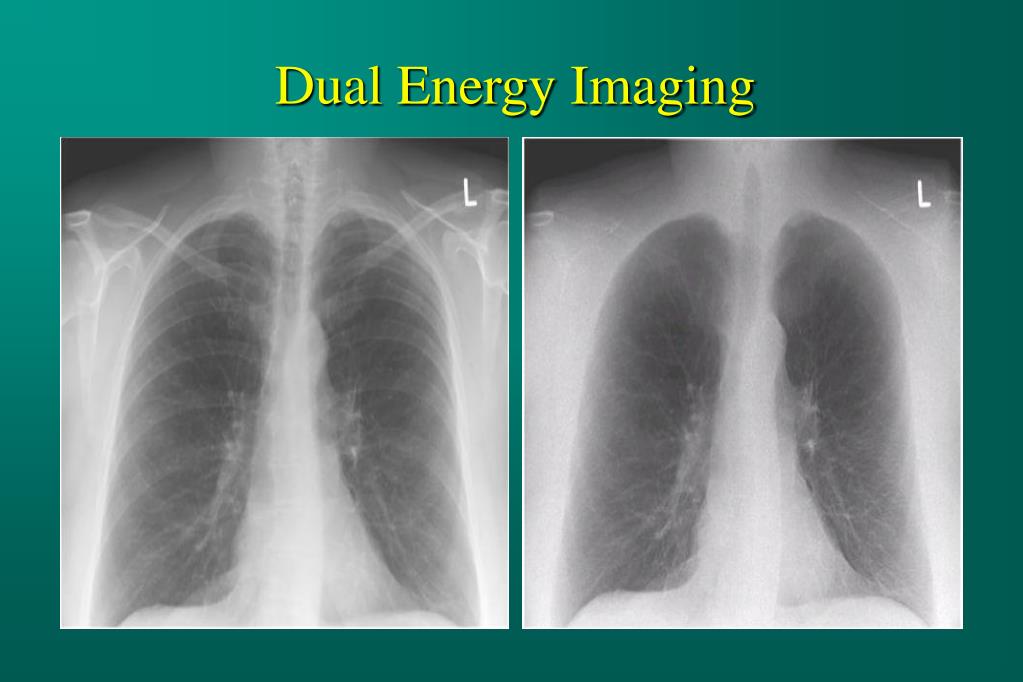

  • Dual Energy
