Portable Incubator

<br>Portable Incubator LPI-A10 is a compact, small and lightweight unit featured with PID microprocessor controller technology that adopts easy operation system and improves work efficiency. It works in ambient temperature range of 5 to 50u00c2u00b0C and has 8 L volume capacity with gravity air convection type of circulation. This handy incubator is primarily designed for various outdoor working environment for microbial cultivation and heated storage.<br>

Aliza16
Download Presentation

Portable Incubator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

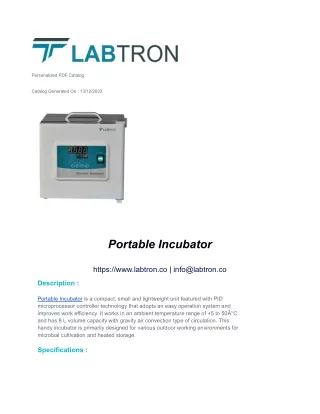

  1. Personalized PDF Catalog Catalog Generated On : 13/12/2023 Portable Incubator https://www.labtron.co | info@labtron.co Description : Portable Incubator is a compact, small and lightweight unit featured with PID microprocessor controller technology that adopts an easy operation system and improves work efficiency. It works in an ambient temperature range of +5 to 50°C and has 8 L volume capacity with gravity air convection type of circulation. This handy incubator is primarily designed for various outdoor working environments for microbial cultivation and heated storage. Specifications :

  2. Air cycle Gravity air convection Mode Temperature Temperature Temperature Temperature range resolution ratio motion uniformity Function RT +5 to 50 ℃ 0.1 ℃ ± 0.5 ℃ ± 1.5 ℃ Inner Insulation Outer shell Heater chamber layer Body Mirror Cold rolling steel 6.5 cm Nickel and structure stainless electrostatic polyurethane chromium alloy steel spraying exterior interlayer heating wire Ti Temp Tempe Dis me Operati eratur rature pla set Se Controller on Additional e settin y tin ns functio function contr g mo g or n oller mode de ran ge

  3. Sensor deviation Fixed correction, temper Temperatu 0 ature re Touch to PID operati overshoot C button LE 99 Intelli on, self-tuning U5 settin D 99 gent Timing , Internal 0 g mi functio parameter n n, Auto locking, stop Power-off parameter memory Safety Over temperature sound-light alarm Device Inner G Exte Pack cha Po N ro rior ing V Powe mber we et s dime dime ol r dime r w s nsio nsio u cons nsio su ei w n (W n (W m umpt n (W ppl g ei × L × × L × e ion × L × y ht g H) H) H) ht Technical specificatio n AC 22 300 340 0 200 × × × V; 9 11 160 × 330 370 8 300 50/ k k 230 × × L W 60 g g mm 330 390 Hz, mm mm 1.3 A

  4. Features : Working temperature range of RT +5 to 50 ℃ and gravity air convection type of circulation Compact, portable and stackable design saves bench space Carrying strap provides easy transport of samples PID microprocessor controller with 0.5 °C control sensitivity LED display with accuracy of 0.1 °C for precise temperature monitoring Constant time setting function for personalized culture experiment requirement Side door opening (180°) and seal connector for easy loading of samples inhibits cross contamination Automatic rectification in case of temperature sensor deviation Audible and visual alarm system protection for over temperature Auto circuit breaker function protects unit from power surges Mirror stainless steel exterior with curved angle design for easy maintenance Cold-rolled rugged steel with anti-bacterial powder coating resists dents, cracks, and chemical attack

  5. Applications : Ideal incubator for basic incubation and heated storage applications. Used in industrial, mining establishments, medical, sanitary field, biochemistry and agricultural science field for laboratory cultivation of bacterial culture, breeding and ferment. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
