Foaming Characteristics Tester

Foaming Characteristics Tester is a benchtop unit and offers ambient to 100u00b0C temperature range with precision of u00b1 0.1u00b0C. The instrument is distributed into two groups of baths at 24u00b0C and 93.5u00b0C and separate control for temperature as well as flow rate. Equipped with gas diffusion head, oil-free air pump and air filter. Allows determination of the foaming characteristics of lubricating oils at specific temperatures by empirically rating the foaming tendency and the foam stability.<br>

Aliza16
Download Presentation

Foaming Characteristics Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

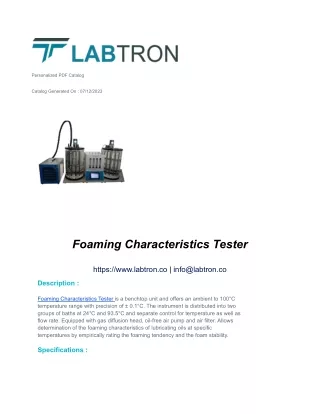

  1. Personalized PDF Catalog Catalog Generated On : 07/12/2023 Foaming Characteristics Tester https://www.labtron.co | info@labtron.co Description : Foaming Characteristics Tester is a benchtop unit and offers an ambient to 100°C temperature range with precision of ± 0.1°C. The instrument is distributed into two groups of baths at 24°C and 93.5°C and separate control for temperature as well as flow rate. Equipped with gas diffusion head, oil-free air pump and air filter. Allows determination of the foaming characteristics of lubricating oils at specific temperatures by empirically rating the foaming tendency and the foam stability. Specifications :

  2. Temperature Range Ambient to 100°C Temperature Precision ± 0.1°C Air Flow 94 mL ± 5 mL/min, with flowmeters Timing Unit 0 to 99 min 59 s, resolution 1 s Control System Single chip microcontroller Heating Power 2000 W Power Supply AC 220 V ± 10 %, 50 Hz Features : Equipped with bath of 24°C and 93.5°C Touch-screen colored LCD display for ease of monitoring Separate control for flow rate Automatic buzzer alarm for completion of test Easy to use, long life span, safe and reliable Confirms to international standards of ASTM D892, ISO 6247 Applications :

  3. Foaming Characteristics Tester is used to determine the foaming stability and tendency of lubricating oils at temperature up to 100°C. It finds application in petroleum industry, synthetic oil processing units etc. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
