POD

  • Draw the image of Patrick through the lens below using a ray diagram.

F

F


Targets l.jpg

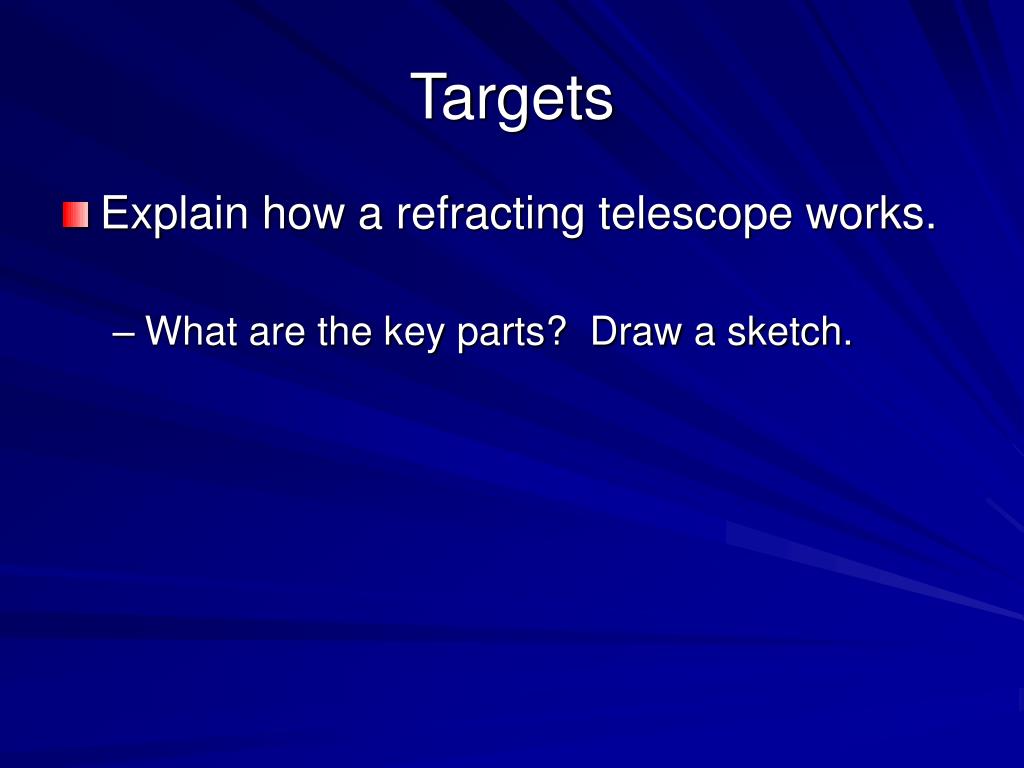

Targets

  • Explain how a refracting telescope works.

    • What are the key parts? Draw a sketch.



Telescope targets l.jpg
Telescope Targets

  • Describe the different types of telescopes.

  • Explain how telescopes work.

  • Describe how the electromagnetic spectrum is organized.


What tools are used to explore space l.jpg
What Tools are used to explore Space?

  • Human Eye

  • Telescopes

  • Satellites

  • Probes


Slide8 l.jpg

What do Telescopes “see”?

The Electromagnetic Spectrum


What do telescopes do l.jpg
What do Telescopes do?

  • 1.) Collect far more light than the unaided eye.

  • 2.) Magnify the image.

  • Example: use a magnifying glass to look at the image from the “spaceship” reflector.


Slide10 l.jpg

  • Optical Telescopes:

  • Most used telescope today

  • Best locations are on mountain peaks in dry climates

  • Use lenses or mirrors to gather and focus starlight

  • Usually kept in buildings with domed roofs to protect it from weather and temperature changes.


Slide11 l.jpg

Telescope

  • Has two lenses, an Objective Lens and the eyepiece.

    • Objective Lens - Gathers light and bends the rays of light to form an image in the eyepiece

      • (Objective/Object - closest to the object)

    • Eyepiece - Magnifies the object.

  • Large Refracting Telescopes are not being built today because telescopes with mirrors are cheaper and easier to build.


Slide12 l.jpg

Telescope

  • Uses two mirrors and one lens (the eyepiece).

  • Primary Mirror - A large curved mirror to gather and focus light. The light is then reflected to the Secondary Mirror.

  • Secondary Mirror – Reflects the image to the observer.

  • Eyepiece – magnifies the image.


Slide13 l.jpg

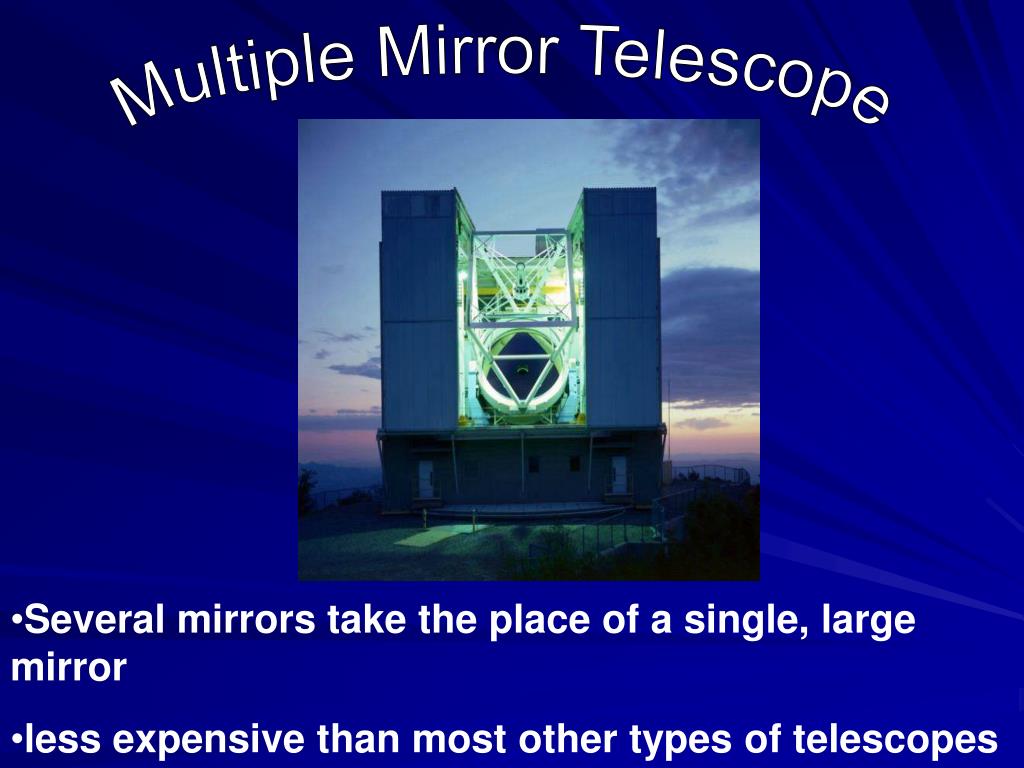

Multiple Mirror Telescope

  • Several mirrors take the place of a single, large mirror

  • less expensive than most other types of telescopes


Radio telescope l.jpg
Radio Telescope

  • Radio telescopes, or antennas, collect faint radio waves from natural celestial objects (e.g. planets, stars and other galaxies).

  • The data is collected and then analyzed using powerful computers and software designed specifically for this purpose.

From: National Radio Astronomy Observatory, http://www.nrao.edu/


Slide15 l.jpg


Slide16 l.jpg


Slide17 l.jpg


Spitzer infra red telescope l.jpg
Spitzer Infra-red Telescope of 27 antennas, each measuring 25 meters in diameter and weighing approximately 200 tons

The Spitzer Space Telescope was launched into space on 25 August 2003.

  • 2.5-year mission.

  • Spitzer obtains images and spectra by detecting the infrared energy, or heat, radiated by objects in space between wavelengths of 3 and 180 microns (1 micron is one-millionth of a meter).

http://www.spitzer.caltech.edu/about/index.shtml


Slide19 l.jpg


Slide20 l.jpg

Double Helix Nebula of 27 antennas, each measuring 25 meters in diameter and weighing approximately 200 tons

  • The double helix nebula. The spots are infrared-luminous stars, mostly red giants and red supergiants. Many other stars are present in this region, but are too dim to appear even in this sensitive infrared image.


Slide21 l.jpg

  • Spitzer Space Telescope of 27 antennas, each measuring 25 meters in diameter and weighing approximately 200 tons

  • More Images….


Hubble space telescope l.jpg
Hubble Space Telescope of 27 antennas, each measuring 25 meters in diameter and weighing approximately 200 tons

  • Observes the Universe at ultraviolet, visual, and near-infrared wavelengths.

  • The Hubble telescope was deployed by a NASA Space Shuttle in 1990. Subsequent Shuttle missions have repaired and added additional capabilities to HST.

http://www.nasa.gov/mission_pages/hubble/main/index.html



Hubble l.jpg
Hubble Field Image


Hubble space telescope25 l.jpg
Hubble Space Telescope Field Image

  • Hubble optics

  • Images…


Chandra x ray observatory l.jpg
Chandra X-Ray Observatory Field Image

  • The Chandra X-ray Observatory, which was launched by Space Shuttle Columbia in 1999, can better define the hot, turbulent regions of space. This increased clarity can help scientists answer fundamental questions about the origin, evolution, and destiny of the universe

From: http://www.nasa.gov/mission_pages/chandra/main/index.html



Chandra x ray observatory28 l.jpg
Chandra X-Ray Observatory Field Image

  • X-rays are produced in the cosmos when matter is heated to millions of degrees. Such temperatures occur where high magnetic fields, or extreme gravity, or explosive forces, occur.

  • Images

  • More….


Summary l.jpg
Summary Field Image

  • NASA's Great Observatories
