Integrating PeopleSoft and Oracle Collaboration Suite into uPortal

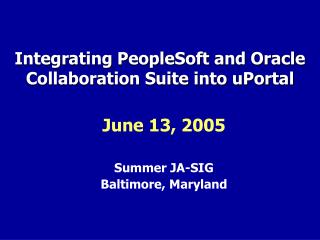

1. Integrating PeopleSoft and Oracle Collaboration Suite into uPortal June 13, 2005 Summer JA-SIG Baltimore, Maryland

2. San Luis Obispo, CA Information Technology Services Darren Kraker Ken Sperow

3. Overview • CAS implementation • PeopleSoft HR • PeopleSoft Financials • Oracle Collaboration Suite • calendar • email • Integration as uPortal channels (IFrame) • PeopleSoft Self Service links • Oracle Portlets

4. Agenda • History • PeopleSoft Impl / Integration • OCS Impl /Integration • Issues • Questions

5. Cal Poly – Who are we? • San Luis Obispo • 100 Years Old • 20,000 Students • Polytechnic University Engineering, Agriculture, Architecture, Science • “Learn by Doing”: technical and professional curricula with arts and humanities.

6. History • Live with uPortal 1.6 Fall 2001 • UNICON assisted LDAP implementation • Motivated to implement SSO • Campus introduction PeopleSoft HR • Politically / strategically required for Enterprise Portal

7. System Overview

10. Technical Specifications • CAS servers • Central Authentication Server 2.0 • Servers: Sun Netra T1 • 500 mhz, 1 GB RAM • Solaris 9 • Three servers high availability • Cisco switches provide failover

11. Technical Specifications • LDAP servers • Oracle Internet Directory: 9.2.0.6 • Servers: Sun Netra T1 • 500 mhz, 1 GB RAM • Solaris 9 • Three servers for high availability • Cisco hardware provides load balancing and failover

12. Technical Specifications • uPortal server • uPortal 2.1.4 • One server: Sun E450 • 4 - 400 mhz, 4 GB RAM • Solaris 9 • Planned upgrade to 2.5.X Fall

13. 3 Web Login Service recognizes user session 7 Username provided to application 6Application validates ticket 4 Login Service provides ticket 1 User requests access 2Browser redirected to Login Service 5Ticket provided to application 9 User gets access Web Login Service CASAuthentication Flow User interaction No user interaction User Web Application 8 Application decides if user is authorized

14. PeopleSoft • Making PeopleSoft use a central authentication service • Evaluate known solutions • Integration with CAS

15. PeopleSoft - Implementation Accept a ticket and then validate it • Make PeopleSoft accept a CAS ticket parameter as part of login • Implement PeopleCode calls Java client • CAS java client performs the CAS validation

16. PeopleSoft - Implementation Function VALIDATE_TICKET() /* rmatteso@calpoly.edu 20030122 Trusted Authentication Impl */ If %PSAuthResult = False Then &validator = GetJavaClass("PSCASClient"); /* retrieve fullUrl and ticket value from HTTP request */ &fullUrl = %Request.FullURI | "?" | %Request.QueryString; &ticket = %Request.GetParameter("ticket"); If &ticket <> "" Then /* have a ticket, load CAS client class and attempt to validate */ &cas_result = &validator.validate(&fullUrl, &ticket); If &cas_result <> "" Then /* ResultDocument (3rd parm) seems to be ignored by front end */ SetAuthenticationResult( True, &cas_result, "", False); &authMethod = "SLO"; Return; End-If; /* got username back from CAS */ End-If; /* got ticket */ End-If; /* user not yet authenticated */ End-Function;

17. PSCASClient.java URL u = new URL( validateURL + "?ticket=" + ticket + "&service=" + service); BufferedReader in = new BufferedReader( new InputStreamReader(u.openStream())); if (in == null){ return null; }else { String line1 = in.readLine(); String line2 = in.readLine(); if (line1.equals("no")){ return null; }else{ // make fully qualified username ("jdoe@calpoly.edu") // into PSFT username ("jdoe") return line2;.substring(0, line2.indexOf('@')).toUpperCase(); } } 17

18. PeopleSoft - Implementation • Configure SLO_AUTH hook in PeopleSoft Sign-on Page (Exec Auth Fail)

19. Set Exec Auth Fail PeopleCode

20. PeopleSoft - Implementation • Customize HTML files now that original sign-on page is obsolete • index.html • Logout_page.html (new) • Signin_alternate (new) • Signon.html • signonError.html (new) • Cookiesrequired.html • Modify configuration.properties to point to new HTML files • Install CAS client jar, class files

21. Issues It’s never that easy . . . • Service URL we use for CAS had to contain userid/pwd parameter • PeopleSoft cookies • After PTools upgrade (2003) HTTP GET no longer worked, POST required

22. uPortal Integration The next step . . . deep linking • More direct and intuitive method for accessing services • Add embedded PeopleSoft content within an IFrame using nested URL

25. OracleCollaborationSuite(OCS) • What is OCS? • “Oracle Collaboration Suite is an integrated database-based email, voicemail, calendaring, web-based meeting, files and search capability that is accessible via all of the interfaces that you currently know and use.”

26. Oracle Collaboration Suite (OCS) Objectives • uPortal entry point for Email and Calendar • Making OCS use a central authentication service • Integration with CAS

27. Logical Architecture

28. Hardware - Illustration Tier 1 : Infrastructure 2 Node (Red Hat Cluster Server) Tier 3 : Database 4 Node Oracle RAC 9.2.0.4 Tier 2 : Application MT 4 Nodes + BI 1 Node Tier 2 : Calendar 2 Node Dell Power 6650 4 * 2.8 GHz 16 GB RAM 2 * 36GB HD 2* GIG-E NIC Dell Power Edge 2650 2 * 2.8 GHz 2 GB RAM 2 * 36GB HD 2* 73 GB HD 2* GIG-E NIC HBA ’s (to EMC) Dell Power Edge 6650 4 * 2.8 GHz 16 GB RAM 2 * 36GB HD 4* GIG-E NIC 9iRAC HBA ’s (to EMC) Dell Power Edge 2650 2 * 2.8 GHz 4 GB RAM 2 * 36GB HD 3* GIG-E NIC HBA ’s (to EMC) Storage: EMC DMX1000

29. Web Outlook Calendar OCS, Central Authentication & uPortal CorporatePortal (uPortal) Other Campus Applications (SCT, PeopleSoft Etc..) Oracle Portal Central AuthenticationServices OCS Infrastructure (Shared between OCS and BI) OCS Middle Tier Oracle BI Middle Tier OCS DB 9.2.0.5 BI DB

30. Oracle Collaboration Suite (OCS) Integration • Objectives • uPortal entry point for Email and Calendar • SSO • uPortal channels - simplified view of Email and Calendar • Ability to render Oracle Portlets within uPortal

31. OCS Integration - Solutions • uPortal entry point ---> CAS-enable OCS • uPortal channels ---> Custom channels - Oracle’s APIs? • Query DB ---> Pre-existing Oracle Portlets • Oracle Portlets • “External JSP” • Direct URL

32. CAS Enabling OCS • Oracle SSO • Web based applications • Integrates with external login source • Solution required the use of cookies • All code written in PL/SQL • Requires Oracle Internet Directory (OID) • Users must be populated in OID • FERPA

35. 8OSSO validates ticket 9Username provided to OSSO 3Oracle SSO authentication required 4Browser redirected to Web Login Service 7Ticket provided to OSSO 6Login Service provides ticket for OSSO 5Web Login Service authentication required 13Username provided to application 12Application validates ticket 10Oracle SSO ticket provided for application 1User requests access 2Browser redirected to Oracle SSO 11OSSO Ticket provided to application 15User gets access Web Login Service Oracle SSO User Oracle Web Application 14 Application decides if user is authorized

36. OCS - Rendering Oracle Portlets • External JSP • Makes a portlet available through a JSP • Not well documented • Is not supported in a “Partial SSL configuration” • uPortal Inline Frame points to external JSP

37. OCS - Rendering Oracle Portlets • Direct Access URL • Access to Oracle Portal page through user-friendly URL • Create Oracle Portal Page • No header/border/template • Put portlet on page • Attach stylesheet to page • Point uPortal Inline frame to URL

39. OCS - Rendering Oracle Portlets (cont.) • Authorization • Control access to uPortal channels through Groups?? • Needed way to restrict access to Oracle page • Solution: Pull groups tables into OID nightly

40. OCS Integration Issues • ISSUE: When users subscribe to more than one channel containing Oracle Portlet content, the channel may respond with browser error messages resulting in no content displayed. • ROOT CAUSE: This problem is a result of multiple uPortal channels attempting to establish an Oracle Portal session at the same time.

41. OCS Integration Issues (cont.) • Possible Solutions • Introduce a Delay with Consecutive Page Requests. • Introduce an Intermediate Page at CAS Login. • Send all requests through a singlethreadedservlet.

42. CAS Enabling OCS Resources • Oracle9iAS Single Sign-On Administrator's Guide • Release 2 (9.0.2) • Part Number A96115-01 • Chapter 5 - Third-Party Single Sign-On • Chapter 8 - Customizing the Single Sign-On Interface • Metalink Documents: • Note:191299.1 • Note:244557.1 • Note:191345.1

43. Statistics on Usage • PeopleSoft Applications: • HR total accounts: 2,500 (admin accounts: 700) • Concurrent users average: 22 (high 75) • Finance total admin accounts: 700 • Concurrent users average: 23 (high 95) • Single Sign-on Unique Users per month: • Approx: 12,000 - 28,000 • Average: 20,000 (including summer quarters) • Single Sign-on Uniqueusersper DAY • Maximum: 14,000 • Average: 5,700   • Single Sign-on Concurrent users of the Portal: High: 2,800

44. Statistics on Usage • Single clicks to HR PRD and FS PRD per month • 2,200 – 6,100 • Average: 4,200 (including summer quarters) • Single Sign-on Outages • Unplanned: Less than 1/2 hour per month • Planned: • 4 hours/month • Updates, new application rollouts • Users CAN authenticate to PS and other applications

45. References • CAS http://www.yale.edu/tp/cas/ • This Presentation, Cal Poly’s documents and code on CAS Enabling OCS, and PeopleSoft Single Sign-on Guides http://myportal.calpoly.edu/downloads • PeopleBooks

46. Questions? • Ken Sperow Software Engineer ksperow@calpoly.edu • Dan Malone Oracle SSO dmalone@calpoly.edu • Darren Kraker Software Engineer dkraker@calpoly.edu • Ryan Matteson Web Architect and Info Security Manager rmatteso@calpoly.edu • Melinda Rojo Oracle Portal Integration mrojo@calpoly.edu
